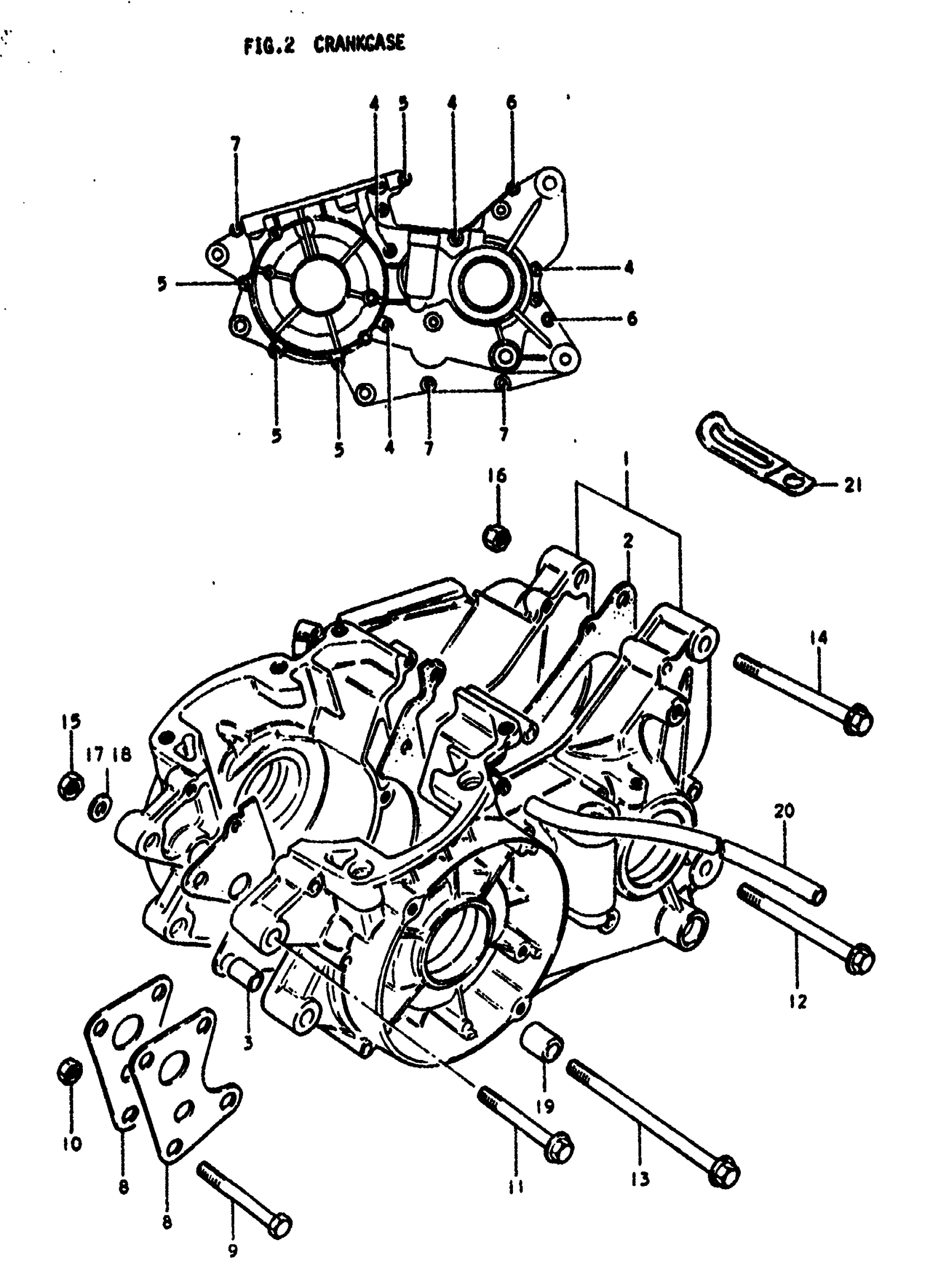

Suzuki RM400 (1979) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 7 This part replaces 11300-40820.

11300-40821

Unavailable

2

GASKET

11481-40400

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06658.

02112-06657

$2.62

5

SCREW

02112-06557

$2.53

6

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

7

SCREW This part replaces 02112-06358.

02112-06357

$1.78

8

PLATE, ENGINE MOUNTING

41991-40400

Unavailable

9

BOLT | 8x70

09103-08037

$5.57

10

NUT This part replaces 08319-31088.

08319-3108A

$2.32

11

BOLT, NO.1 | 8x70

09103-08037

$5.57

12

BOLT (8X100) | 8x100 This part replaces 09103-08009.

09103-08070

$5.57

13

BOLT 8X195 | 8x195 This part replaces 09103-08036.

09103-08187

Unavailable

14

BOLT, LH OUTER (10X100) | 10x100 This part replaces 09103-10016.

09103-10110

$8.43

15

NUT This part replaces 08319-31068.

08319-31067

$2.03

16

NUT This part replaces 08319-31108.

08319-31107

$2.73

17

WASHER

09169-10011

Unavailable

18

WASHER

09169-10012

Unavailable

19

SPACER | 8.6x16x26

09180-08080

$4.66

20

HOSE | 5x8x390 This part replaces 09343-05021.

09352-50005-00B

$13.93

21

CLAMP This part replaces 09404-06402.

09404-06039

$1.74
