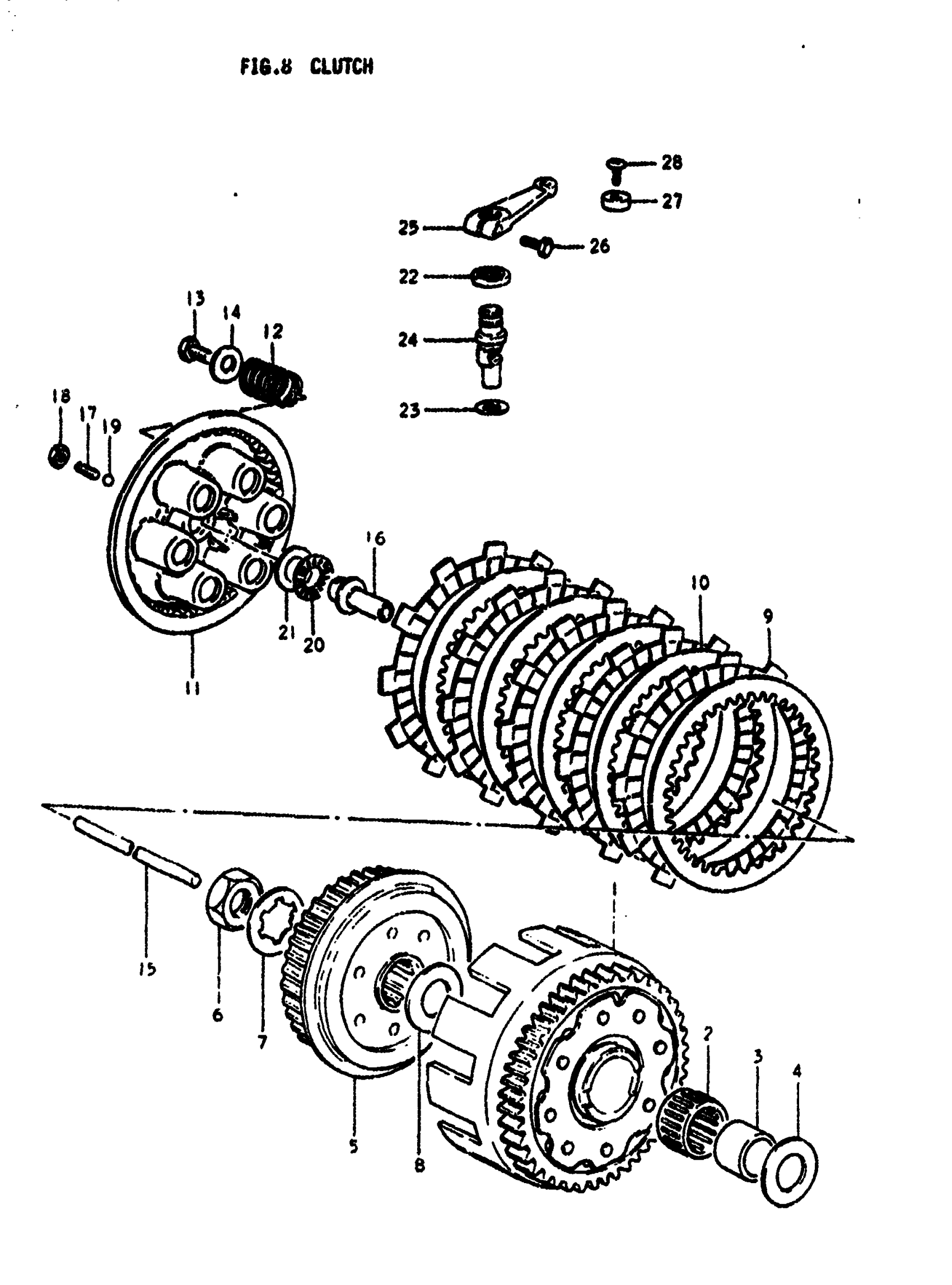

Suzuki RM400 (1979) CLUTCH Diagram

GEAR ASSY, PRIMARY DRIVEN

21200-40400

Unavailable

BEARING

09263-30007

$22.40

SPACER | 22x30x20

09180-22008

Unavailable

WASHER (22X44X2.0) | 22x44x2 This part replaces 09160-22012.

09160-22068

$10.72

HUB, SLEEVE

21411-40400

Unavailable

NUT

09140-22005

$3.87

WASHER | 18.5x40x0.8

09167-22005

$2.11

WASHER (22X44X2.0) | 22x44x2 This part replaces 09160-22012.

09160-22068

$10.72

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40400.

21441-37400

$18.13

PLATE, CLUTCH DRIVEN This part replaces 21451-40001.

21451-31000

$10.40

PLATE, PRESSURE This part replaces 21462-16500.

21462-14301

$59.33

SPRING

09440-19007

$2.52

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

ROD,CLUTCH PUSH,L This part replaces 23111-39101.

23111-15501

$13.30

PIECE, CLUTCH PUSH This part replaces 23121-40300.

23121-38201

$26.73

SCREW This part replaces 09134-06001.

09134-06010

$3.12

.NUT This part replaces 08310-22068.

08310-00067

$2.13

STEEL BALL

06111-08003

$1.49

THRUST BEARING

09263-15003

$8.29

WASHER, CLUTCH PUSH | 15x28x1 This part replaces 09160-15015.

09160-15045

$3.89

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

WASHER (14.5X22X1) | 14.2x22x1 This part replaces 09160-14003.

09160-14054

$2.07

CAMSHAFT, RELEASE This part replaces 23122-40400.

23122-40902

Unavailable

ARM, CREASE

23271-40000

Unavailable

BOLT This part replaces 01107-06208.

01500-06207

$2.28

STOPPER

23281-40300

Unavailable

SCREW This part replaces 02152-06168.

02112-16167

$3.15
