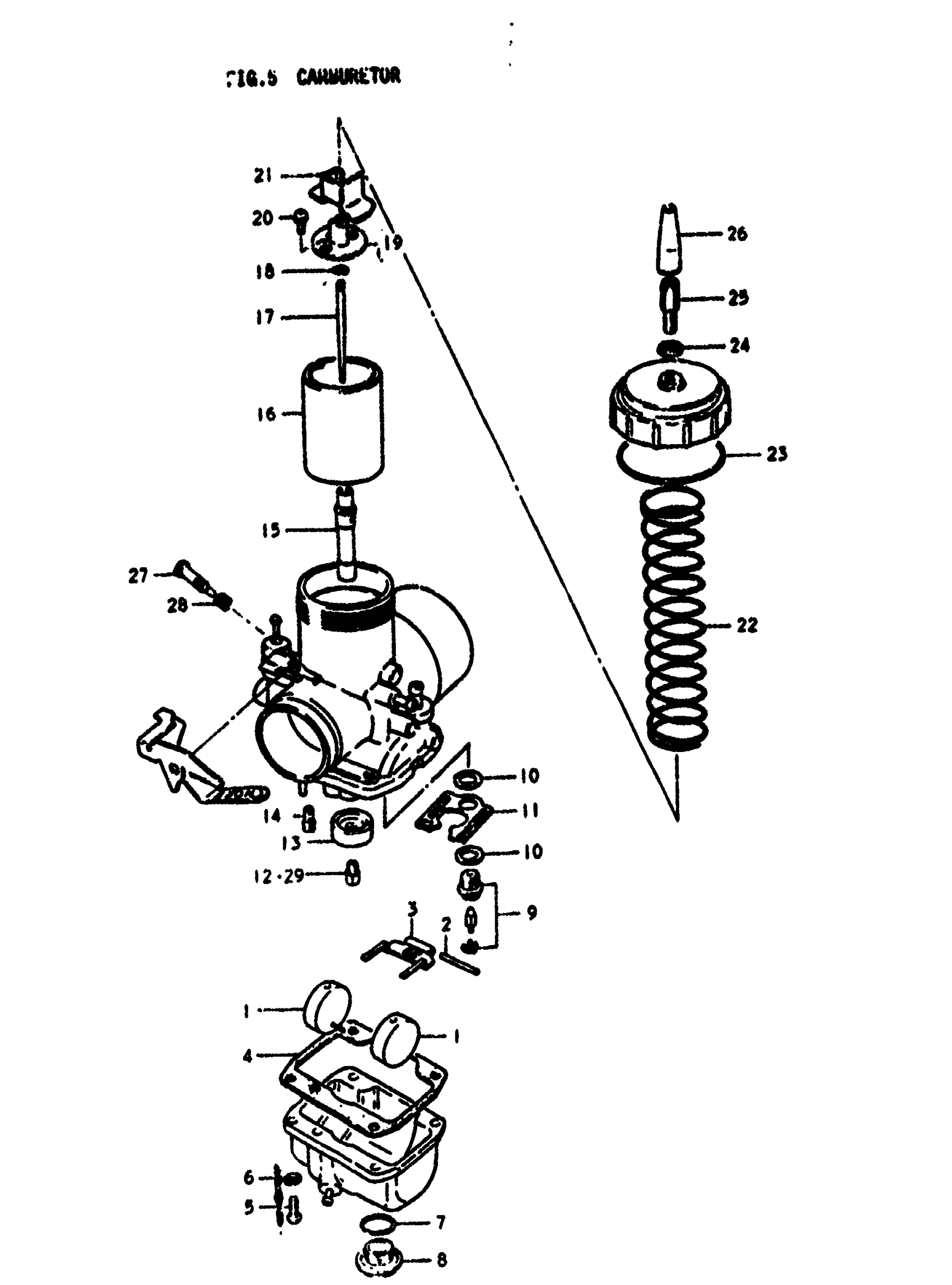

Suzuki RM400 (1979) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR | Includes Item(s) 1 - 29

13200-40400

Unavailable

1

FLOAT

13252-18620

$21.82

2

.PIN, FLOAT

13254-01010

$3.62

3

ARM, FLOAT CHAMBER

13253-40010

Unavailable

4

GASKET

13251-40600

Unavailable

5

SCREW This part replaces 02112-05168.

02112-05167

$1.97

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

7

O RING This part replaces 13294-40110.

09280-20003

$2.30

8

PLUG, DRAIN

13247-40200

Unavailable

9

VALVE ASSY, NEEDLE This part replaces 13370-40010.

13370-16600

Unavailable

10

GASKET

13392-16600

$1.94

11

PLATE, FROAT CHAMBER

13259-40011

Unavailable

12

JET, MAIN (270) | #270 This part replaces 09491-54001.

09491-54002

Unavailable

13

RING

13331-16510

Unavailable

14

JET, PILOT | #50

09492-50010

Unavailable

15

NOZZLE, NEEDLE | R-6

09494-00251

Unavailable

16

VALVE, THROTTLE | CA:2.5

13551-41750

Unavailable

17

NEEDLE, JET | 6FJ6-3

13383-16510

Unavailable

18

CLIP

13394-10010

$5.45

19

CONNECTOR

13581-40200

Unavailable

20

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

21

COVER

13629-40200

Unavailable

22

SPRING

13573-41610

Unavailable

23

O RING

13266-41750

Unavailable

24

NUT

13661-16600

$4.64

25

ADJUSTER, CABLE

13577-41612

$7.01

26

BOOT

13681-33010

$9.32

27

SCREW, PILOT AIR

13269-15010

Unavailable

28

SPRING

13268-01010

$5.28

29

JET. MAIN (240) | #240 OPT This part replaces 09491-48001.

09491-48003

Unavailable

29

JET, MAIN (250) | #250 OPT This part replaces 09491-50003.

09491-50008

Unavailable

29

JET, MAIN | #260 OPT This part replaces 09491-52001.

09491-52006

$10.38

29

JET, MAIN (280) | #280 OPT This part replaces 09491-56001.

09491-56003

Unavailable

29

JET, MAIN (290) | #290 OPT This part replaces 09491-58001.

09491-58002

Unavailable
