1977 Suzuki RM370 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1977 Suzuki RM370, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

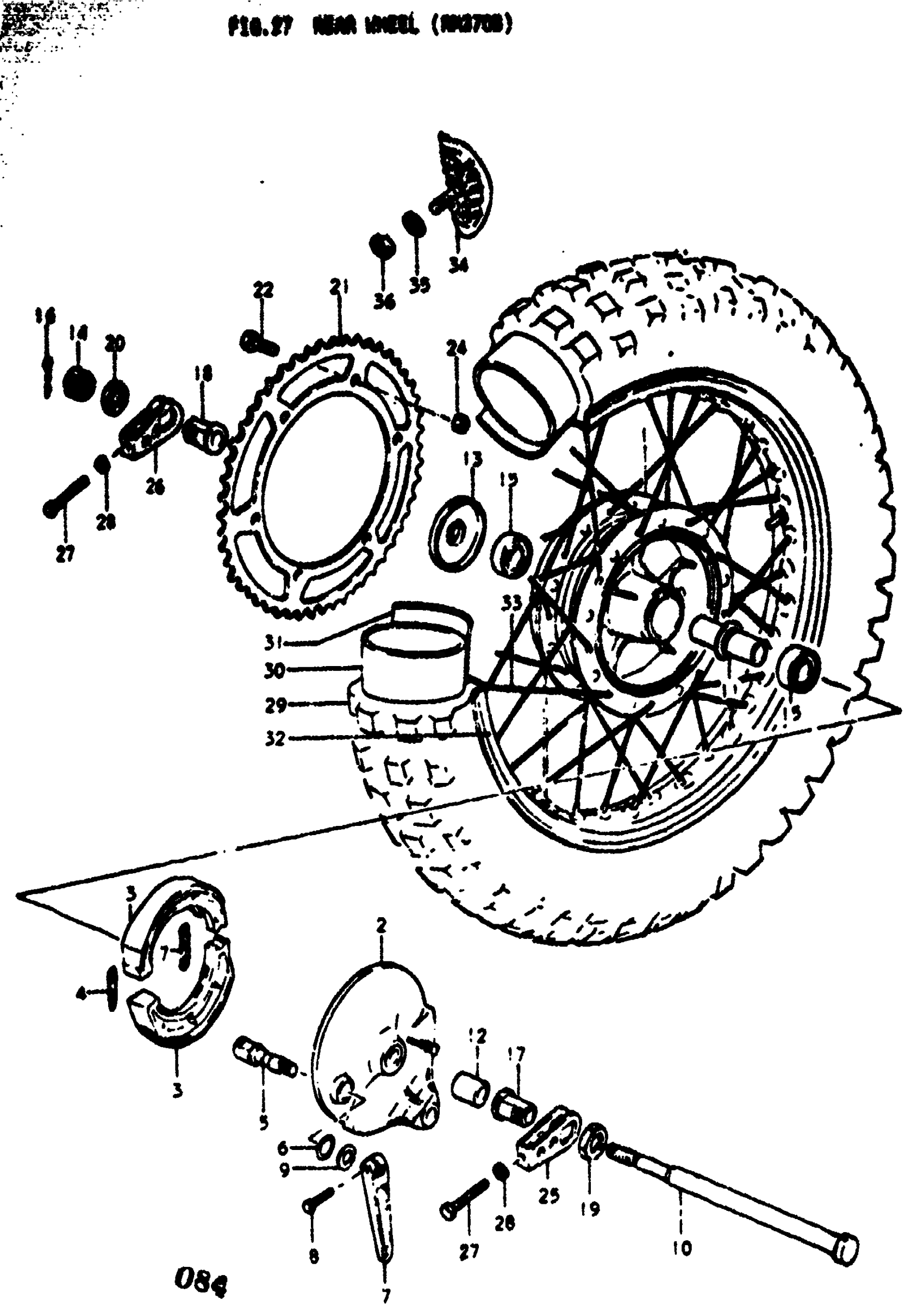

1977 Suzuki RM370 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM, REAR HUB

64110-41602

1
Out of stock

1

REAR HUB DRUM SET | OPT MATERIAL:MAGNESIUM

64100-41820

1
Out of stock

2

PANEL, REAR HUB

64210-41103

1
Out of stock

2

PANEL, REAR HUB | OPT MATERIAL:MAGNESIUM

64210-41701

—
Out of stock

3

SHOE SET, REAR BRAKE This part replaces 54410-08002.

64400-02830

2
Out of stock

4

SPRING

55420-41100

2
Out of stock

5

CAM, REAR BRAKE This part replaces 54441-08001.

54440-08004

1
Out of stock

6

DUST SEAL

09208-15001

—
Out of stock

7

LEVER, BRAKE CAM

54451-41100

1
Out of stock

8

BOLT This part replaces 01112-06258.

01500-06257

1
Out of stock

9

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

1
Out of stock

10

AXLE, REAR

64711-41100

1
Out of stock

11

SPACER, HUB BEARING

64730-41101

1
Out of stock

12

SPACER, AXIE RH

09180-17044

1
Out of stock

13

SPACER, AXIE LH

64750-41102

1
Out of stock

14

NUT This part replaces 08314-31148.

08314-3114A

1
Out of stock

15

BEARING This part replaces 08123-62034.

08133-6203B

2
Out of stock

16

PIN This part replaces 04111-30408.

04111-3040A

1
Out of stock

17

SPACER, CHAIN ADJUSTER RH

64781-41100

1
Out of stock

18

SPACER, CHAIN ADJUSTER LH

64791-41100

1
Out of stock

19

NUT

09140-24007

1
Out of stock

20

NUT

09140-22006

1
Out of stock

21

NO DESCRIPTION AVAILABLE | NT:50 This part replaces 64511-41130.

64511-41131

1
Out of stock

22

SCREW This part replaces 09120-08003.

09120-08004

6
Out of stock

24

NUT

09159-08021

6
Out of stock

25

ADJUSTER, CHAIN RH

61420-41100

1
Out of stock

26

ADJUSTER, CHAIN LH

61410-41100

1
Out of stock

27

BOLT (8X50) This part replaces 09104-08006.

09104-08034

2
Out of stock

28

NUT This part replaces 08312-11088.

08310-00087

2
Out of stock

29

TIRE (51018) | 4.50-18 This part replaces 65100-41610.

65100-14230

1
Out of stock

30

TUBE, INNER | 4.60-18 This part replaces 65200-41110.

65200-16510

1
Out of stock

31

PROTECTOR, INNER TUBE | 25x18 This part replaces 65261-16510.

65261-33030

1
Out of stock

32

RIM, WHEEL | 2.15x18

65311-41220

1
Out of stock

33

NO DESCRIPTION AVAILABLE This part replaces 65300-41850.

65300-41851

1
Out of stock

34

STOPPER, BEAD This part replaces 65270-32101.

65270-28E00

2
Out of stock

35

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

36

NUT This part replaces 08312-11088.

08310-00087

2
Out of stock
