Find the part on the Rear Wheel diagram for your 1977 Suzuki RM370, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

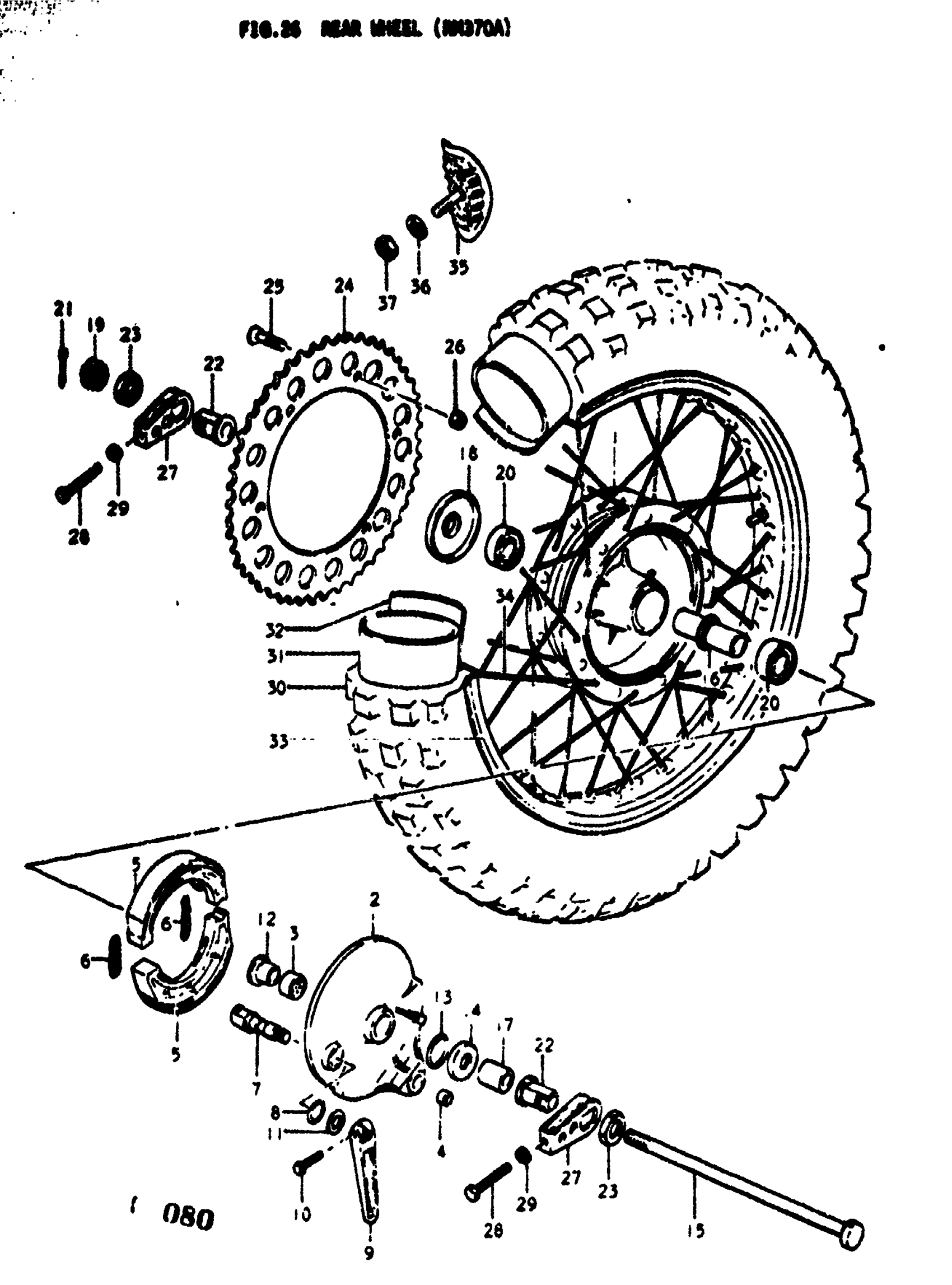

1977 Suzuki RM370 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM, REAR HUB | FROM 64110-41000

64110-41601

1
Out of stock

1

REAR HUB DRUM SET | OPT MATERIAL:MAGNESIUM

64100-41810

—
Out of stock

2

PANEL, REAR HUB | TO 64210-41102

64210-41101

—
Out of stock

2

PANEL, REAR HUB | F.NO.14198

64210-41102

1
Out of stock

2

PANEL, REAR HUB | OPT MATERIAL:MAGNESIUM

64210-41700

—
Out of stock

3

BUSH

09304-20014

1
Out of stock

4

BUSH

64241-41100

1
Out of stock

5

SHOE SET, REAR BRAKE This part replaces 54410-08002.

64400-02830

2
Out of stock

6

SPRING

55420-30000

2
Out of stock

6

SPRING

55420-41100

2
Out of stock

7

CAM, REAR BRAKE This part replaces 54441-08001.

54440-08004

1
Out of stock

8

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

9

LEVER, BRAKE CAM

54451-41100

1
Out of stock

10

BOLT This part replaces 01112-06258.

01500-06257

1
Out of stock

11

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

1
Out of stock

12

BUSH

09301-15001

1
Out of stock

13

O RING

09280-32004

—
Out of stock

14

COVER

64852-41100

1
Out of stock

15

NO DESCRIPTION AVAILABLE This part replaces 64711-32100.

64711-32101

1
Out of stock

16

SPACER, HUB BEARING

64730-41100

1
Out of stock

17

SPACER, AXIE RH

09180-15040

1
Out of stock

18

SPACER, AXIE LH

64750-41101

1
Out of stock

19

NUT This part replaces 08314-31148.

08314-3114A

1
Out of stock

20

BEARING This part replaces 08123-63020.

08123-6302B

2
Out of stock

21

PIN This part replaces 04111-30408.

04111-3040A

1
Out of stock

22

SPACER, CHAIN ADJUSTER

64791-41100

2
Out of stock

23

NUT

09140-22006

2
Out of stock

24

NO DESCRIPTION AVAILABLE | NT:90 This part replaces 64511-40731.

64511-41131

1
Out of stock

25

SCREW This part replaces 09120-08003.

09120-08004

1
Out of stock

26

NUT

09159-09021

—
Out of stock

27

ADJUSTER, CHAIN

61410-41100

2
Out of stock

28

BOLT (8X50) This part replaces 09104-08006.

09104-08034

2
Out of stock

29

2

$1.93

In stock

30

TIRE (51018) | 4.60-18 This part replaces 65100-41110.

65100-14230

1
Out of stock

31

TUBE, INNER | 4.60-18 This part replaces 65200-41110.

65200-16510

1
Out of stock

32

PROTECTOR, INNER TUBE | 25x18 This part replaces 65261-16510.

65261-33030

1
Out of stock

33

RIM, WHEEL | 2.15x18 This part replaces 65311-41120.

65311-41220

1
Out of stock

34

NO DESCRIPTION AVAILABLE This part replaces 65300-41811.

65300-41851

1
Out of stock

35

STOPPER, BEAD This part replaces 65270-32101.

65270-28E00

2
Out of stock

36

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

37

2

$1.93

In stock
