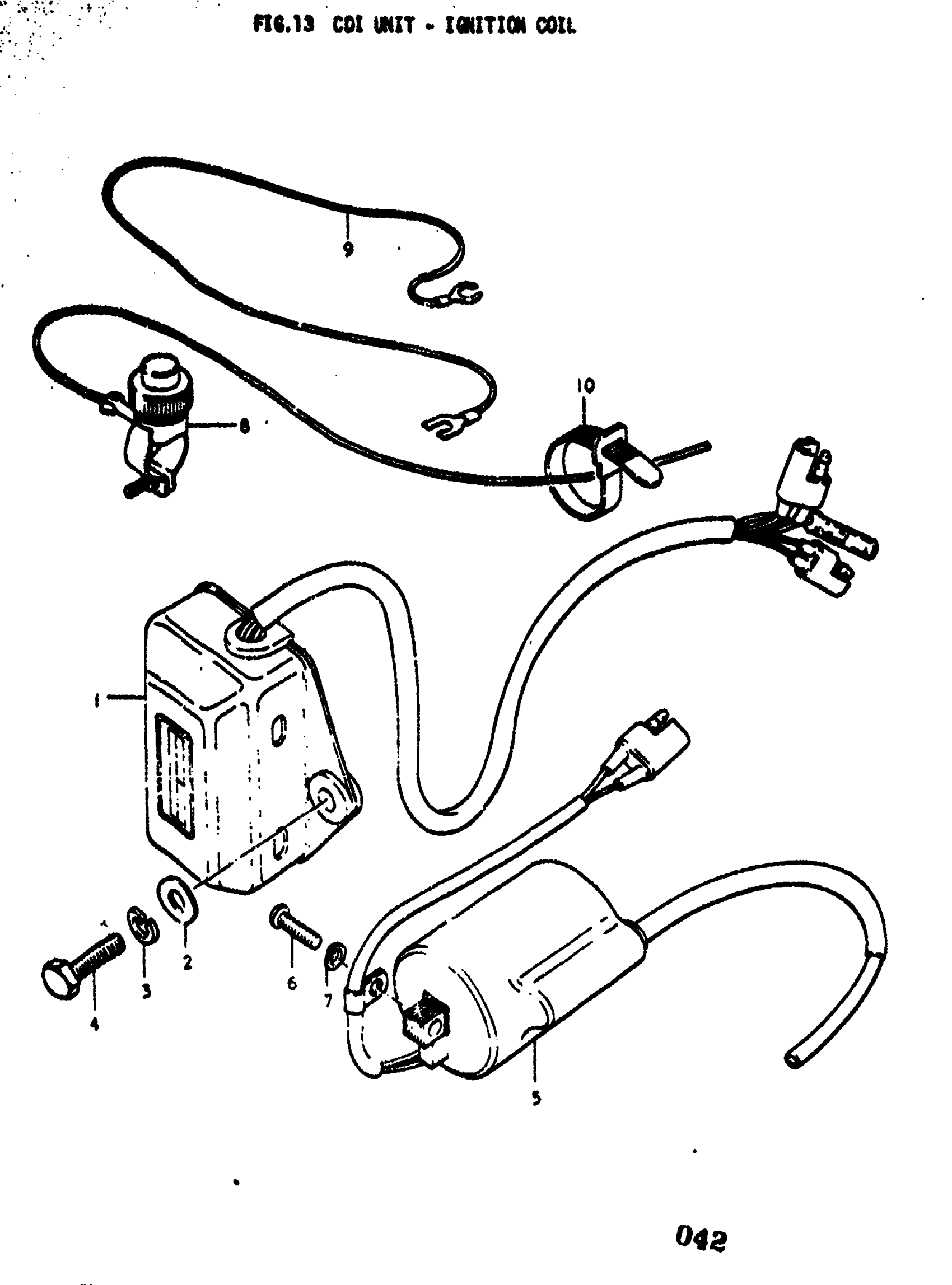

Suzuki RM370 (1977) CDI UNIT - IGNITION COIL Diagram

#

Description

Price

1

CDI UNIT ASSY | A

32900-41110

Unavailable

1

CDI UNIT ASSY | B

32900-41111

Unavailable

2

WASHER | A,B; 6.5x16x1.2

09160-06019

$1.38

3

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$1.83

4

BOLT | A,B This part replaces 01112-06208.

01500-06207

$1.99

5

COIL ASSY, IGNITION | A,B

33410-28600

Unavailable

6

SCREW | A,B This part replaces 02111-05207.

02112-05207

$1.97

7

LOCK WASHER | A,B This part replaces 08321-21058.

08321-0105A

$1.83

8

SWITCH ASSY, ENGINE STOP | A,B This part replaces 37820-16512.

37820-14X50

$44.43

9

LEAD WIRE | A,B

36851-41200

Unavailable

10

CLAMP | A; L:120

09407-12402

$2.80
