1995 Suzuki RM250S Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 1995 Suzuki RM250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

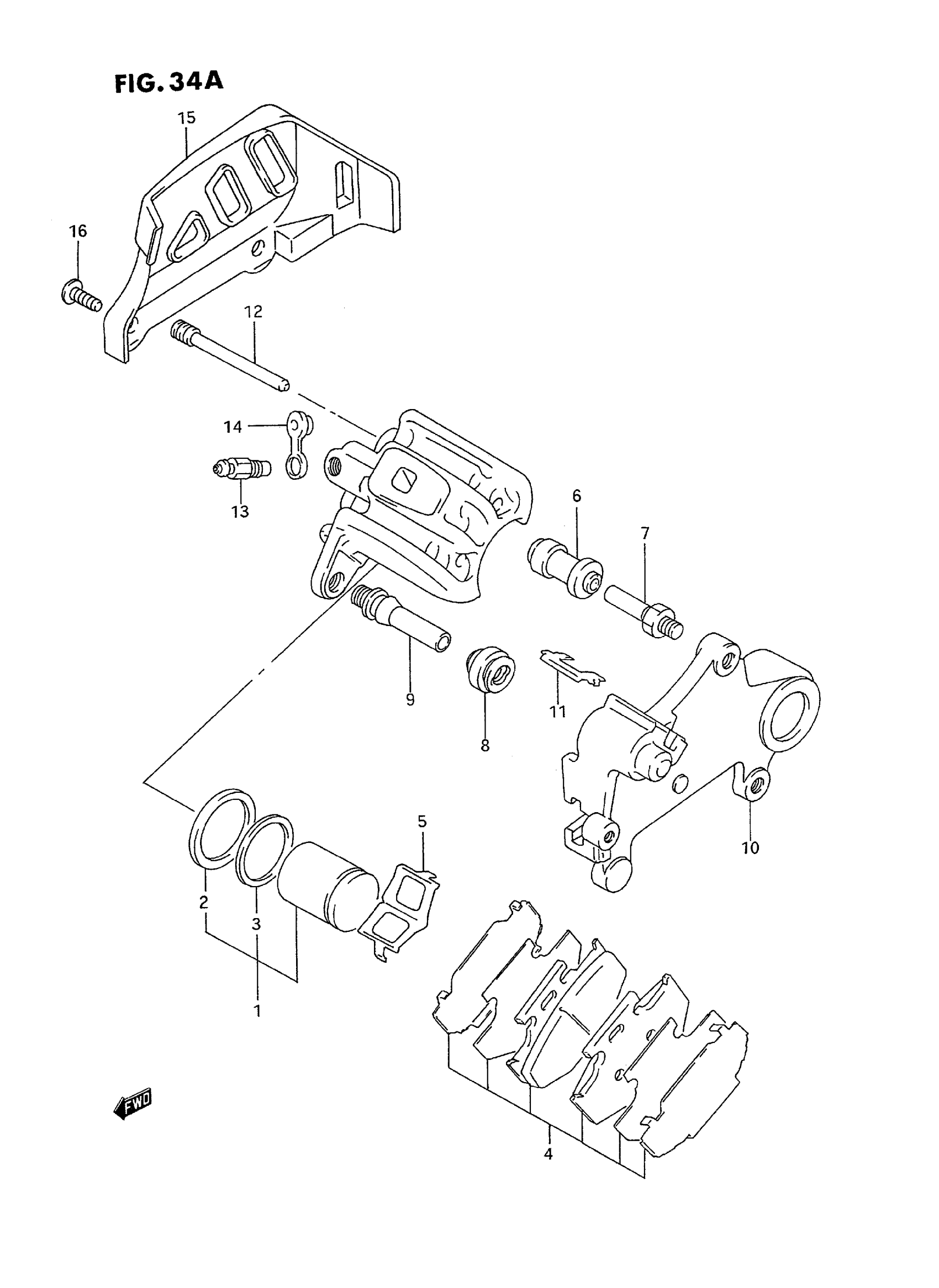

1995 Suzuki RM250S Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 14 This part replaces 69100-43D30.

69100-43D10-999

1
Out of stock

1

PISTON SET

69100-43830

1
Out of stock

2

SEAL SET, PISTON This part replaces 59107-17C00.

69100-13810

1
Out of stock

3

SEAL, DUST

59108-17C00

1
Out of stock

4

PAD SET

69100-43860

1
Out of stock

5

SPRING

59315-27C10

1

$13.20

In stock

6

BOOT

59386-13A00

1
Out of stock

7

PIN

59382-14500

1

$9.18

In stock

8

BOOT

59303-14500

1
Out of stock

9

PIN

59305-27C00

1

$26.52

In stock

10

BRACKET

69351-43D01

1
Out of stock

11

RETAINER

69113-43D00

1
Out of stock

12

.PIN HANGER

69345-43D00

2

$15.33

In stock

13

BLEEDER

59121-01A00

1
Out of stock

14

CAP

59122-01A00

1
Out of stock

15

GUARD, CALIPER

69725-27C30

1
Out of stock

16

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock
