Description

Price

1

PEDAL, BRAKE

43110-43D00

$17.32

2

ARM, REAR BRAKE | MODEL P This part replaces 43120-28E00.

43120-28E10

Unavailable

2

ARM, REAR BRAKE | MODEL R/S; Includes Item(s) 3

43120-28E10

Unavailable

3

DUST SEAL

09284-15006

$3.31

4

PIN

09200-06062

$2.19

5

SPRING

09444-11006

$3.01

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.25

7

SHAFT, BRAKE PEDAL

43142-27C00

$22.07

8

WASHER

08211-10261

$2.10

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

10

SPRING This part replaces 09443-11039.

09443-11039-XC0

$3.90

11

BOLT

09100-06009

$1.79

12

.NUT | MODEL P/R This part replaces 08310-11068.

08310-00067

$1.91

12

NUT | MODEL S This part replaces 08310-00063.

08310-0006A

$1.89

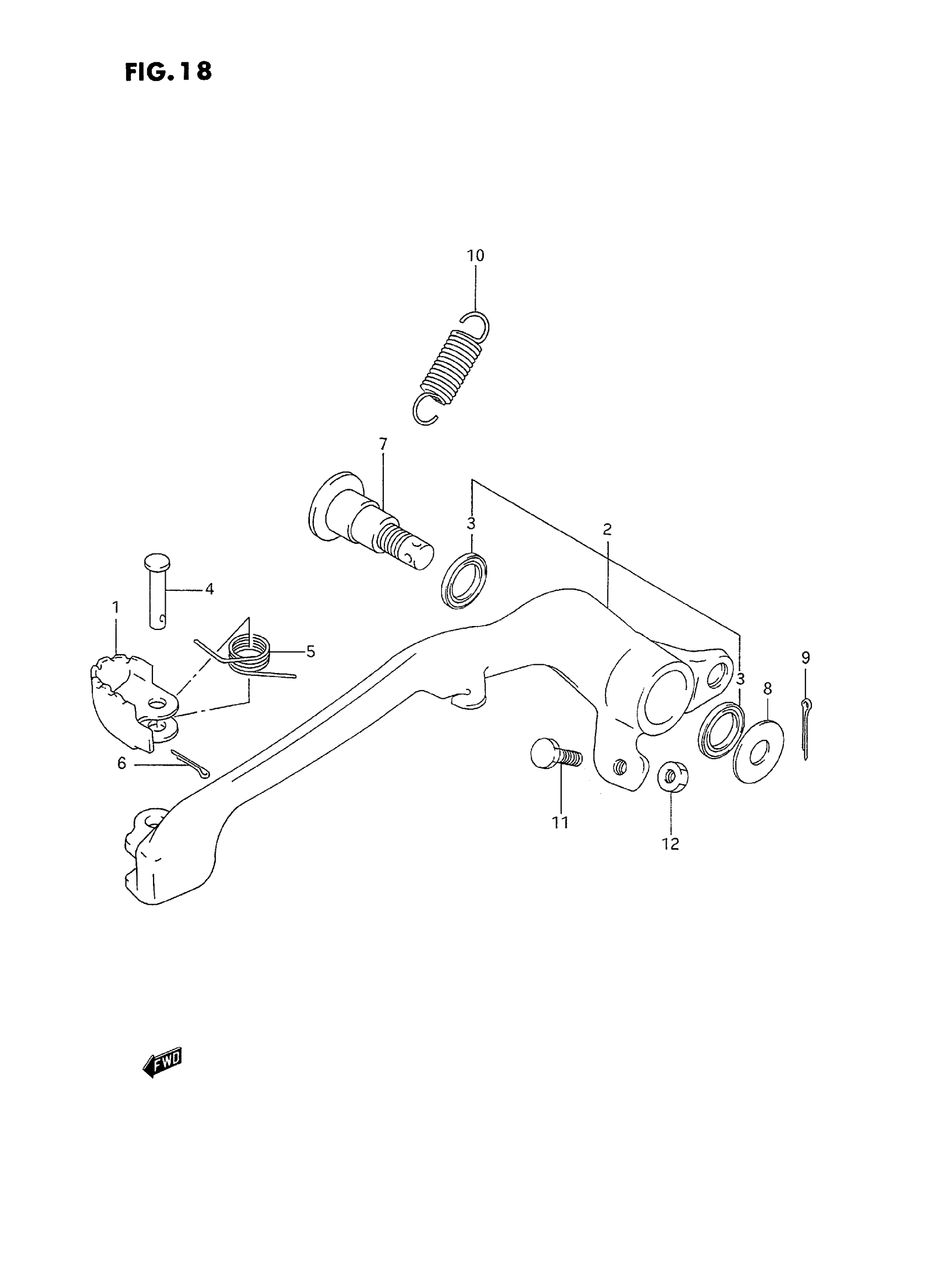

Suzuki RM250S (1995) REAR BRAKE Diagram
