1995 Suzuki RM250S Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 1995 Suzuki RM250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

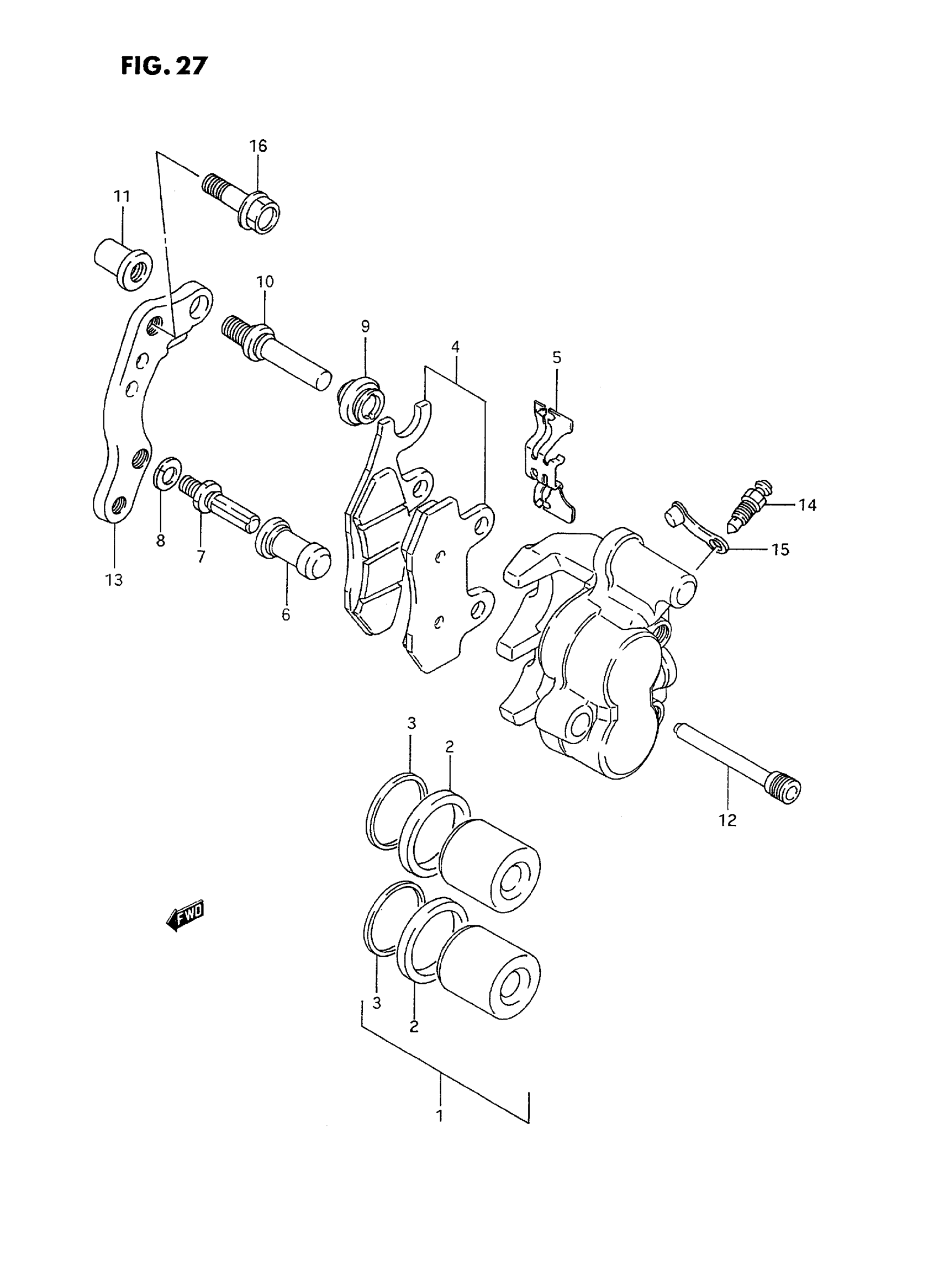

1995 Suzuki RM250S Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY,FR | MODEL P This part replaces 59300-27C20.

59300-27C11-999

1
Out of stock

CALIPER ASSY,FR | MODEL R; Includes Item(s) 1 - 15 This part replaces 59300-27C30.

59300-27C11-999

1
Out of stock

1

PISTON SET

59300-27840

1

$49.57

In stock

2

2

$9.26

In stock

3

DUST SEAL

59108-00B20

2
Out of stock

4

PAD SET | MODEL P

59300-27860

1
Out of stock

4

PAD SET | MODEL R

59300-27810

1
Out of stock

5

SPRING This part replaces 59315-27C20.

59315-27C30

1
Out of stock

6

BOOT

59386-13A00

1
Out of stock

7

BOLT | MODEL P

59382-13A00

1
Out of stock

7

BOLT | MODEL R

59382-27C30

1

$9.31

In stock

8

WASHER | MODEL P

59314-13A00

1
Out of stock

8

WASHER | MODEL R

59314-27C30

1
Out of stock

9

BOOT

59303-14500

1
Out of stock

10

PIN

59387-00B20

1
Out of stock

11

NUT

59388-00B20

1
Out of stock

12

PIN

59345-00B20

2

$14.56

In stock

13

BRACKET

59351-00B20

1

$87.92

In stock

14

BLEEDER

59121-01A00

1
Out of stock

15

CAP

59122-01A00

1
Out of stock

16

BOLT | MODEL P

09103-08157

2
Out of stock

16

BOLT | MODEL R This part replaces 59389-28E00.

09103-08157

2
Out of stock

17

REFER TO FIG.27A(E-8) FOR

SPECIAL NOTE

—
Out of stock
