2008 Suzuki RM250 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2008 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

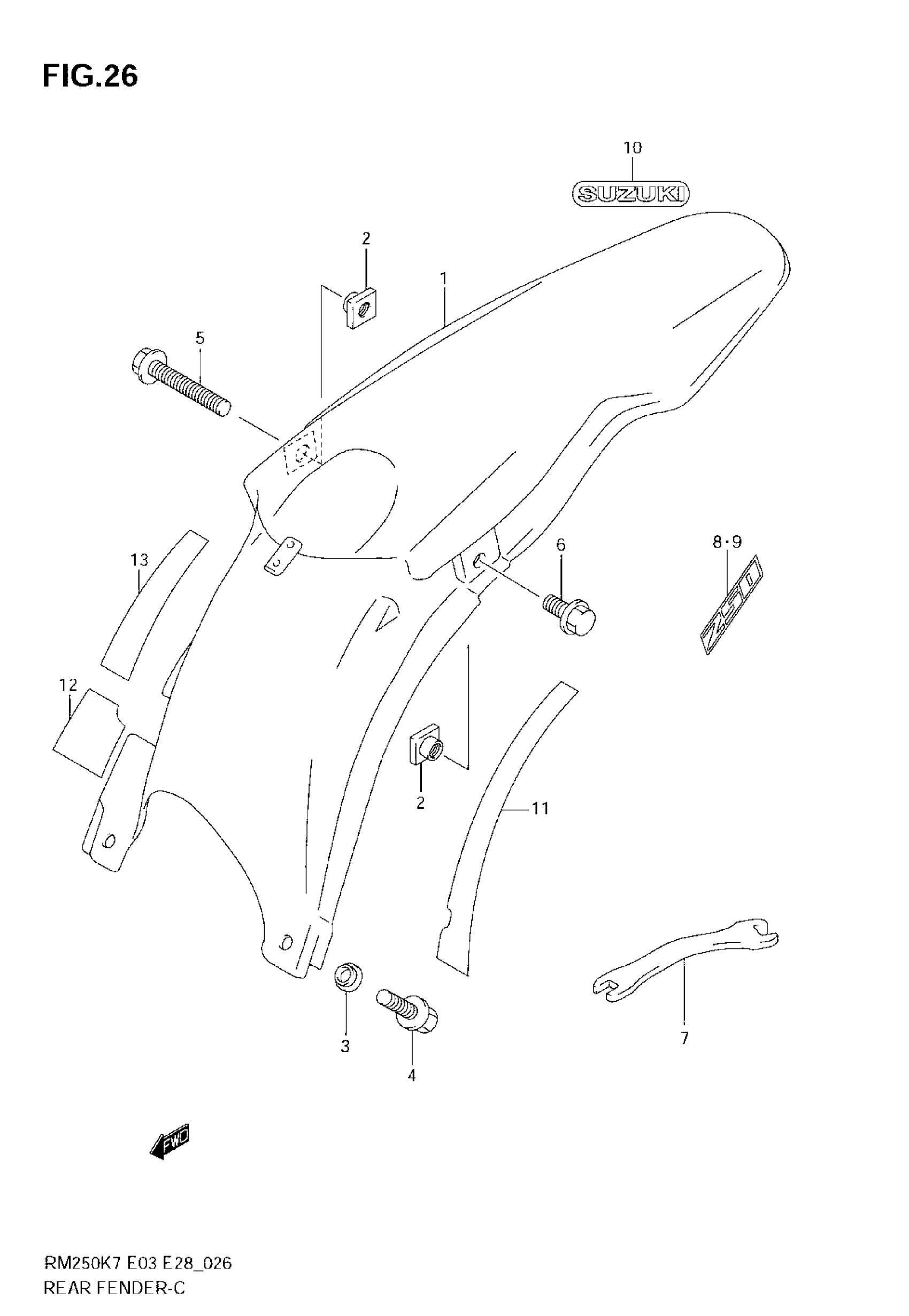

2008 Suzuki RM250 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (YELLOW)

63111-37F00-YU1

1
Out of stock

2

NUT, REAR FENDER

09152-06024

2
Out of stock

3

WASHER

69232-37F01

2
Out of stock

4

BOLT This part replaces 09103-06235.

01547-06207

2
Out of stock

5

BOLT, RH

09103-06252

1
Out of stock

6

BOLT, LH

09103-06234

1
Out of stock

7

SPANNER (6.4X6.8)

09813-00134

1
Out of stock

8

TAPE, REAR FENDER RH

68175-37F20-GY8

1
Out of stock

9

TAPE, REAR FENDER LH

68176-37F20-GY8

1
Out of stock

11

CUSHION, NO.1

63114-37F00

1
Out of stock

12

CUSHION, NO.2

63114-37F10

1
Out of stock

13

CUSHION, NO.3

63114-37F20

1
Out of stock
