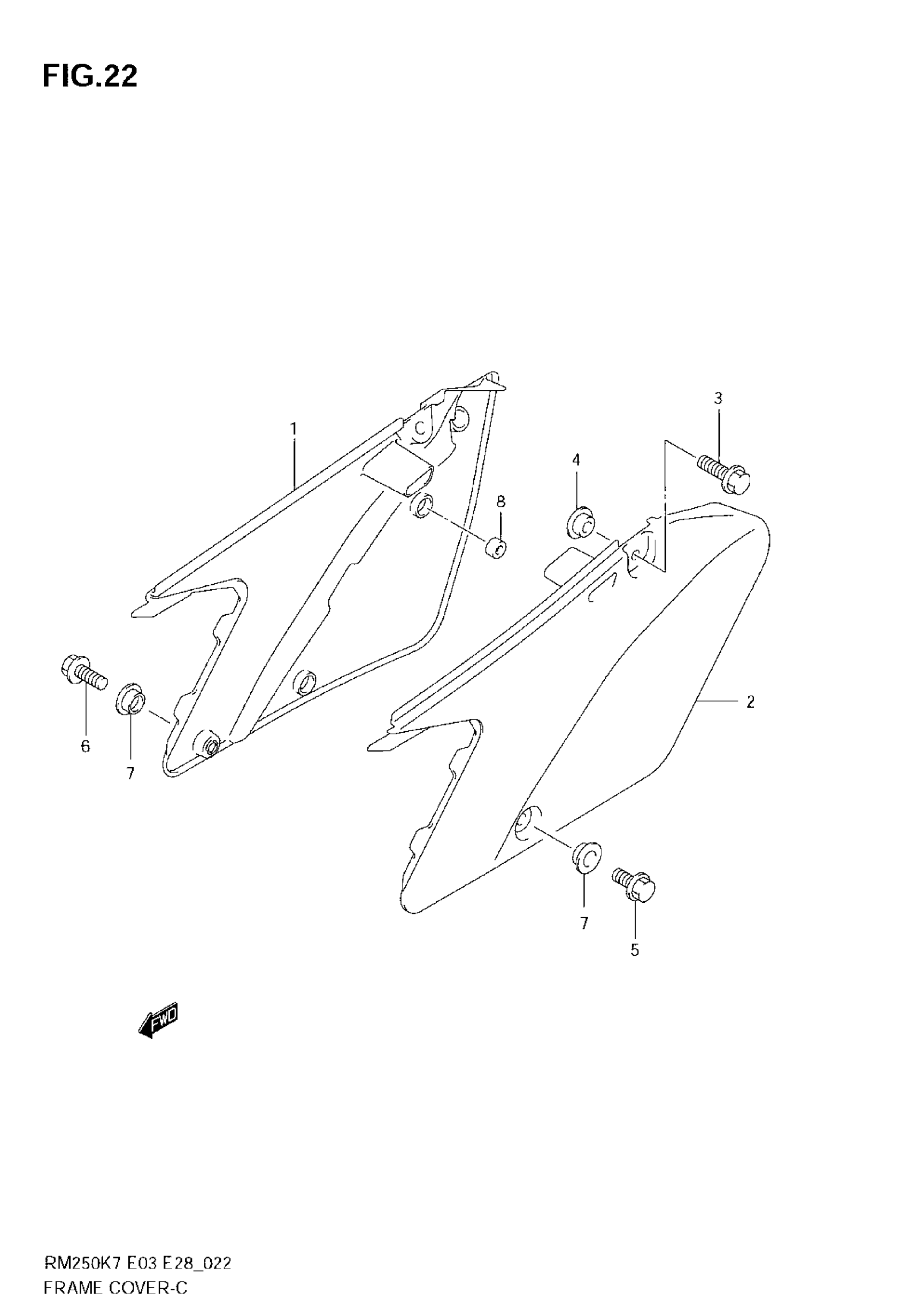

Suzuki RM250 (2008) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE)

47111-36F20-30H

Unavailable

2

COVER, FRAME LH (WHITE)

47211-36F20-30H

$98.52

3

BOLT, SEAT

09116-06188

$2.25

4

WASHER, SEAT

53112-37F01

$10.58

5

BOLT, FRONT LH

09103-06233

$2.18

6

BOLT, FRONT RH

09103-06234

$2.17

7

WASHER, FRONT

69232-37F01

$7.60

8

CUSHION, RH

47161-37F00

$9.47
