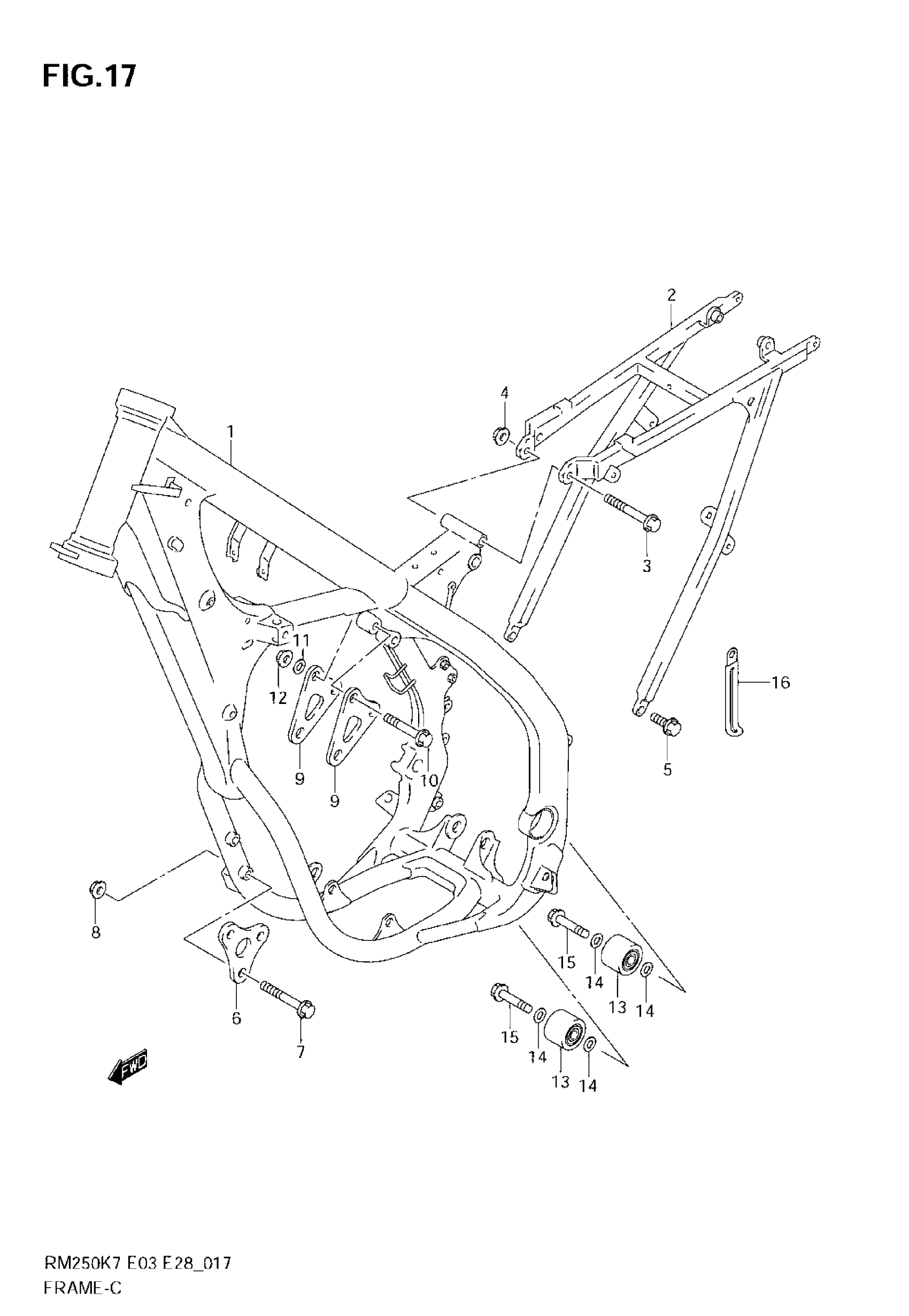

Suzuki RM250 (2008) FRAME Diagram

#

Description
Price

1

FRAME (GRAY)

41100-37F60-YU8

Unavailable

2

RAIL, SEAT

41200-37F21

$940.48

3

BOLT, UPPER

09103-08070

$5.24

4

NUT

08319-3108A

$2.38

5

BOLT, LOWER

09104-08036

$2.95

6

PLATE, ENGINE MOUNT FRONT

41991-37F10

$25.18

7

.BOLT (8X55) This part replaces 09103-08170.

09103-08339

$3.29

8

NUT

09159-08067

$5.17

9

PLATE, ENGINE MOUNT UPPER

41993-37F20

$45.52

10

BOLT

09103-08043

$2.95

11

WASHER

09164-08011

$2.80

12

NUT

09159-08067

$5.17

13

ROLLER, CHAIN CONTROL

43910-37F00

$77.40

14

WASHER

09181-08111

$2.01

15

BOLT

09103-08083

$3.50

16

CLAMP, LOWER

09404-08206

$4.03
