2000 Suzuki RM250 Cylinder Diagram

← All diagrams

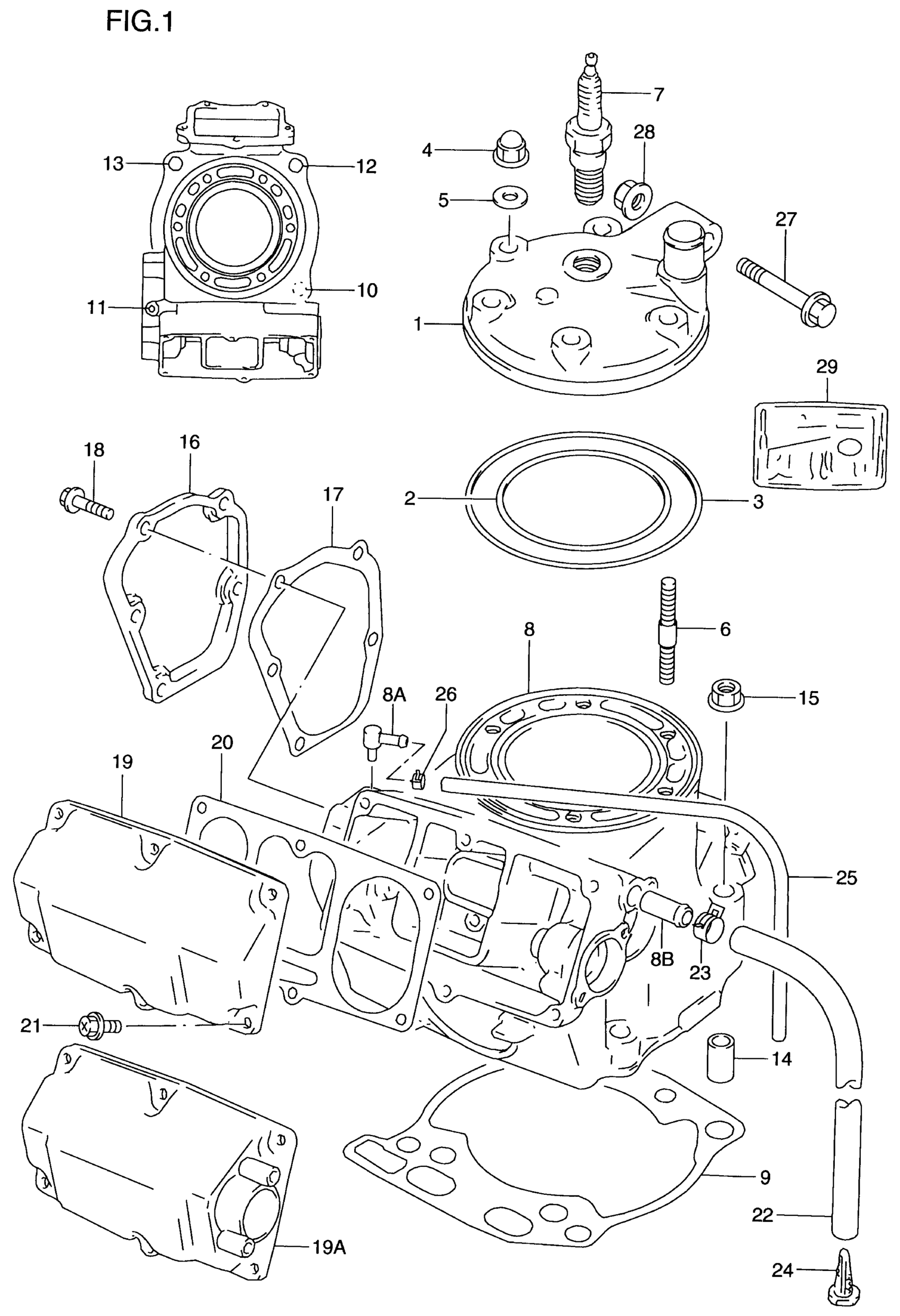

Find the part on the Cylinder diagram for your 2000 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki RM250 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER | MODEL T

11111-37E01

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL V This part replaces 11111-37E10.

11111-37E11

1
Out of stock

1

HEAD, CYLINDER | MODEL W This part replaces 11111-37E21.

11111-37E22

1
Out of stock

2

O RING, CYLINDER HEAD NO.1

11147-28C20

1
Out of stock

3

O RING, CYLINDER HEAD NO.2

11148-28C20

1
Out of stock

4

NUT | MODEL T

09159-08074

6
Out of stock

4

NUT | MODEL V/W

09159-08049

6
Out of stock

5

WASHER

09168-08021

6
Out of stock

6

STUD BOLT (8X38) This part replaces 09108-08227.

09108-08231

6
Out of stock

7

SPARK PLUG (NGK,R6918B-7)

09482-00511

1
Out of stock

8

CYLINDER | MODEL T

11200-37810

1
Out of stock

8

CYLINDER | MODEL V

11200-37820

1
Out of stock

8

CYLINDER | MODEL W; Includes Item(s) 8A

11200-37830

1
Out of stock

8A

UNION, CYLINDER

16910-09401

1
Out of stock

8B

UNION, EXHAUST VALVE BREATHER HOSE

09364-10003

1
Out of stock

9

GASKET, CYLINDER

11241-37E00

1
Out of stock

10

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

1
Out of stock

11

STUD BOLT (L:40) This part replaces 01421-10408.

01421-1040A

1
Out of stock

12

STUD BOLT (L:50) | MODEL T/V This part replaces 01421-10503.

01421-1050A

1
Out of stock

12

BOLT,STUD | MODEL W This part replaces 01421-10708.

01421-1070A

1
Out of stock

13

BOLT,STUD | MODEL T/V This part replaces 01421-10603.

01421-1060A

1
Out of stock

13

BOLT,STUD | MODEL W This part replaces 01421-10808.

01421-1080A

1
Out of stock

14

PIN

09206-13017

2
Out of stock

15

NUT This part replaces 08316-10103.

08316-1010B

4
Out of stock

16

COVER, CYLINDER NO.1 | MODEL T/V This part replaces 11231-37E00.

11231-37E01

1
Out of stock

16

COVER, CYLINDER NO.1 | MODEL W

11231-37E01

1
Out of stock

17

GASKET, CYLINDER COVER NO.1

11233-37E00

1
Out of stock

18

BOLT This part replaces 01547-06163.

01547-0616B

5
Out of stock

19

COVER, CYLINDER NO.2 | MODEL T/W

11248-37E00

1
Out of stock

19A

COVER, CYLINDER NO.2 | MODEL V

11248-37E10

1
Out of stock

20

GASKET, CYLINDER COVER NO.2

11238-37E00

1
Out of stock

21

BOLT This part replaces 02162-05163.

02162-0516A

6
Out of stock

22

HOSE (9X14X220)

09343-09501

1
Out of stock

23

CLIP

09401-12405

1
Out of stock

24

FILTER

11271-28E20

1
Out of stock

25

HOSE,5X10X600 | L:600(r)390 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

26

CLIP

09401-08401

1
Out of stock

27

BOLT (10X38)

09103-10126

1
Out of stock

28

NUT (M10)

09159-10060

1
Out of stock

29

GASKET SET This part replaces 11400-37870.

11400-37872

1
Out of stock
