2000 Suzuki RM250 Crankcase Cover- Water Pump Diagram

← All diagrams

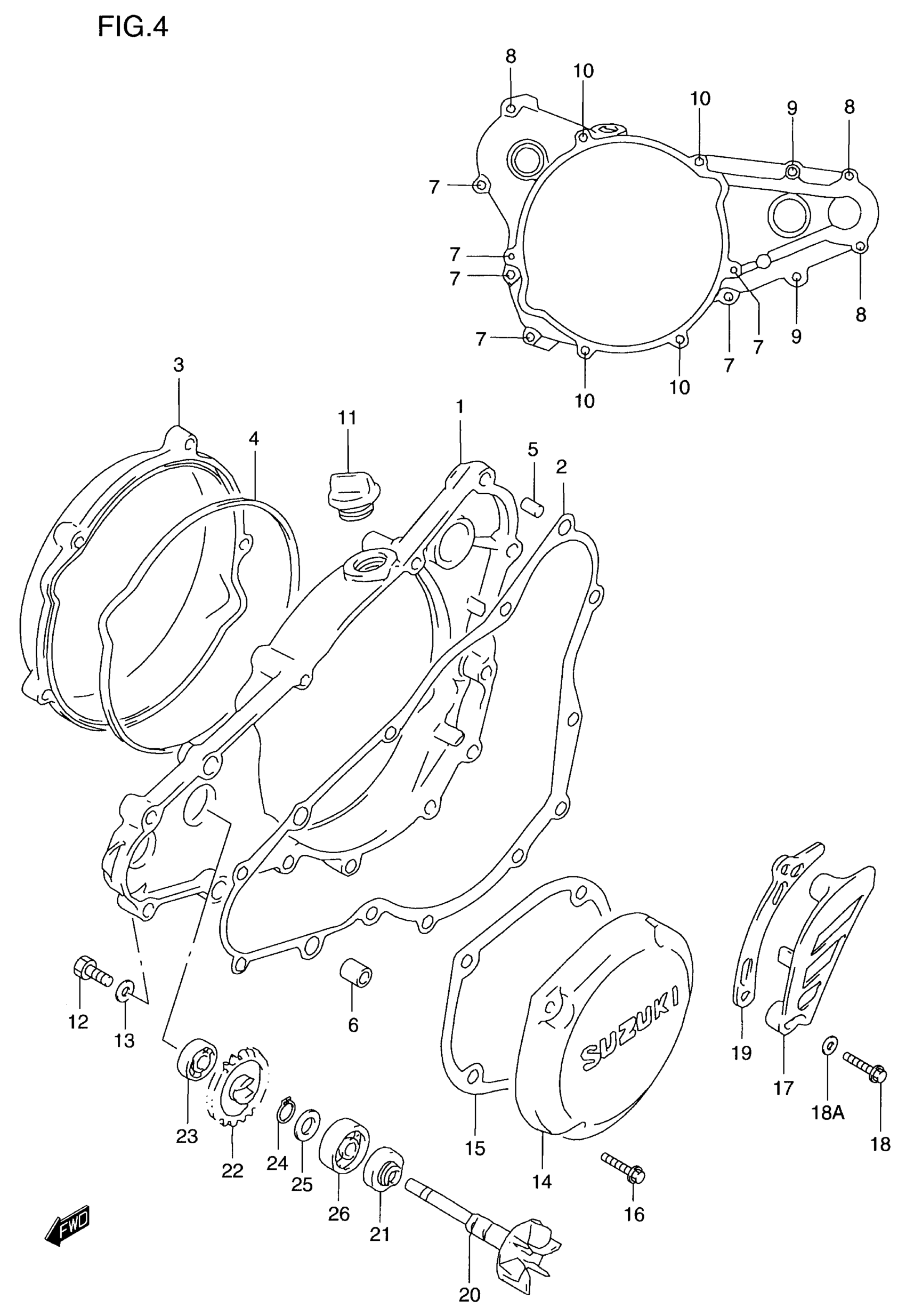

Find the part on the Crankcase Cover- Water Pump diagram for your 2000 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki RM250 Crankcase Cover- Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-37E01

1
Out of stock

2

GASKET,CLUTCH C This part replaces 11482-37E01.

11482-37E02

1
Out of stock

3

COVER, CLUTCH OUTER This part replaces 11371-37E01.

11371-37F01

1
Out of stock

4

O-RING,CL COVER This part replaces 11484-37E00.

11484-37E01

1
Out of stock

5

PIN

04211-09109

1
Out of stock

6

PIN

04211-11169

2
Out of stock

7

BOLT, FINAL GEAR CASE COVER | ~F.NO.101530 This part replaces 01547-06253.

01547-0625B

5
Out of stock

7

BOLT, FINAL GEAR CASE COVER | F.NO.101531~ This part replaces 01547-06253.

01547-0625B

6
Out of stock

8

BOLT, FINAL GEAR CASE | ~F.NO.101530 This part replaces 01547-06303.

01547-0630B

4
Out of stock

8

BOLT, FINAL GEAR CASE | F.NO.101531~ This part replaces 01547-06303.

01547-0630B

3
Out of stock

9

BOLT This part replaces 01547-06403.

01547-0640B

2
Out of stock

10

BOLT This part replaces 01547-06603.

01547-0660B

4
Out of stock

11

PLUG SET This part replaces 09200-20810.

09200-20811

1
Out of stock

12

SCREW (6X10) | MODEL T/V/W This part replaces 09128-06004.

09128-06044

1
Out of stock

12

SCREW, OIL LEVEL (6X10) | MODEL X/Y

09128-06044

1
Out of stock

13

GASKET

09168-06004

1
Out of stock

14

COVER, MAGNETO This part replaces 11351-37E00.

11351-37F00

1
Out of stock

15

GASKET, MAGNETO COVER This part replaces 11483-37E00.

11483-37E02

1
Out of stock

16

..BOLT This part replaces 01547-06203.

01547-0620B

4
Out of stock

17

COVER, SPROCKET | MODEL T

11360-28E00

1
Out of stock

17

COVER, SPROCKET | MODEL V/W/X/Y

11360-36E00

1
Out of stock

18

BOLT, FINAL GEAR CASE COVER | MODEL T This part replaces 01547-06253.

01547-0625B

2
Out of stock

18

BOLT, FINAL GEAR CASE | MODEL V/W/X/Y This part replaces 01547-06303.

01547-0630B

2
Out of stock

18A

WASHER (6.5X14X2.0) | MODEL V This part replaces 09160-06093.

09160-06126

2
Out of stock

18A

WASHER (6.5X14X2.0) | MODEL W/X/Y

09160-06126

2
Out of stock

19

PLATE, CHAIN GUIDE

27641-37E00

1
Out of stock

20

IMPELLER, WATER PUMP

17491-37E00

1
Out of stock

21

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

1
Out of stock

22

GEAR,WATER PUMP | MODEL T This part replaces 17441-37E00.

17441-37E01

1
Out of stock

23

BEARING, RH (8X22X7)

09262-08005

1
Out of stock

24

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

25

WASHER (10X14X1.0) | MODEL T This part replaces 08211-10141.

09181-10111

1
Out of stock

25

WASHER | MODEL V/W/X/Y

09181-10111

1
Out of stock

26

BEARING, LH (10X26X8)

09262-10014

1
Out of stock
