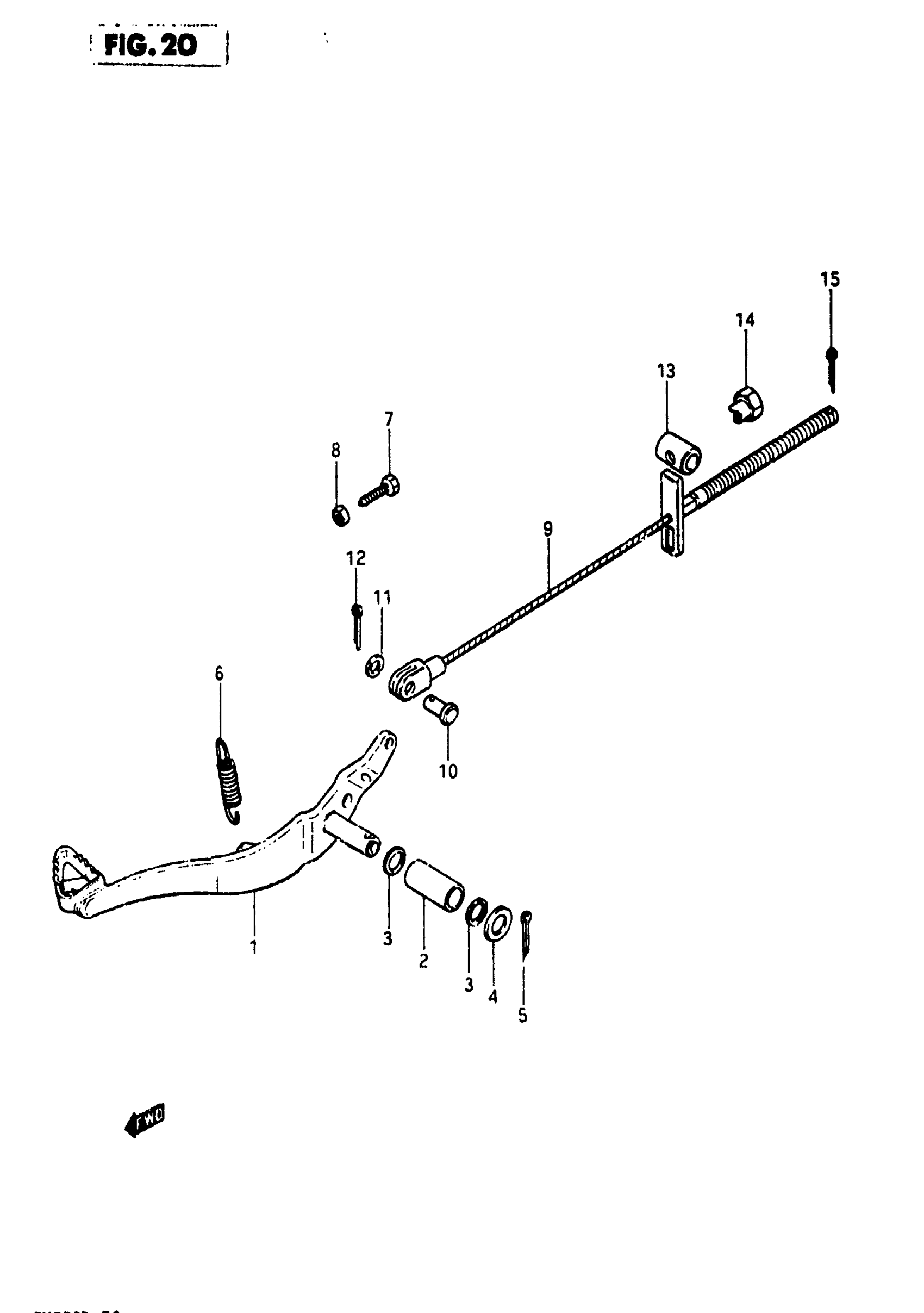

Suzuki RM250 (1983) REAR BRAKE (MODEL Z) Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-14212

Unavailable

2

BUSH

09319-12022

Unavailable

3

O RING

09280-12006

$1.50

4

THRUST WASHER

08211-12223

$2.13

5

PIN This part replaces 04111-30208.

04111-3020A

$1.63

6

SPRING This part replaces 09448-31024.

09448-31024-XC0

Unavailable

7

BOLT

09128-06028

$2.17

8

.NUT This part replaces 08310-11068.

08310-00067

$1.83

9

CABLE, REAR BRAKE This part replaces 58510-14201.

58510-14A00

Unavailable

10

PIN

09200-05001

$1.52

11

WASHER This part replaces 08322-21068.

08322-01067

$1.86

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

13

PIN, ADJUSTER

09209-13004

Unavailable

14

.NUT This part replaces 09150-06001.

09150-06010

$2.80

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22
