1983 Suzuki RM250 Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 1983 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

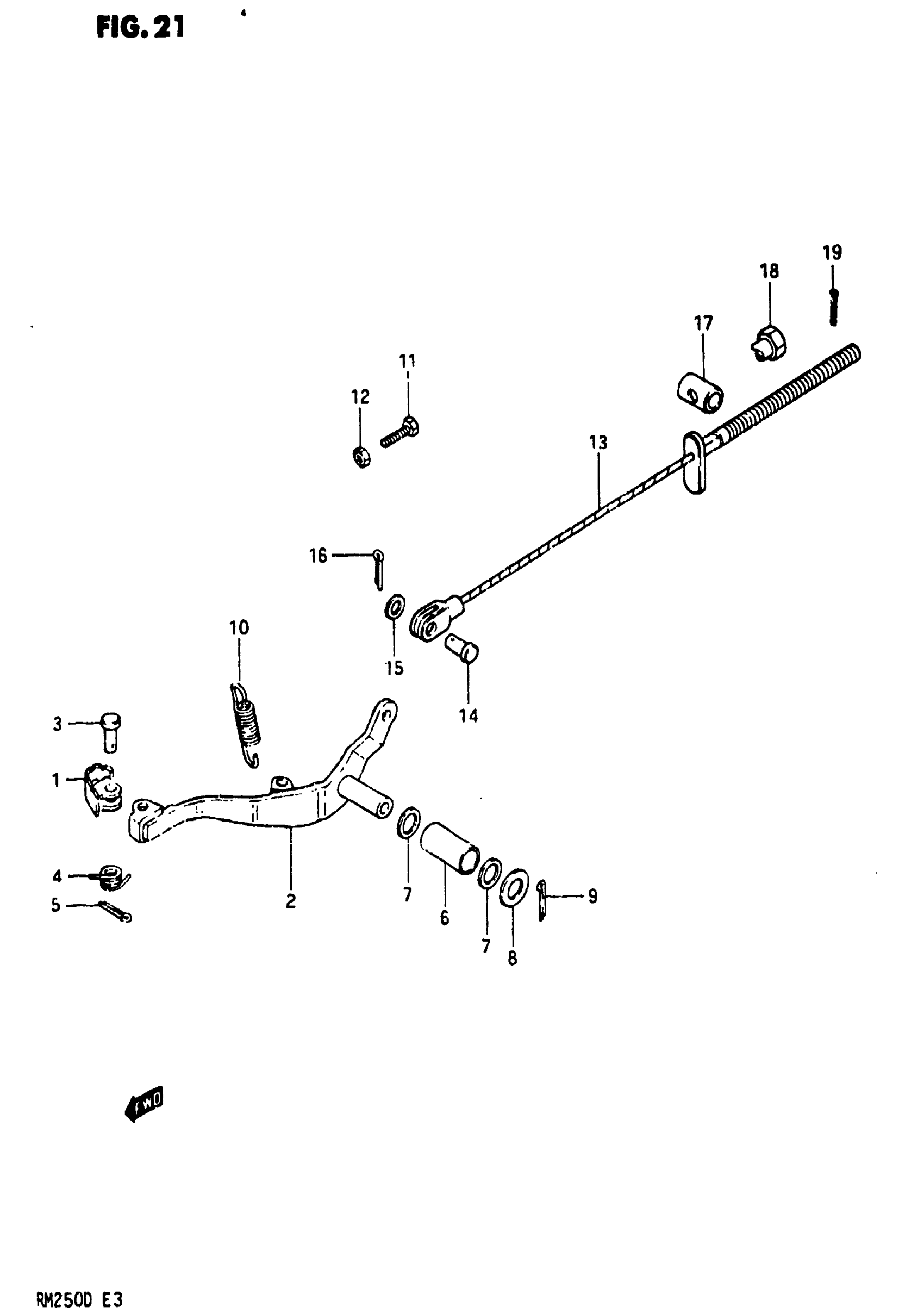

1983 Suzuki RM250 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-14130

1
Out of stock

2

ARM, REAR BRAKE

43120-14330

1
Out of stock

3

PIN

09200-06038

1
Out of stock

4

SPRING This part replaces 09444-11003.

09444-11005

1
Out of stock

5

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

6

BUSH

09319-12022

1
Out of stock

7

O RING

09280-12006

2
Out of stock

8

THRUST WASHER

08211-12223

1
Out of stock

9

PIN This part replaces 04111-30208.

04111-3020A

1
Out of stock

10

SPRING This part replaces 09448-31024.

09448-31024-XC0

1
Out of stock

11

BOLT

09128-06028

1
Out of stock

12

.NUT This part replaces 08310-11068.

08310-00067

1
Out of stock

13

CABLE ASSY, REAR BRAKE

58510-14130

1
Out of stock

14

PIN

09200-05001

1
Out of stock

15

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

17

PIN, ADJUSTER

09209-13004

1
Out of stock

18

.NUT This part replaces 09150-06009.

09150-06010

1
Out of stock

19

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock
