1983 Suzuki RM250 Cushion Lever Diagram

← All diagrams

Find the part on the Cushion Lever diagram for your 1983 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

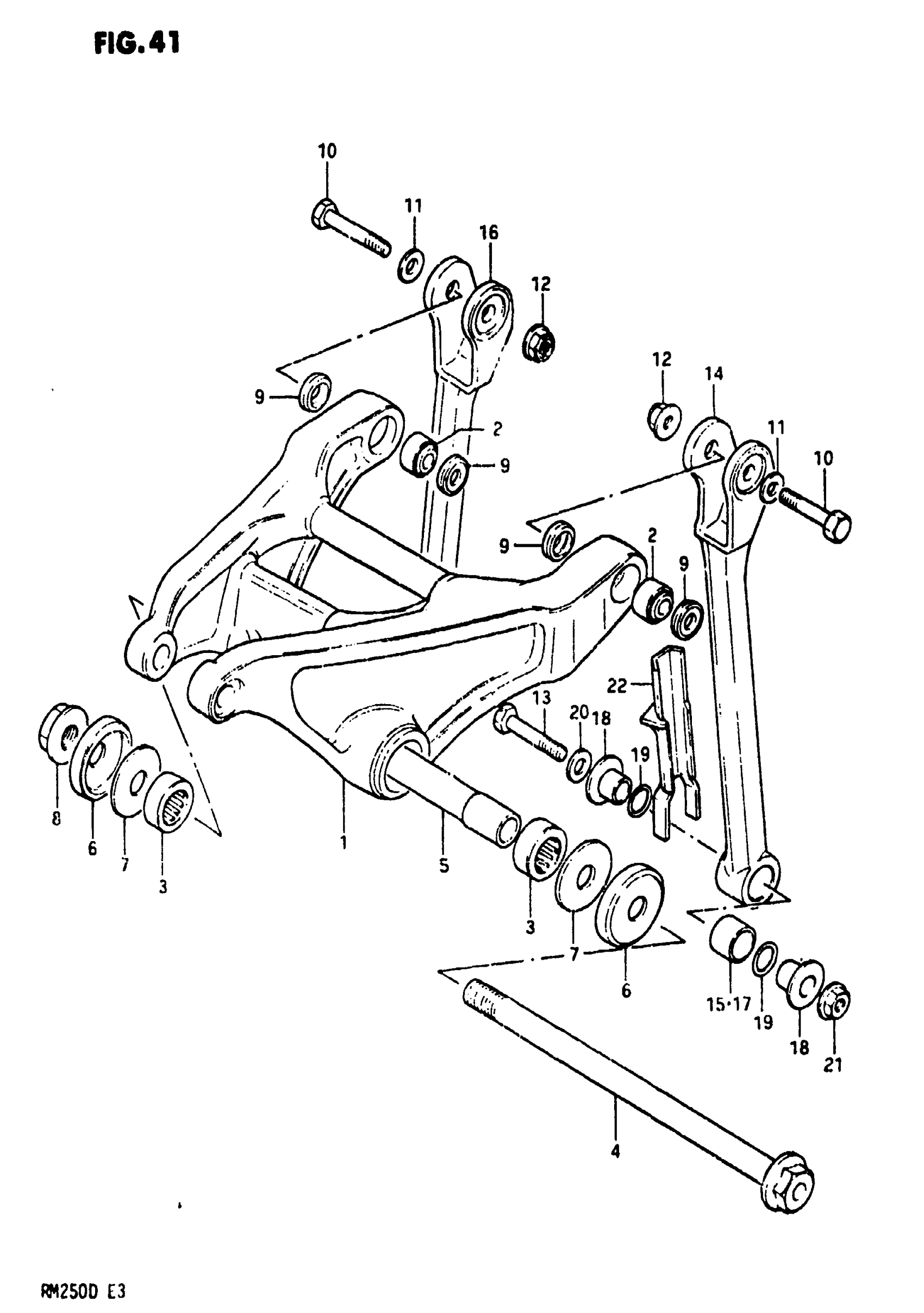

1983 Suzuki RM250 Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER, CUSHION | Includes Item(s) 2 - 3

62600-14830

1
Out of stock

2

BEARING

09269-08001

2
Out of stock

3

BEARING

09263-17019

2
Out of stock

4

SHAFT This part replaces 62621-14104.

62621-14105

1
Out of stock

5

SPACER, RR CUSH This part replaces 62623-14204.

62623-16700

1
Out of stock

6

DUST SEAL

62624-14202

2
Out of stock

7

THRUST WASHER

09160-12045

2
Out of stock

8

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

9

DUST SEAL

64339-14300

4
Out of stock

10

BOLT, UPPER

62313-14100

2
Out of stock

11

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

12

NUT This part replaces 08319-31088.

08319-3108A

2
Out of stock

13

BOLT, LOWER

62313-14110

2
Out of stock

14

ROD, CUSHION LEVER, LH | Includes Item(s) 15 This part replaces 62600-14861.

62600-14880

1
Out of stock

15

BUSH,RR CUSH RO This part replaces 62642-14110.

62642-13601

1
Out of stock

16

ROD, CUSHION LEVER, RH | Includes Item(s) 17 This part replaces 62600-14871.

62600-14890

1
Out of stock

17

BUSH,RR CUSH RO This part replaces 62642-14110.

62642-13601

1
Out of stock

18

SPACER, LOWER

62316-14110

4
Out of stock

19

DUST SEAL, LOWER This part replaces 62647-14300.

62647-20400

4
Out of stock

20

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

21

NUT This part replaces 08319-31088.

08319-3108A

2
Out of stock

22

PROTECTOR, CUSHION ROD LH

62681-14110

1
Out of stock
