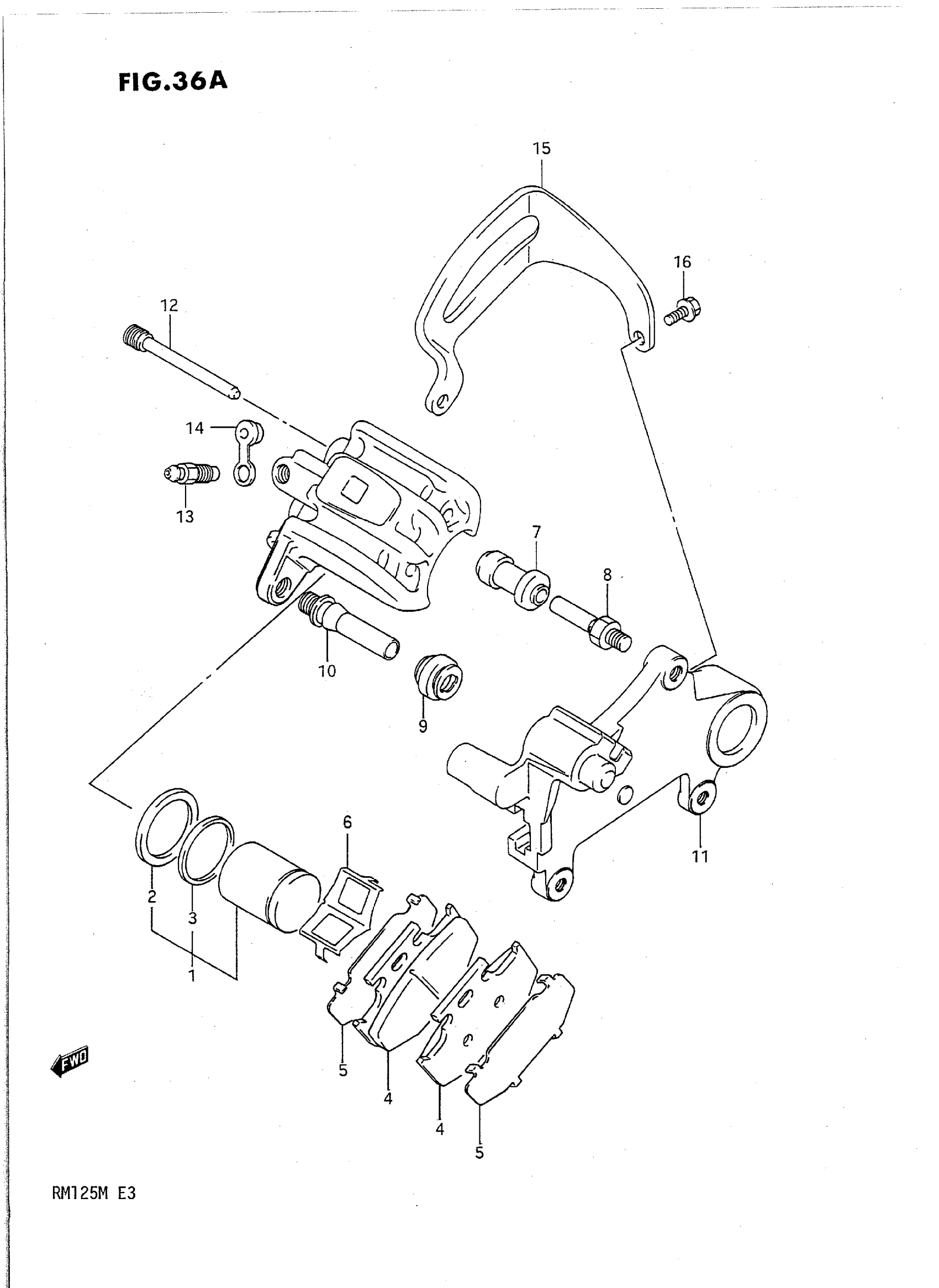

Suzuki RM125M (1991) REAR CALIPERS (MODEL L) Diagram

#

Description
Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 14

69100-27C10

Unavailable

1

PISTON SET

69100-27830

Unavailable

2

SEAL SET, PISTON This part replaces 59107-00B20.

69100-36810

$8.50

3

SEAL, DUST

59108-00B20

Unavailable

4

PAD SET This part replaces 69140-27C10.

69100-05840

Unavailable

5

SHIM

69132-28C00

$10.68

6

SPRING

59315-27C10

$13.20

7

BOOT

59386-13A00

$7.28

8

PIN

59382-14500

$8.43

9

BOOT

59303-14500

$5.06

10

PIN

59305-27C00

$26.52

11

BRACKET

69351-27C00

Unavailable

12

PIN

59345-14600

$18.33

13

BLEEDER

59121-01A00

$7.99

14

CAP

59122-01A00

$3.97

15

GUARD, CALIPER

69725-27C20

Unavailable

16

BOLT

01547-06107

$1.67
