1991 Suzuki RM125M Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

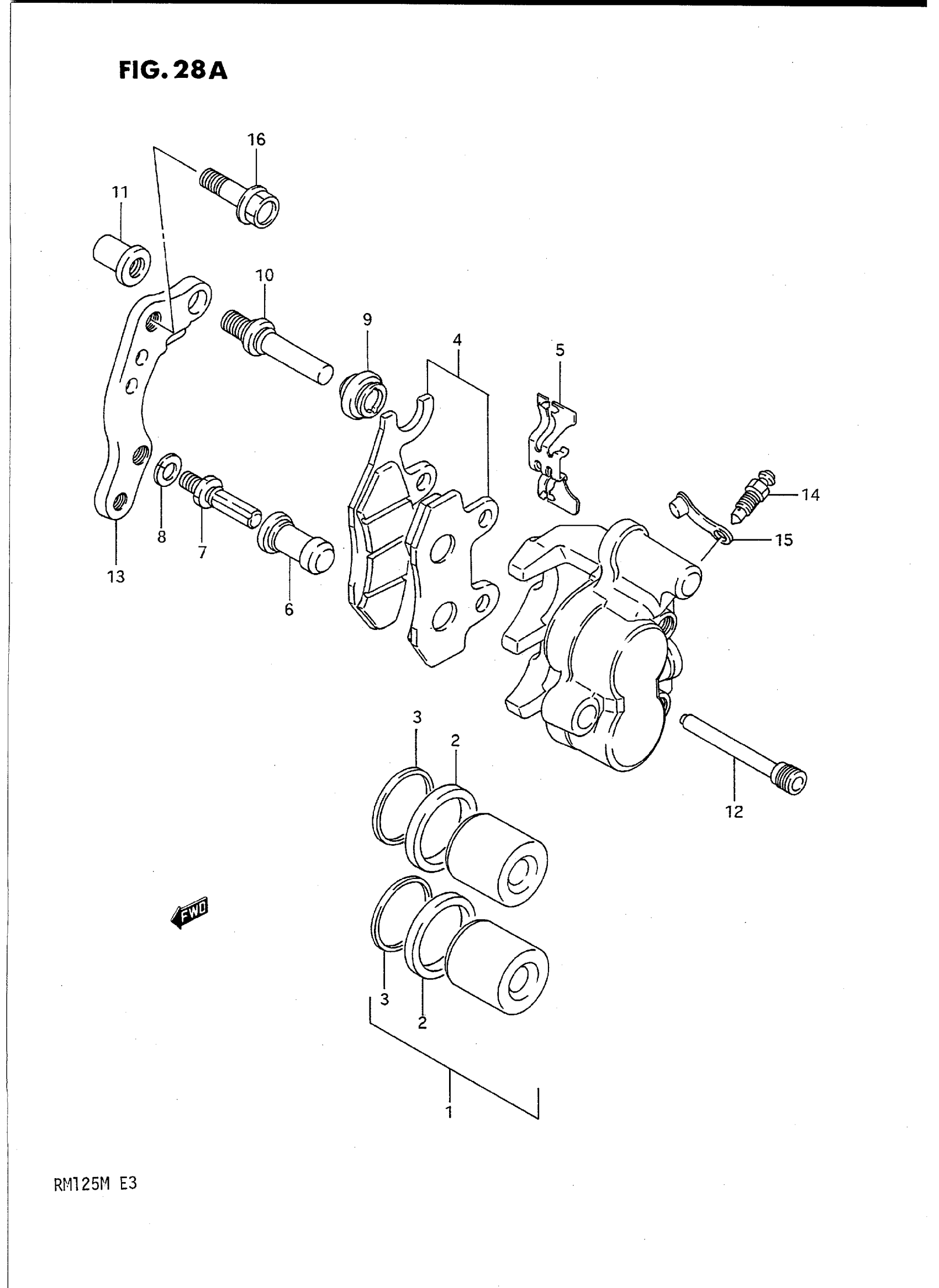

1991 Suzuki RM125M Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY,FR | Includes Item(s) 1 - 15 This part replaces 59300-27C10.

59300-27C11-999

1
Out of stock

1

PISTON SET

59300-27840

1

$49.57

In stock

2

2

$9.26

In stock

3

DUST SEAL

59108-00B20

2
Out of stock

4

PAD SET

59300-27850

1
Out of stock

5

SPRING This part replaces 59315-27C20.

59315-27C30

1
Out of stock

6

BOOT

59386-13A00

1
Out of stock

7

BOLT

59382-13A00

1
Out of stock

8

WASHER

59314-13A00

1
Out of stock

9

BOOT

59303-14500

1
Out of stock

10

PIN

59387-00B20

1
Out of stock

11

NUT

59388-00B20

1
Out of stock

12

PIN

59345-00B20

2

$14.56

In stock

13

BRACKET

59351-00B20

1

$87.92

In stock

14

BLEEDER

59121-01A00

1
Out of stock

15

CAP

59122-01A00

1
Out of stock

16

BOLT

09103-08157

2
Out of stock
