1991 Suzuki RM125M Rear Brake Diagram

← All diagrams

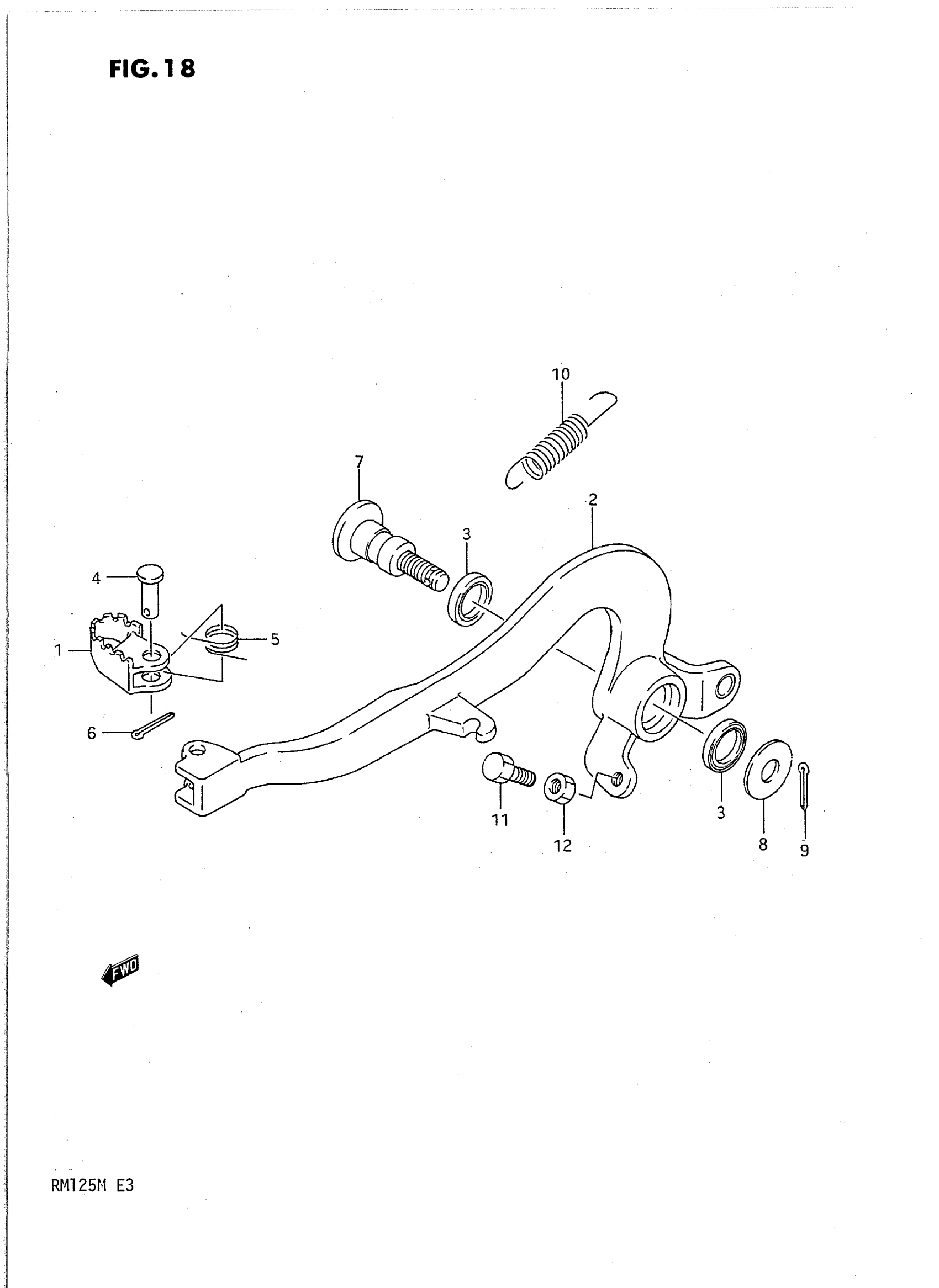

Find the part on the Rear Brake diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Suzuki RM125M Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-27C00

1
Out of stock

2

ARM, REAR BRAKE | MODEL K

43120-27C00

1
Out of stock

2

ARM, REAR BRAKE | MODEL L This part replaces 43120-27C10.

43120-27C20

1
Out of stock

2

ARM, REAR BRAKE | MODEL M; Includes Item(s) 3

43120-27C20

1
Out of stock

3

DUST SEAL

09284-15006

1

$3.45

In stock

4

PIN

09200-06062

1

$2.55

In stock

5

SPRING

09444-11005

1

$2.92

In stock

6

1

$1.31

In stock

7

SHAFT, BRAKE PEDAL | MODEL K This part replaces 43142-01B30.

43142-27C00

1
Out of stock

7

SHAFT, BRAKE PEDAL | MODEL L/M

43142-27C00

1
Out of stock

8

THRUST WASHER

08211-10261

1
Out of stock

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

10

SPRING | MODEL K This part replaces 09443-11025.

09443-11025-XC0

1
Out of stock

10

NO DESCRIPTION AVAILABLE | MODEL L/M This part replaces 09443-11023.

09443-11023-XC0

1
Out of stock

11

BOLT

09100-06009

1

$2.07

In stock

12

1

$1.82

In stock
