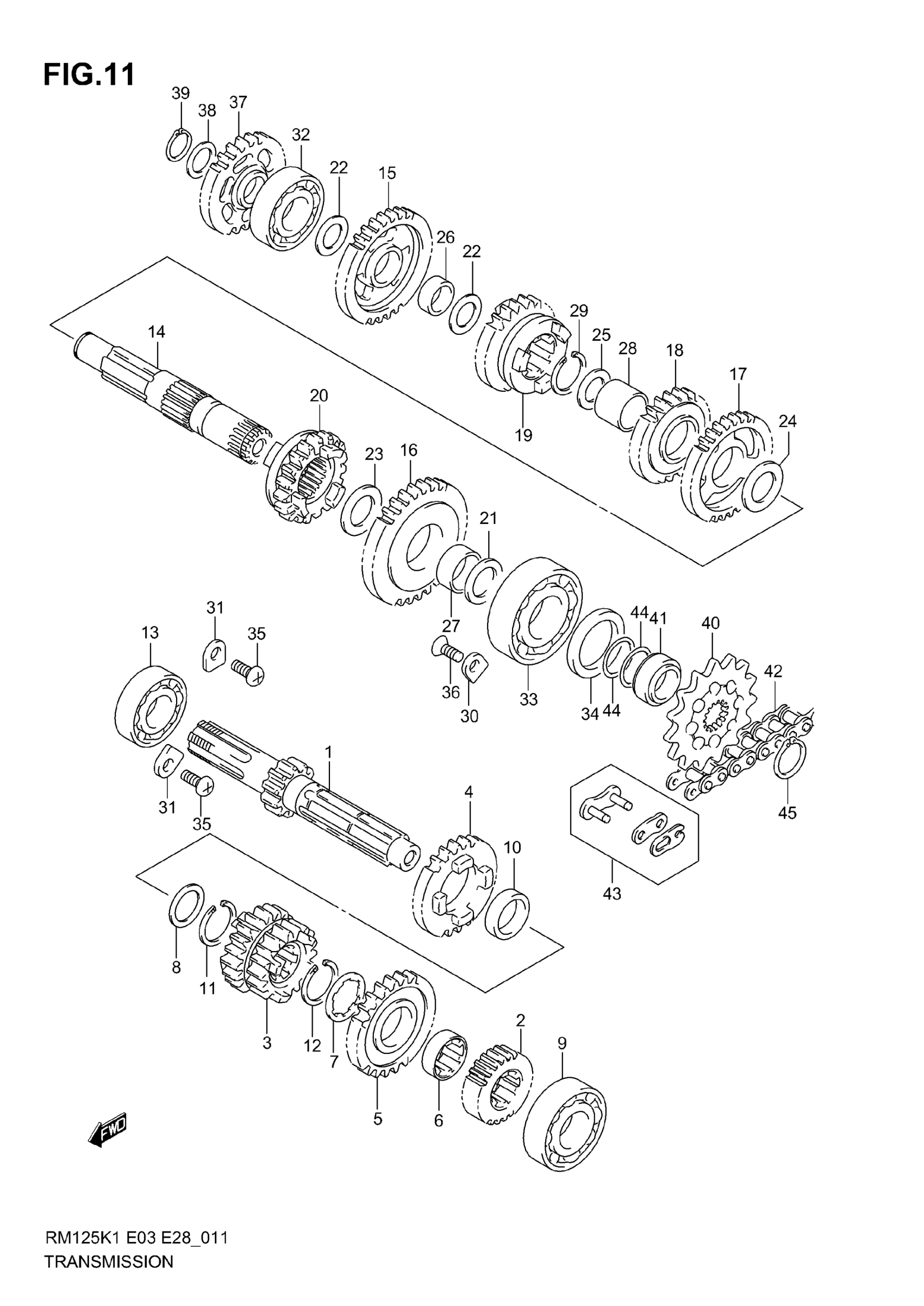

Suzuki RM125 (2006) TRANSMISSION (MODEL K1/K2/K3) Diagram

#

Description
Price

1

SHAFT, COUNTER | MODEL K1/K2 This part replaces 24120-36F00.

24120-36F03

Unavailable

1

SHAFT, COUNTER | MODEL K3 This part replaces 24120-36F01.

24120-36F03

Unavailable

2

GEAR, 2ND DRIVE (NT:16)

24221-36F01

Unavailable

3

GEAR, 3RD & 4TH DRIVE | NT:18/20

24231-43D21

Unavailable

4

GEAR, 5TH DRIVE (NT:19)

24251-43D20

$120.47

5

GEAR, 6TH DRIVE (NT:20)

24261-43D01

$120.47

6

BUSH, 6TH DRIVE

24262-43D00

Unavailable

7

WASHER LOCK, 6TH DRIVE

09167-22014

$4.12

8

WASHER, 5TH DRIVE (22X28X1.0)

09181-22139

$3.78

9

BEARING, CNTR SHAFT, LH | 17X35X10

09262-17049

Unavailable

10

BUSH, 5TH DRIVE GEAR

09300-22008

$16.03

11

CIRCLIP, 5TH DRIVE

09380-22006

$2.80

12

CIRCLIP, 6TH DRIVE

09380-22006

$2.80

13

BEARING, CNTR SHAFT, RH | 20X47X12

09262-20122

$22.40

14

SHAFT, DRIVE

24131-36E10

Unavailable

15

GEAR, 1ST DRIVEN (NT:29)

24311-36F00

$134.47

16

GEAR, 2ND DRIVEN (NT:27) | MODEL K1 This part replaces 24321-36F00.

24321-36F01

$134.47

16

GEAR, 2ND DRIVEN (NT:27) | MODEL K2/K3

24321-36F01

$134.47

17

GEAR, 3RD DRIVEN (NT:26) | MODEL K1 This part replaces 24331-36E00.

24331-36E01

$132.63

17

GEAR, 3RD DRIVEN (NT:26) | MODEL K2/K3

24331-36E01

$132.63

18

GEAR, 4TH DRIVEN (NT:24)

24341-36E00

$126.50

19

GEAR, 5TH DRIVEN (NT:20)

24351-36E01

Unavailable

20

GEAR, 6TH DRIVEN (NT:19) | MODEL K1 This part replaces 24361-36E01.

24361-36E03

$115.83

20

GEAR, 6TH DRIVEN (NT:19) | MODEL K2/K3 This part replaces 24361-36E02.

24361-36E03

$115.83

21

WASHER, 2ND DRIVEN LH | 20X30X3

09160-20074

$3.57

22

WASHER, 1ST DRIVEN (17X26X1)

09181-17167

$2.80

23

WASHER, 2ND DRIVEN (22X30X1)

09181-22167

$2.80

24

WASHER, 3RD DRIVEN (22X30X1)

09181-22167

$2.80

25

WASHER, 4TH DRIVEN (22X30X1)

09181-22167

$2.80

26

BUSH, 1ST DRIVEN

09300-17012

$29.30

27

BUSH, 2ND DRIVEN

09300-22008

$16.03

28

BUSH, 3RD & 4TH DRIVEN

09300-22018

$24.62

29

CIRCLIP, 4TH DRIVEN

09380-22006

$2.80

30

RETAINER

24741-20A00

$2.80

31

RETAINER, CNTR SHAFT BEARING

24741-21A00

$2.80

32

BEARING, DRIVE SHAFT RH | 17X40X9.5

09262-17040

$19.14

33

BEARING, DRIVE SHAFT LH | 20X52X12.5

09262-20110

$24.83

34

SEAL, DRIVE SHAFT OIL

09283-28020

$9.08

35

SCREW This part replaces 02112-06103.

02112-0610B

$1.83

36

SCREW This part replaces 02122-06123.

02122-0612A

$1.43

37

GEAR, KICK IDLE (NT:26) This part replaces 26260-43D00.

26260-43D01

$96.18

38

WASHER (17X24X0.50)

09181-17130

$2.80

39

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.88

40

SPROCKET, ENGINE (NT:12)

27511-14111

$25.90

40

SPROCKET, ENGINE (NT:13) | OPT

27511-14121

$38.62

41

SPACER

27531-43D00

$23.81

42

CHAIN ASSY,DRIVE | MODEL K1 This part replaces 27600-43D00-112.

27600-46K00-114

$156.72

42

CHAIN ASSY,DRIVE | MODEL K2/K3 This part replaces 27600-43D01-112.

27600-46K00-114

$156.72

43

.JOINT SET,CHAIN | OPT This part replaces 27620-43D00.

27620-46K00

$10.80

44

O RING (D:1.9,ID:19.8)

09280-20006

$1.77

45

CIRCLIP

09380-20007

$2.38
