2006 Suzuki RM125 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2006 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

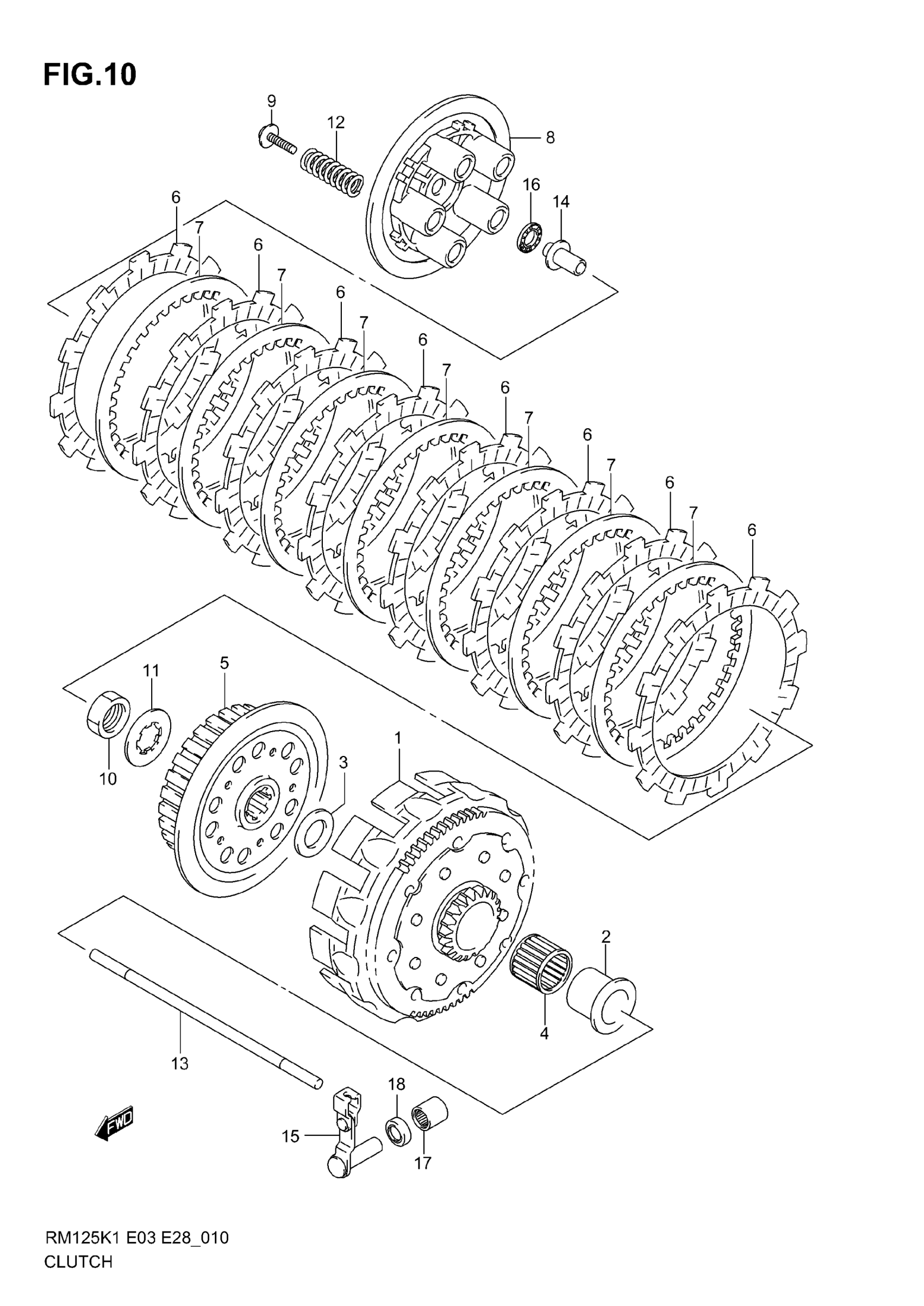

2006 Suzuki RM125 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:64/18

21200-43D04

1
Out of stock

2

SPACER

21251-43D00

1
Out of stock

3

WASHER

08211-20363

1
Out of stock

4

BEARING (25X30X22)

09263-25046

1
Out of stock

5

HUB, CLUTCH SLEEVE

21411-43D04

1
Out of stock

6

PLATE, CLUTCH DRIVE

21441-43D00

8
Out of stock

7

PLATE, CLUTCH DRIVEN | T:1.4

21451-43D00

7
Out of stock

8

DISC, CLUTCH PRESSURE

21462-43D01

1
Out of stock

9

BOLT (5X18)

09116-05019

5
Out of stock

10

NUT

09140-20001

1
Out of stock

11

LOCK WASHER This part replaces 09167-20006.

09167-20009

1
Out of stock

12

SPRING

09440-18030

5
Out of stock

13

ROD, CLUTCH PUSH

23110-36F00

1
Out of stock

14

PIECE,CLUTCH PUSH

23121-37F00

1
Out of stock

15

CAMSHAFT, CLUTCH RELEASE

23200-36E11

1
Out of stock

16

BEARING (10.1X22X2.8)

09263-10002

1
Out of stock

17

BEARING (10X14X15)

09263-10007

1
Out of stock

18

SEAL (10X17X5.0)

09285-10004

1
Out of stock
