2000 Suzuki RM125 Transmission Diagram

← All diagrams

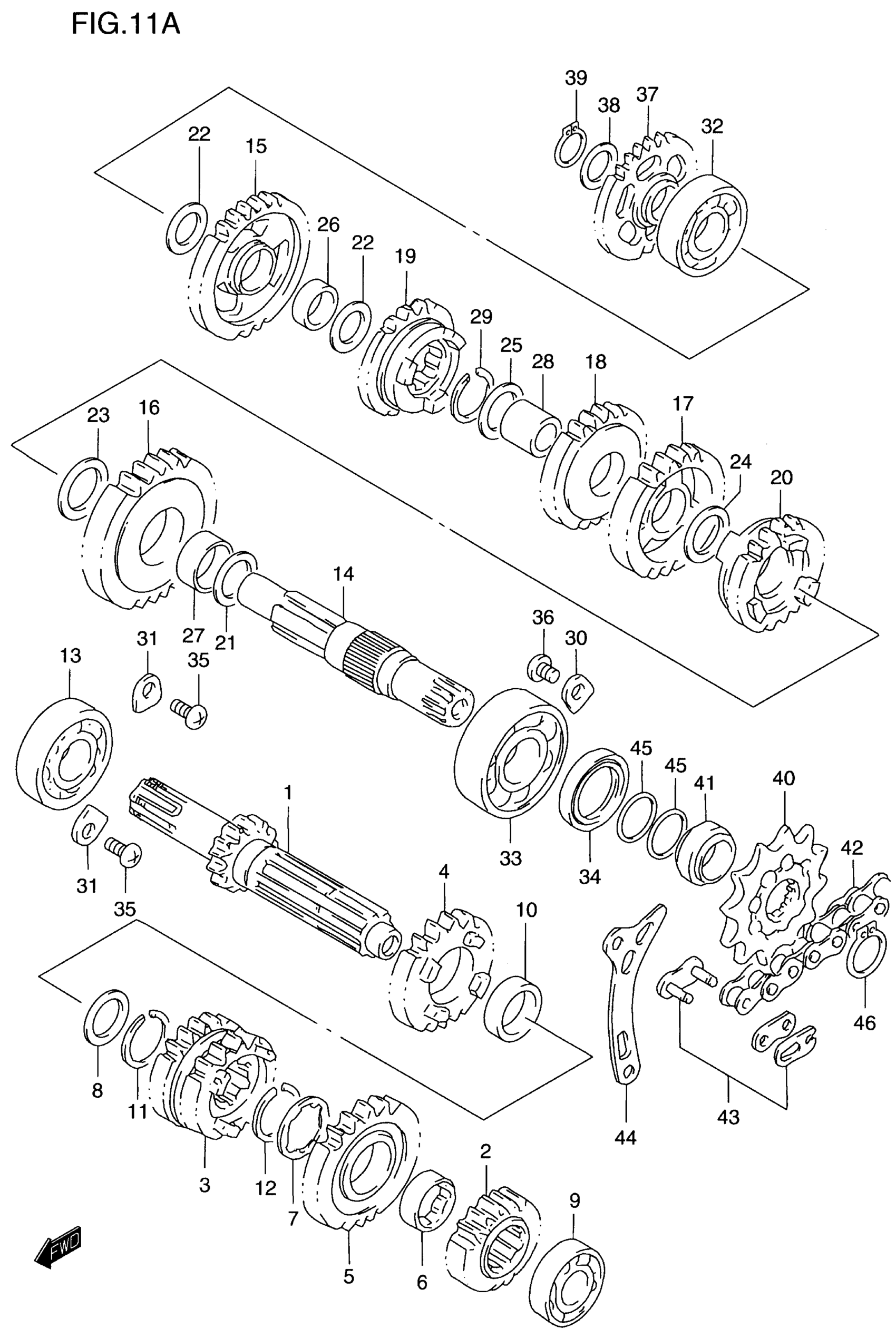

Find the part on the Transmission diagram for your 2000 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki RM125 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:14)

24120-36E10

1
Out of stock

2

GEAR, 2ND DRIVE (NT:16)

24221-43D00

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE | MODEL W/X,NT:18/20 This part replaces 24231-43D11.

24231-43D21

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE | MODEL Y,NT:18/20 This part replaces 24231-43D20.

24231-43D21

1
Out of stock

4

GEAR, 5TH DRIVE (NT:19) | MODEL W/X This part replaces 24251-43D00.

24251-43D20

1
Out of stock

4

GEAR, 5TH DRIVE (NT:19) | MODEL Y

24251-43D20

1
Out of stock

5

GEAR, 6TH DRIVE (NT:20) This part replaces 24261-43D00.

24261-43D01

1
Out of stock

6

BUSH, 6TH DRIVE

24262-43D00

1
Out of stock

7

WASHER LOCK, 6TH DRIVE

09167-22014

1
Out of stock

8

WASHER, 5TH DRIVE (22X28X1.0)

09181-22139

1
Out of stock

9

BEARING, CNTR SHAFT RH | 20X47X12

09262-20122

1
Out of stock

10

BUSH, 5TH DRIVE GEAR

09300-22008

1
Out of stock

11

CIRCLIP, 5TH DRIVE

09380-22006

1
Out of stock

12

CIRCLIP, 6TH DRIVE

09380-22006

1
Out of stock

13

BEARING, CNTR SHAFT LH

08143-60030

1
Out of stock

14

SHAFT, DRIVE

24131-36E10

1
Out of stock

15

GEAR, 1ST DRIVEN (NT:30)

24311-43D02

1
Out of stock

16

GEAR, 2ND DRIVEN (NT:28)

24321-43D00

1
Out of stock

17

GEAR, 3RD DRIVEN (NT:26) This part replaces 24331-36E00.

24331-36E01

1
Out of stock

18

GEAR, 4TH DRIVEN (NT:24)

24341-36E00

1
Out of stock

19

GEAR, 5TH DRIVEN (NT:20)

24351-36E01

1
Out of stock

20

GEAR, 6TH DRIVEN (NT:19) This part replaces 24361-36E01.

24361-36E03

1
Out of stock

21

WASHER, 2ND DRIVEN LH | 20X30X3

09160-20074

1
Out of stock

22

WASHER, 1ST DRIVEN (17X26X1)

09181-17167

2
Out of stock

23

WASHER, 2ND DRIVEN (22X30X1)

09181-22167

1
Out of stock

24

WASHER, 3RD DRIVEN (22X30X1)

09181-22167

1
Out of stock

25

WASHER, 4TH DRIVEN (22X30X1)

09181-22167

1
Out of stock

26

BUSH, 1ST DRIVEN

09300-17012

1
Out of stock

27

BUSH, 2ND DRIVEN

09300-22008

1
Out of stock

28

BUSH, 3RD & 4TH DRIVEN

09300-22018

1
Out of stock

29

CIRCLIP, 4TH DRIVEN

09380-22006

1
Out of stock

30

RETAINER

24741-20A00

1
Out of stock

31

RETAINER, CNTR SHAFT BEARING

24741-21A00

1
Out of stock

32

BEARING, DRIVE SHAFT RH | 17X40X9.5

09262-17040

1
Out of stock

33

BEARING,.DRIVE SHAFT LH | 20X52X12.5

09262-20110

1
Out of stock

34

SEAL, DRIVE SHAFT OIL

09283-28020

1
Out of stock

35

SCREW This part replaces 02112-06103.

02112-0610B

2
Out of stock

36

SCREW This part replaces 02122-06123.

02122-0612A

1
Out of stock

37

GEAR, KICK IDLE (NT:26) This part replaces 26260-43D00.

26260-43D01

1
Out of stock

38

WASHER (17X24X0.50)

09181-17130

1
Out of stock

39

CIRCLIP This part replaces 08331-31176.

08331-31179

1
Out of stock

40

SPROCKET, ENGINE (NT:12)

27511-14111

1
Out of stock

40

SPROCKET, ENGINE (NT:13) | OPT

27511-14121

1
Out of stock

41

SPACER

27531-43D00

1
Out of stock

42

CHAIN ASSY,DRIVE | MODEL W/X This part replaces 27600-43D00-114.

27600-46K00-114

1
Out of stock

42

CHAIN ASSY,DRIVE | MODEL Y; Includes Item(s) 43 This part replaces 27600-43D00-112.

27600-46K00-114

1
Out of stock

43

.JOINT SET,CHAIN This part replaces 27620-43D00.

27620-46K00

1
Out of stock

44

PLATE, FRONT CHAIN

27641-37E00

1
Out of stock

45

O RING (D:1.9,ID:19.8)

09280-20006

2
Out of stock

46

CIRCLIP

09380-20007

1
Out of stock
