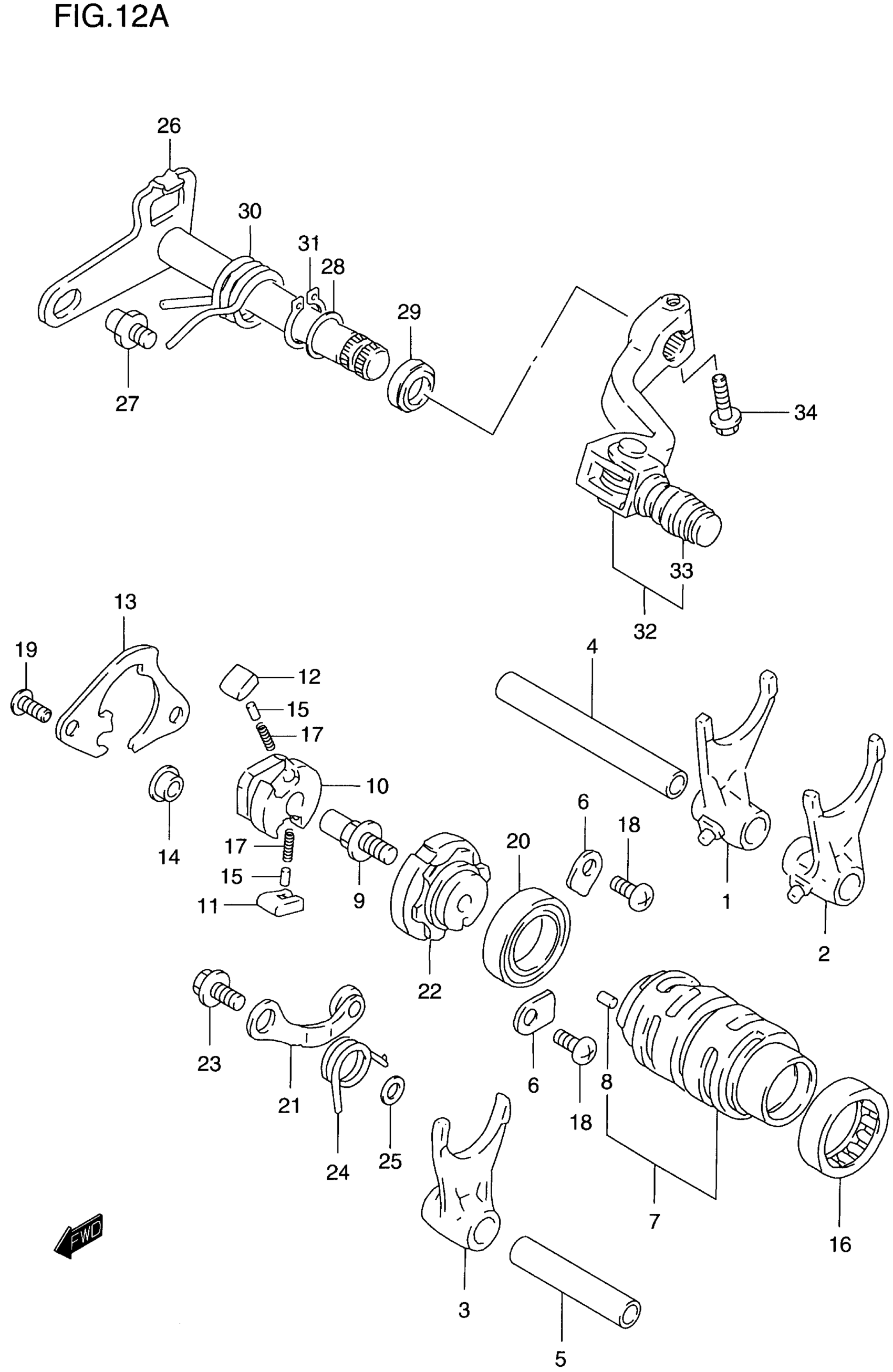

Suzuki RM125 (2000) GEAR SHIFTING (MODEL W/X/Y) Diagram

#

Description
Price

1

FORK, NO.1

25211-36E10

$94.92

2

FORK, NO.2

25221-36E10

$93.13

3

FORK, NO.3

25231-36E10

$94.92

4

SHAFT, GEAR FORK NO.1 | MODEL W This part replaces 25411-27C00.

25411-37F20

$25.08

4

SHAFT, GEAR FORK NO.1 | MODEL X/Y This part replaces 25411-27C01.

25411-37F20

$25.08

5

SHAFT, NO.2 (L:60) | MODEL W This part replaces 25421-27C00.

25421-27C01

$20.82

5

SHAFT, NO.2 (L:60) | MODEL X/Y

25421-27C01

$20.82

6

RETAINER, SHAFT CAM BEARING

24741-21A00

$2.80

7

CAM, GEAR SHIFT | Includes Item(s) 8

25310-36E10

Unavailable

8

PIN (4X13.8)

04221-04089

$1.10

9

PIN, GEAR SHIFT CAM

25313-27C02

$14.73

10

SHIFTER, GEAR SHIFT

25322-36E00

Unavailable

11

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

12

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

13

LIFTER, GEAR SHIFT

25331-37E00

Unavailable

14

ROLLER

09180-07014

$3.71

15

PIN, SHIFT PAWL

09261-05003

$1.69

16

BEARING, SHIFT CAM LH | 33X38X18

09263-33004

$28.35

17

SPRING

09440-04003

$1.48

18

SCREW This part replaces 02112-06103.

02112-0610B

$1.83

19

SCREW This part replaces 02122-06123.

02122-0612A

$1.43

20

BEARING, SHIFT CAM RH

08140-69050

$32.18

21

STOPPER, SHIFT CAM

25350-28C20

Unavailable

22

PLATE, SHIFT CAM STOPPER | MODEL W/X

25381-28C20

Unavailable

22

PLATE, SHIFT CAM STOPPER | MODEL Y

25381-36E00

Unavailable

23

BOLT

09111-06041

$2.63

24

SPRING

09448-18024

Unavailable

25

WASHER

08211-06121

$1.56

26

SHAFT, GEAR SHIFT

25510-37E00

Unavailable

27

STOPPER, GEAR SHIFT ARM

25671-38B00

$6.00

28

WASHER (14X20X1)

09181-14139

$2.66

29

SEAL, SHIFT SHAFT (14X22X6)

09283-14006

$6.04

30

SPRING, SHIFT RETURN

09444-20005

$8.47

31

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

32

NO DESCRIPTION AVAILABLE | MODEL W/X This part replaces 25600-36E10.

25600-36E11

Unavailable

32

LEVER ASSY,GEAR | MODEL Y; Includes Item(s) 33 This part replaces 25600-36E20.

25600-36E21

Unavailable

33

RUBBER,GEAR SHI This part replaces 25652-27C00.

25652-27C01

$25.80

34

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43
