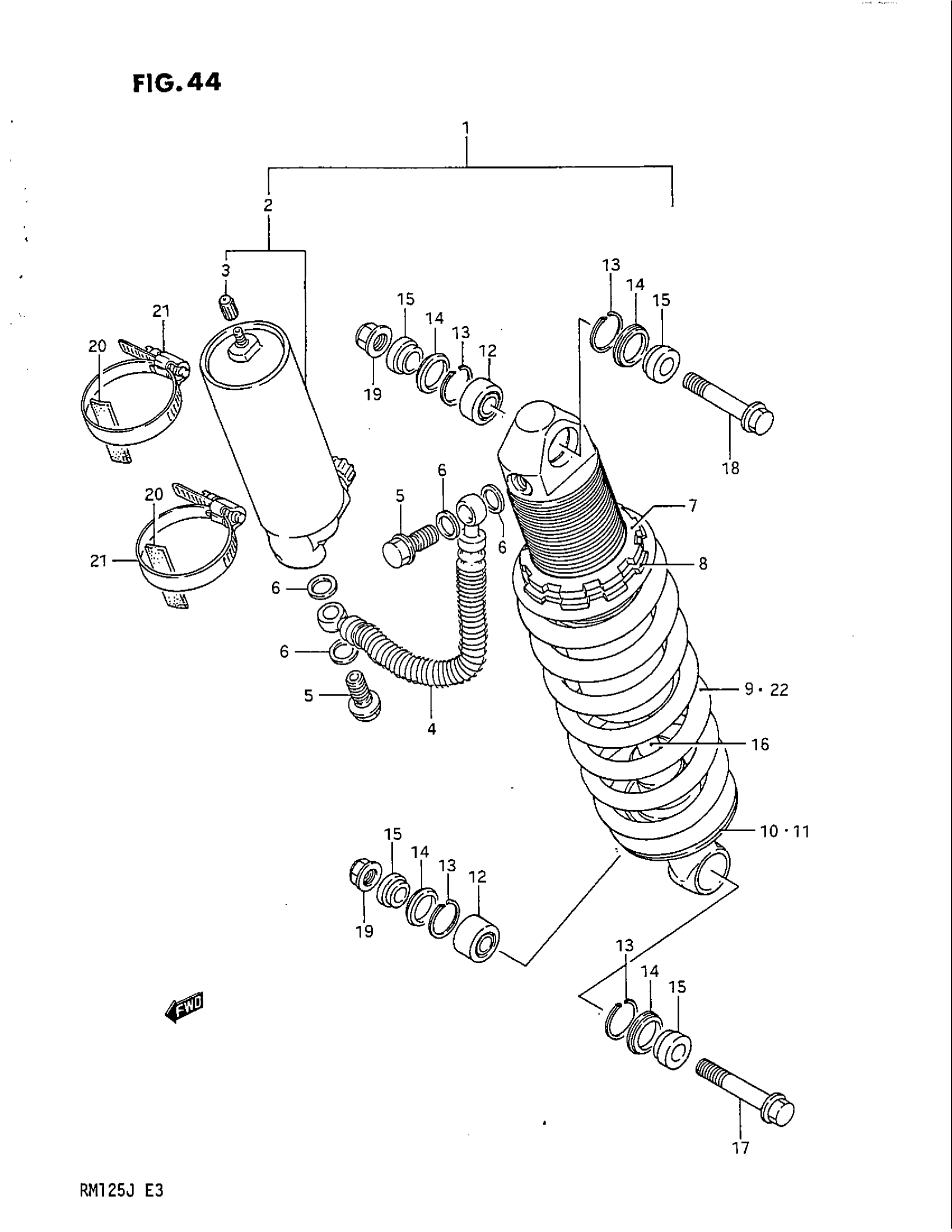

Find the part on the Shock Absorber diagram for your 1988 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki RM125 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOCK ABSORBER ASSY, REAR | YELLOW; Includes Item(s) 2 - 16

62100-01B10-163

1
Out of stock

2

TANK

62270-01B00

1
Out of stock

3

CAP

51294-20400

1
Out of stock

4

HOSE

62280-00B00

1
Out of stock

5

BOLT

62281-14140

2
Out of stock

6

GASKET

51148-41310

4
Out of stock

7

NUT

62194-01B00

1
Out of stock

8

GUIDE, SPRING

62191-01B00

1
Out of stock

9

SPRING

62211-01B00

1
Out of stock

10

WASHER

62224-14520

1
Out of stock

11

GUIDE, SPRING

62225-00B00

1
Out of stock

12

BEARING, REAR (10x24x14.5) This part replaces 62175-43400.

62175-00B00

2
Out of stock

13

RING, STOPPER This part replaces 62277-14200.

62657-34A01

4
Out of stock

14

DUST SEAL

62226-14520

4
Out of stock

15

COLLAR

62684-14520

4
Out of stock

16

ROD, PISTON

62120-01B00

1
Out of stock

17

BOLT (10X58) This part replaces 62311-14500.

09103-10428

1
Out of stock

18

BOLT, LOWER (10X54) This part replaces 62648-01B00.

62311-28E00

1
Out of stock

19

NUT

08319-31107

2
Out of stock

20

CUSHION, TANK

62423-01B01

2
Out of stock

21

CLAMP This part replaces 09402-70501.

09402-70503

2
Out of stock

22

SPRING (SOFT) | OPT

62211-01B07

1
Out of stock
