1988 Suzuki RM125 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1988 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

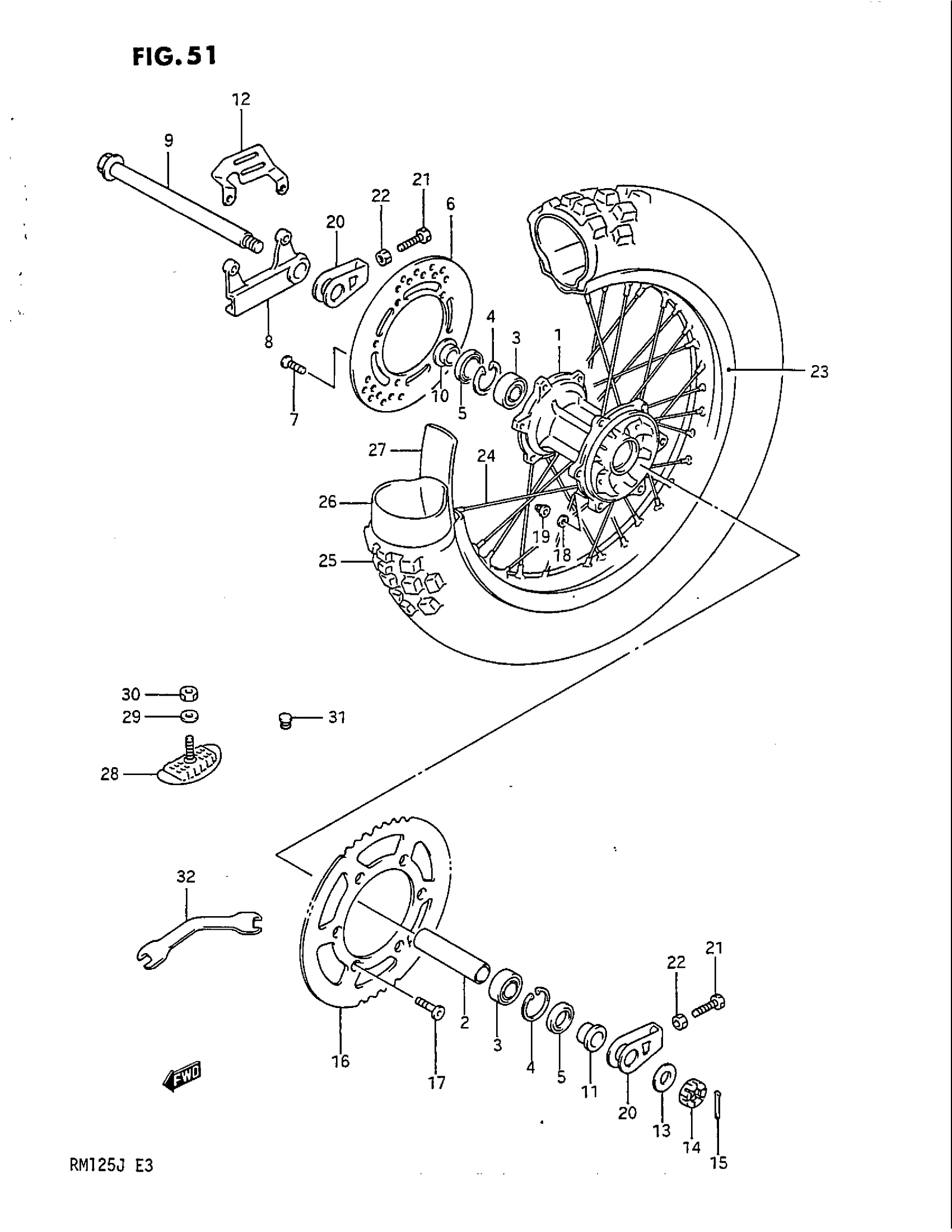

1988 Suzuki RM125 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR This part replaces 64110-00B22.

64110-27C01

1
Out of stock

2

SPACER, BEARING

64731-00B22

1
Out of stock

3

BEARING This part replaces 08123-62047.

08123-6204B

2
Out of stock

4

CIRCLIP This part replaces 08331-41478.

08331-41479

2
Out of stock

5

2

$11.46

In stock

6

DISC, REAR BRAKE

69211-00B20

1
Out of stock

7

SCREW

02122-06167

6
Out of stock

8

BRACKET, CALIPER

69721-00B30

1
Out of stock

9

AXLE, REAR

64711-01B30

1
Out of stock

10

SPACER, RH

64741-00B21

1
Out of stock

11

SPACER, LH

64751-00B30

1
Out of stock

12

GUARD, REAR CAILPER

69725-26C01

1
Out of stock

13

WASHER This part replaces 09160-19010.

09160-19022

1
Out of stock

14

1

$5.49

In stock

15

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

16

1

$172.72

In stock

16

SPROCKET, REAR (NT:52) | OPT ALUMINIUM

64511-40266

1
Out of stock

16

SPROCKET, REAR (NT:51) | OPT STEEL

64511-00B21

1
Out of stock

16

SPROCKET, REAR (NT:52) | OPT STEEL

64511-00B31

1
Out of stock

17

SCREW

09120-08004

6

$2.95

In stock

18

WASHER

09164-08011

6

$2.92

In stock

19

NUT

08319-31087

6

$2.48

In stock

20

ADJUSTER, CHAIN

61410-00B30

2
Out of stock

21

BOLT

09100-08271

2
Out of stock

22

2

$1.93

In stock

23

RIM, WHEEL (1.85X18AL)

65311-01B20

1
Out of stock

24

SPOKE ASSY, WHEEL This part replaces 65320-01B20.

65320-26C00

1
Out of stock

25

TIRE, REAR (100/100-18) DUNLO | DUNLOP This part replaces 65100-01B10.

65100-27C00

1
Out of stock

27

PROTECTOR, INNER TUBE This part replaces 65261-14540.

65261-15D00

1
Out of stock

28

1

$66.32

In stock

29

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

30

1

$1.93

In stock

31

CAP

09250-08013

1
Out of stock

32

SPANNER, OPEN

09813-00039

1
Out of stock
