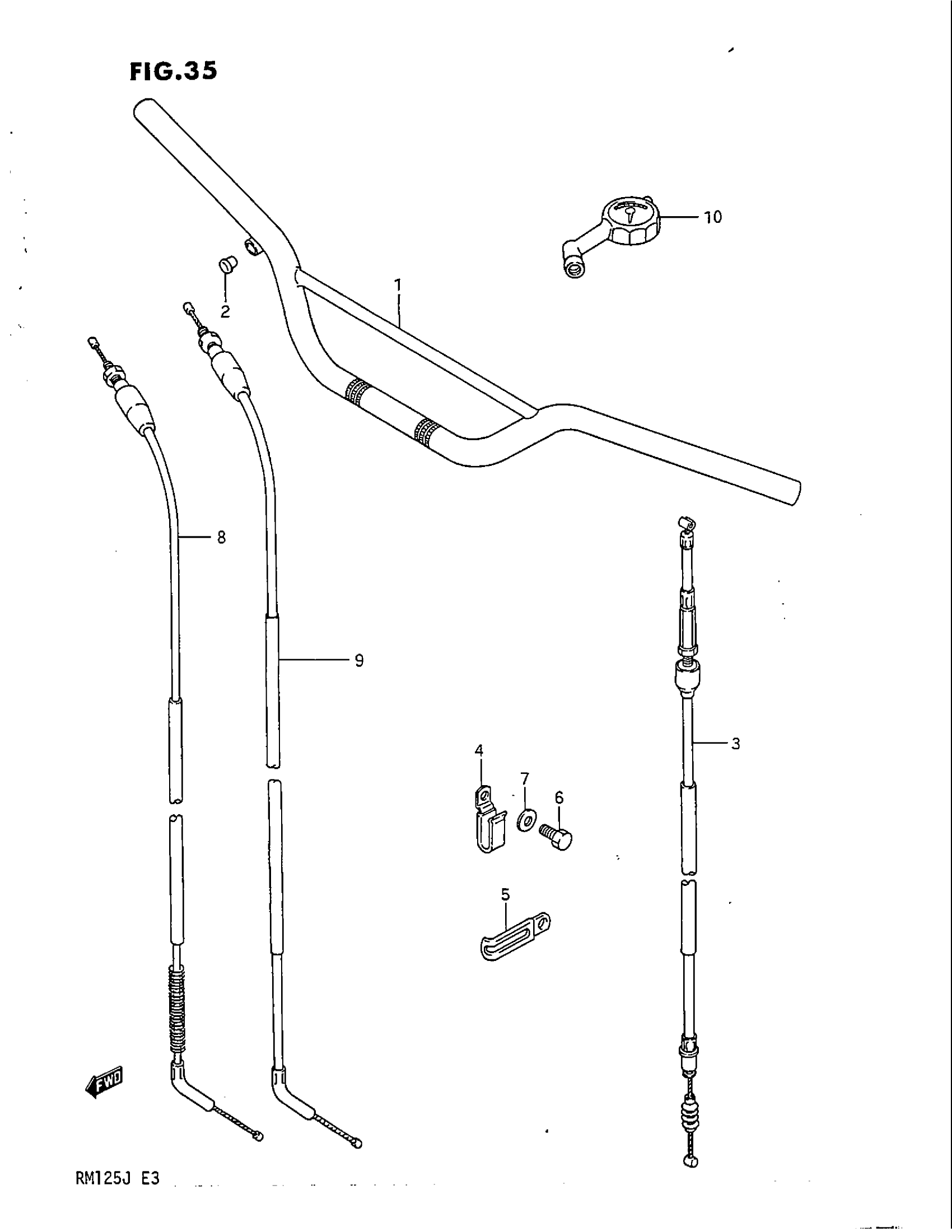

Suzuki RM125 (1988) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLUE) | MODEL G/H

56110-14610-25F

Unavailable

1

HANDLEBAR (SILVER) | MODEL J This part replaces 56110-26C00-291.

56110-27C00-13L

Unavailable

2

PLUG

09250-10001

$1.88

3

CABLE ASSY, CLU | MODEL G This part replaces 58210-01B00.

58210-00BV0

Unavailable

3

CABLE ASSY, CLU | MODEL H/J This part replaces 58210-01B01.

58210-00BV0

Unavailable

4

CLAMP | MODEL G This part replaces 09403-06307.

09403-06329

$2.52

5

CLAMP(L:80) | MODEL H/J This part replaces 09404-06417.

09404-06036

$1.76

6

BOLT This part replaces 01107-06127.

01500-06127

$1.97

7

WASHER This part replaces 08322-21067.

08322-01067

$1.86

8

CABLE, THROTTLE | MODEL G/H This part replaces 58300-14500.

58300-40X03

Unavailable

9

CABLE ASSY,THRO | MODEL J This part replaces 58300-26C00.

58300-26C03

Unavailable

10

GAUGE, FRONT FORK AIR | MODEL G

96200-41330

Unavailable
