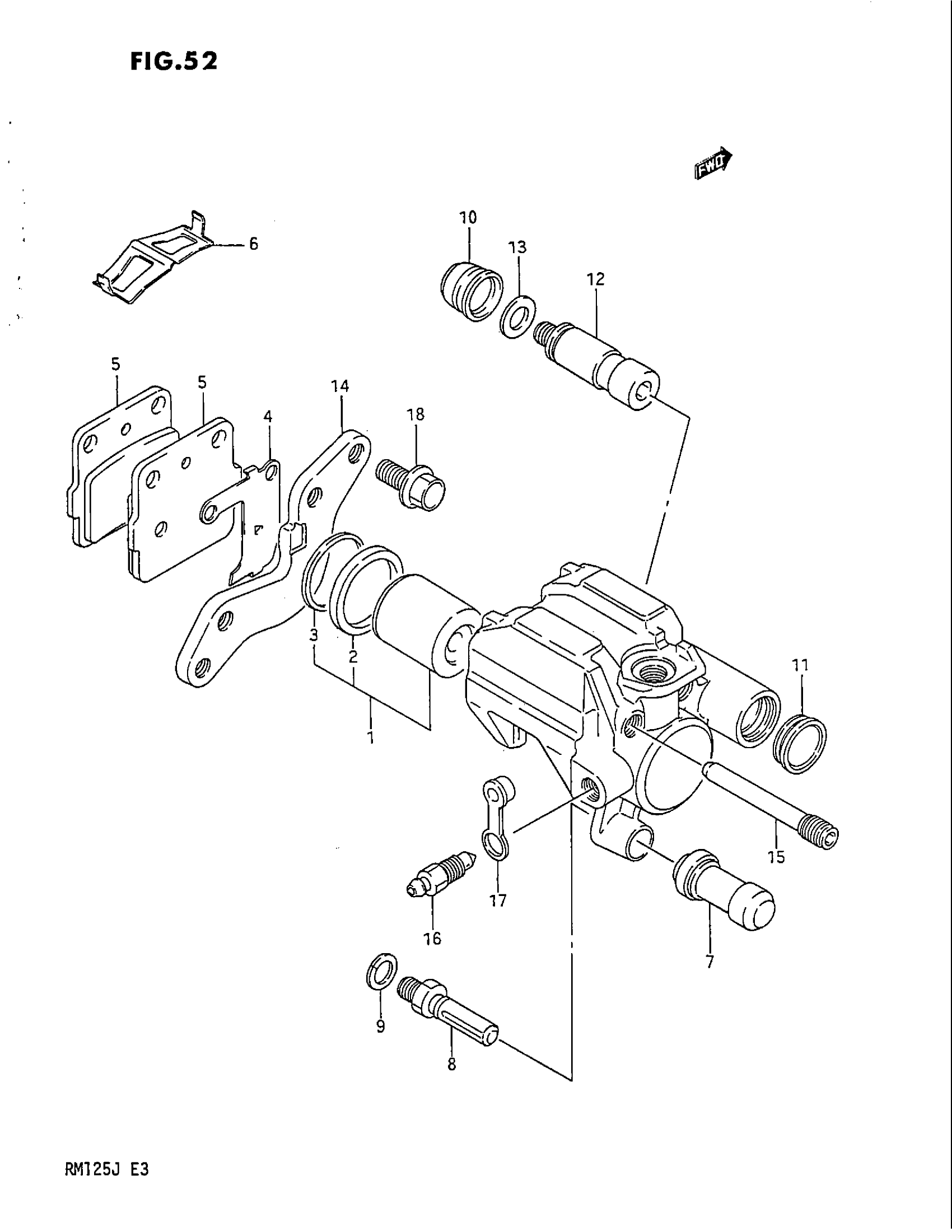

Suzuki RM125 (1988) REAR CALIPERS (MODEL J) Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 17 This part replaces 69100-26C00.

69100-26CV0

Unavailable

1

PISTON SET

69100-00820

Unavailable

2

SEAL SET, PISTON This part replaces 59107-00B20.

69100-36810

$8.50

3

SEAL, DUST

59108-00B20

Unavailable

4

SHIM

69372-00B20

$12.43

5

NO DESCRIPTION AVAILABLE This part replaces 69140-26C00.

69100-26820

Unavailable

6

SPRING

59315-13A00

$12.43

7

BOOT

59386-13A00

$7.28

8

PIN

59382-13A00

$7.24

9

WASHER

59314-13A00

$2.28

10

BOOT

59303-13A00

$5.46

11

PLUG, DUST

59384-13A00

$4.93

12

PIN

59305-13A01

$22.60

13

SPRING

59306-13A00

$3.57

14

BRACKET

69351-00B20

Unavailable

15

PIN This part replaces 69345-00B20.

59345-00B20

$13.38

16

BLEEDER

59121-01A00

$7.99

17

CAP

59122-01A00

$3.97

18

BOLT, FRONT RH This part replaces 09103-08238.

09103-08259

$4.90
