1988 Suzuki RM125 Rear Brake Diagram

← All diagrams

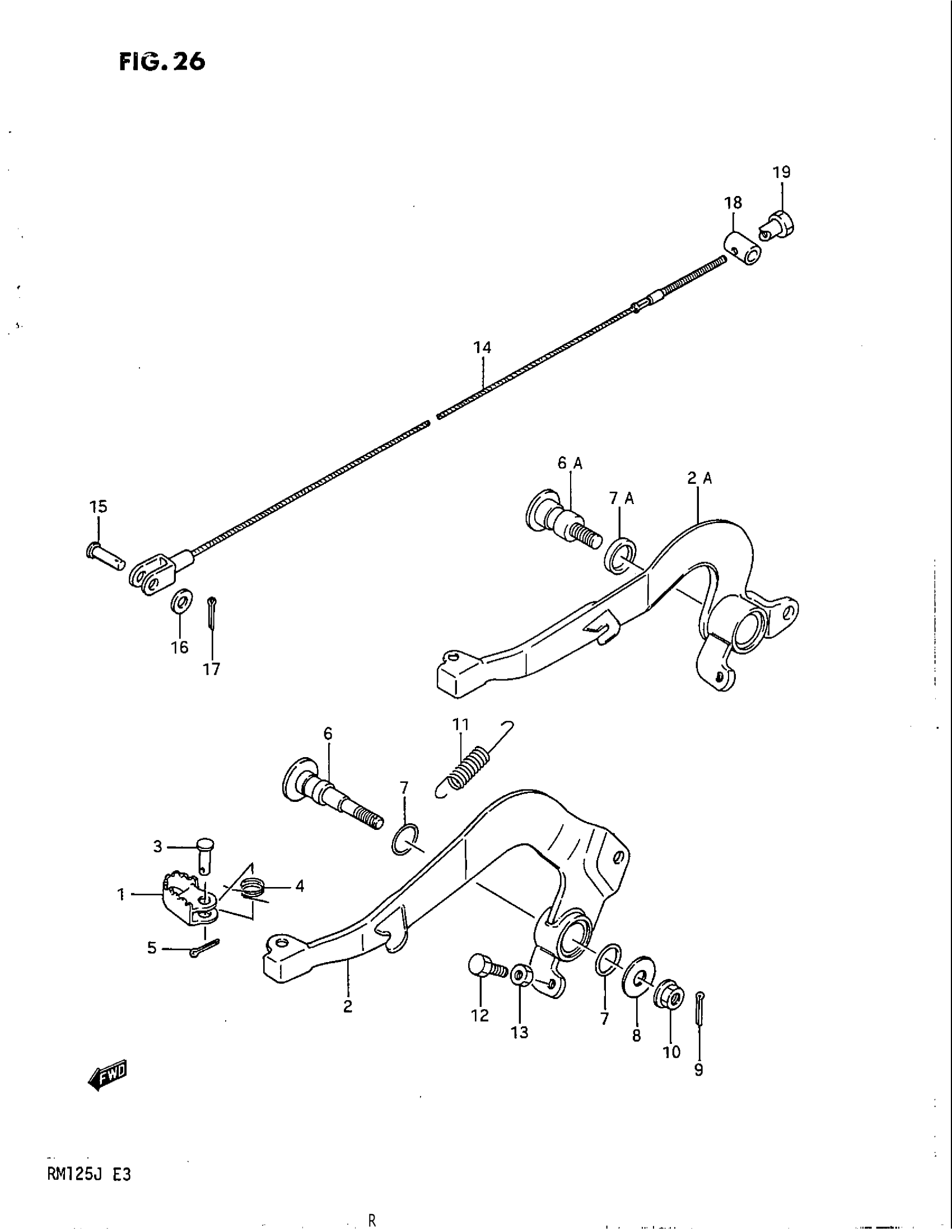

Find the part on the Rear Brake diagram for your 1988 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki RM125 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE | MODEL G

43110-14130

1
Out of stock

1

PEDAL, BRAKE | MODEL H/J

43110-01B10

1
Out of stock

2

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 43120-01B01.

43120-01B11

1
Out of stock

2

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 43120-01B10.

43120-01B11

1
Out of stock

2A

ARM, REAR BRAKE | MODEL J

43120-01B30

1
Out of stock

3

PIN | MODEL G

09200-06038

1
Out of stock

3

PIN | MODEL H/J

09200-06060

1
Out of stock

4

SPRING | MODEL G This part replaces 09444-11004.

09444-11005

1
Out of stock

4

SPRING | MODEL H/J

09444-11005

1
Out of stock

5

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

6

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 43142-01B00.

43142-01B01

1
Out of stock

6

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 43142-01B10.

43142-01B01

1
Out of stock

6A

SHAFT, BRAKE PEDAL | MODEL J This part replaces 43142-01B30.

43142-27C00

1
Out of stock

7

O RING (ID:14.8,D:2.40) | MODEL G/H This part replaces 09280-15001.

09280-15003

2
Out of stock

7A

DUST SEAL | MODEL J

09284-15005

2
Out of stock

8

THRUST WASHER

08211-10261

1
Out of stock

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

10

NUT This part replaces 08319-31085.

08319-3108A

1
Out of stock

11

SPRING | MODEL G This part replaces 09443-13020.

09443-13023-XC0

1
Out of stock

11

SPRING | MODEL H/J This part replaces 09443-13023.

09443-13023-XC0

1
Out of stock

12

BOLT, GEAR SHIFT LINK | MODEL G This part replaces 01107-06205.

01500-0620A

1
Out of stock

12

BOLT | MODEL H This part replaces 01107-06207.

01500-06207

1
Out of stock

12

BOLT | MODEL J

09100-06009

1
Out of stock

13

NUT | MODEL G This part replaces 08310-11065.

08310-0006A

1
Out of stock

13

.NUT | MODEL H/J This part replaces 08310-12068.

08310-00067

1
Out of stock

14

CABLE ASSY, REAR BRAKE | MODEL G/H

58510-01B00

1
Out of stock

15

PIN | MODEL G/H

09200-05001

1
Out of stock

16

WASHER | MODEL G/H This part replaces 08322-21067.

08322-01067

1
Out of stock

17

COTTER PIN | MODEL G/H This part replaces 04111-20208.

04111-2020A

1
Out of stock

18

PIN, ADJUSTER | MODEL G/H

09209-13004

1
Out of stock

19

.NUT | MODEL G/H This part replaces 09150-06009.

09150-06010

1
Out of stock
