1978 Suzuki RM125 Stand - Footrest Diagram

← All diagrams

Find the part on the Stand - Footrest diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

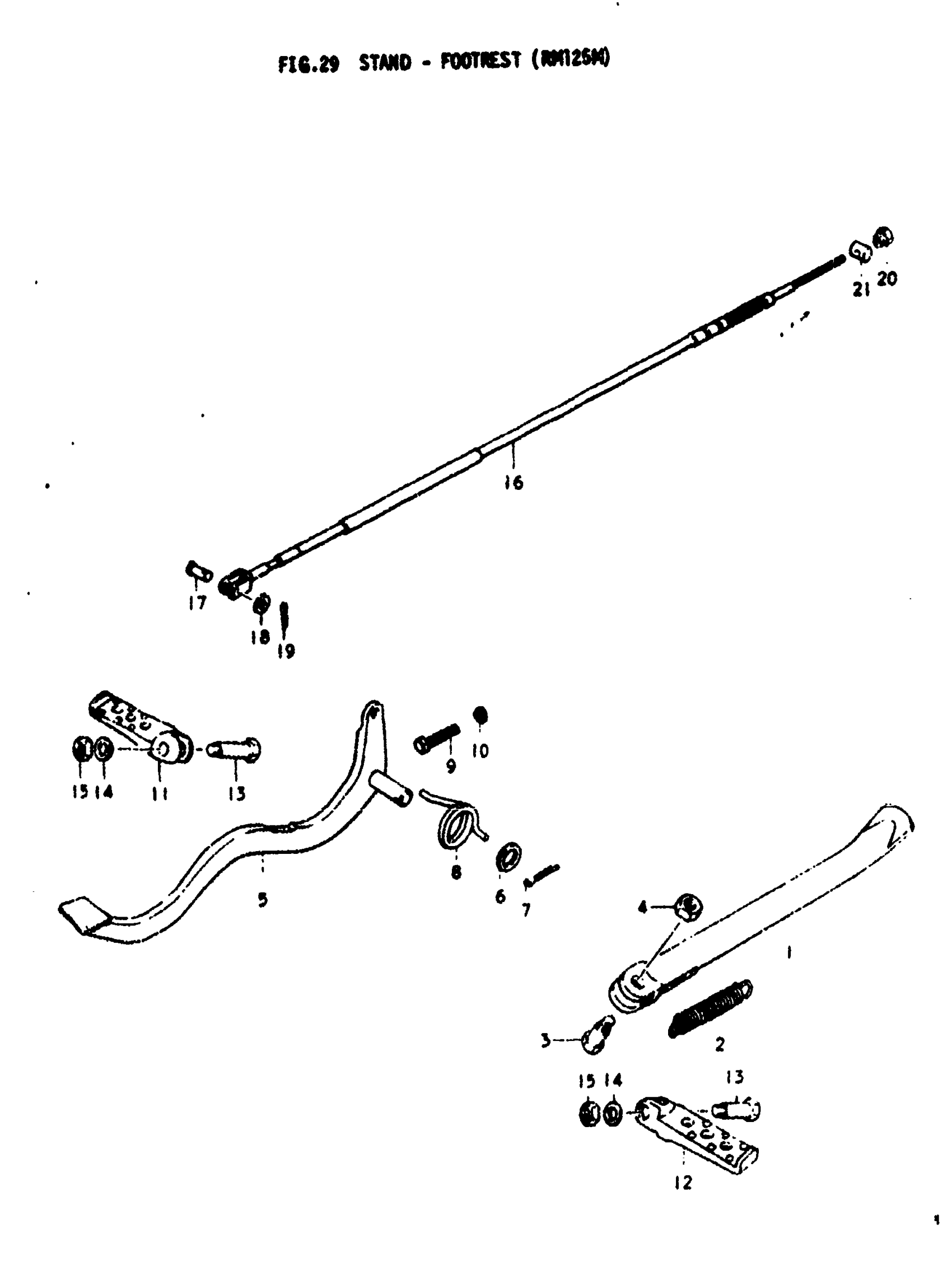

1978 Suzuki RM125 Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP | TO 42310-41100 This part replaces 42310-16500.

42310-41100

1
Out of stock

2

SPRING This part replaces 09443-14005.

09443-14017

1
Out of stock

3

BOLT | 10x30

09100-10067

1
Out of stock

4

NUT This part replaces 08312-32108.

08310-00107

1
Out of stock

5

PEDAL, BRAKE

43110-28301

1
Out of stock

6

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

7

PIN This part replaces 04111-30208.

04111-3020A

1
Out of stock

8

SPRING This part replaces 09448-32004.

09448-32004-XC0

1
Out of stock

9

BOLT | 6x40

09100-06003

1
Out of stock

10

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

11

FOOTREST, RH

43511-30100

1
Out of stock

12

FOOTREST, LH

43521-30100

1
Out of stock

13

BOLT

09111-06018

2
Out of stock

14

WASHER This part replaces 08322-21068.

08322-01067

4
Out of stock

15

.NUT This part replaces 08311-11068.

08310-00067

2
Out of stock

16

CABLE ASSY, REAR BRAKE This part replaces 58510-41000.

58510-28000

1
Out of stock

17

PIN

09200-05001

1
Out of stock

18

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

19

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

20

.NUT This part replaces 09150-06001.

09150-06010

1
Out of stock

21

PIN

09209-11002

1
Out of stock
