1978 Suzuki RM125 Frame - Seat (RM125A Diagram

← All diagrams

Find the part on the Frame - Seat (RM125A diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

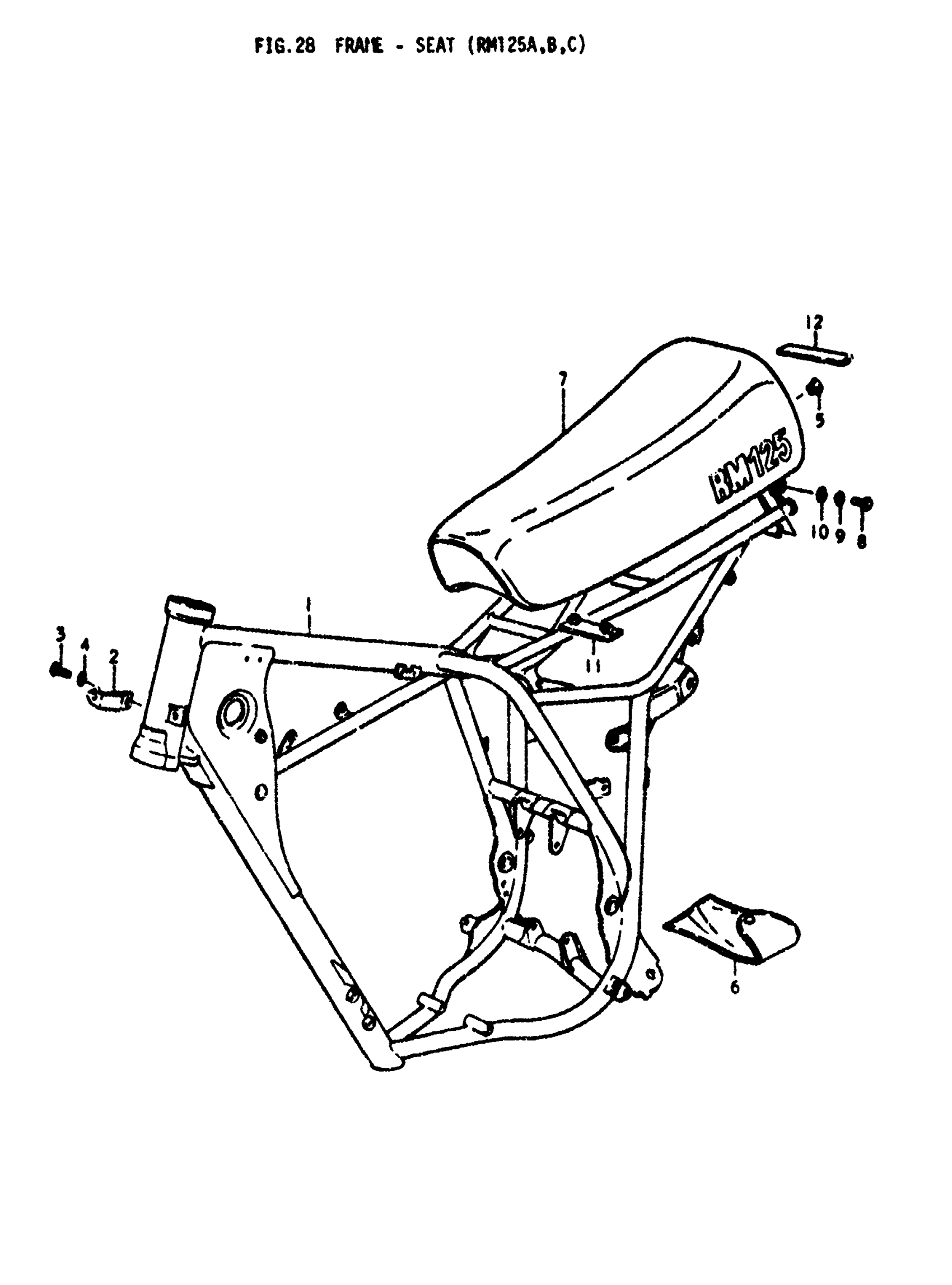

1978 Suzuki RM125 Frame - Seat (RM125A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME | A; TO 41100-41301-019 USED WITH 13700-41311, 14770-41320 AND 08312-11088. This part replaces 41100-41300-019.

41100-41301-019

1
Out of stock

1

FRAME | A; F.NO.36069~

41100-41301-019

1
Out of stock

1

FRAME | B This part replaces 41100-41302-019.

41100-41303-019

1
Out of stock

1

FRAME | C

41100-41303-019

1
Out of stock

2

BRACKET, CDI UNIT | A,B,C

41890-41300

1
Out of stock

3

BOLT | A,B,C This part replaces 01107-06128.

01500-06127

1
Out of stock

5

PLUG | C

09250-11003

1
Out of stock

6

TOOL SET | A,B,C

09800-00028

1
Out of stock

7

NO DESCRIPTION AVAILABLE | A,B; FROM 45100-41301-403 This part replaces 45100-41301-865.

45100-41622-865

1
Out of stock

7

NO DESCRIPTION AVAILABLE | C This part replaces 45100-41310-865.

45100-41622-865

1
Out of stock

10

WASHER | A,B,C This part replaces 08322-21088.

08322-01087

2
Out of stock

11

CUSHION | A,B,C

09321-08009

5
Out of stock

12

CUSHION | A,B,C

45299-41000

1
Out of stock
