1978 Suzuki RM125 Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

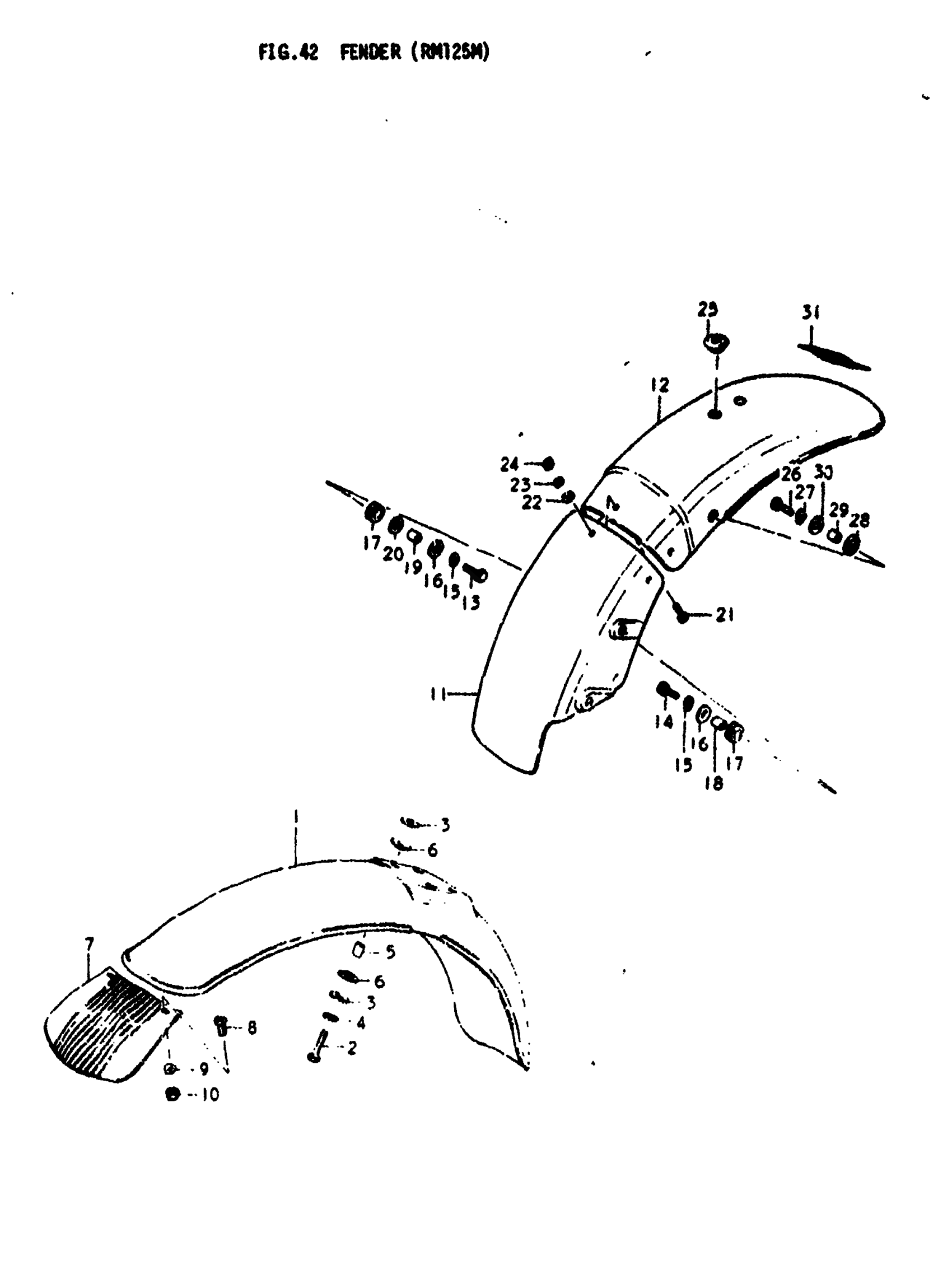

1978 Suzuki RM125 Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

53111-28300-163

1
Out of stock

2

BOLT This part replaces 01112-06258.

01500-06257

4
Out of stock

3

WASHER (6.5X24X1.2) | 6.5x24x1.2 This part replaces 09160-06002.

09160-06114

6
Out of stock

4

4

$2.28

In stock

5

SPACER | 6.5x10.5x13.5 This part replaces 09180-06046.

09180-06292

4
Out of stock

6

CUSHION

09320-10003

8
Out of stock

7

GUARD, MUD This part replaces 53311-40000.

53311-40002

1
Out of stock

8

SCREW This part replaces 02141-05127.

02142-05127

3
Out of stock

9

WASHER (5.5X18X1) This part replaces 09160-05003.

09160-05045

3
Out of stock

10

NUT

09159-05005

3
Out of stock

11

BODY, REAR FENDER FRONT

63112-41000

1
Out of stock

12

BODY, REAR FENDER REAR | TO 63113-41000-163

63113-28301-163

—
Out of stock

12

BODY, REAR FENDER REAR | F.NO.21346~

63113-41000-163

1
Out of stock

13

BOLT This part replaces 01112-06258.

01500-06257

1
Out of stock

14

BOLT This part replaces 01112-06208.

01500-06207

1
Out of stock

15

2

$2.28

In stock

16

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

17

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

18

SPACER | 6.1x9x7.5

09180-06038

1
Out of stock

19

SPACER (6.1X8X12) | 6.1x8x12 This part replaces 09180-06035.

09180-06249

1
Out of stock

20

CUSHION

09320-08010

1
Out of stock

21

SCREW This part replaces 02141-05127.

02142-05127

3
Out of stock

22

WASHER This part replaces 08322-11058.

08322-01057

3
Out of stock

23

LOCK WASHER This part replaces 08321-21058.

08321-0105A

3
Out of stock

24

NUT This part replaces 08311-11058.

08310-00057

3
Out of stock

25

PLUG | ~F.NO.21345

09250-15004

—
Out of stock

26

BOLT | 6x18

09100-06064

2
Out of stock

27

2

$2.28

In stock

28

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

29

SPACER

09180-06038

2
Out of stock

30

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

2
Out of stock

31

EMBLEM, SUNRISE

68149-41001

1
Out of stock
