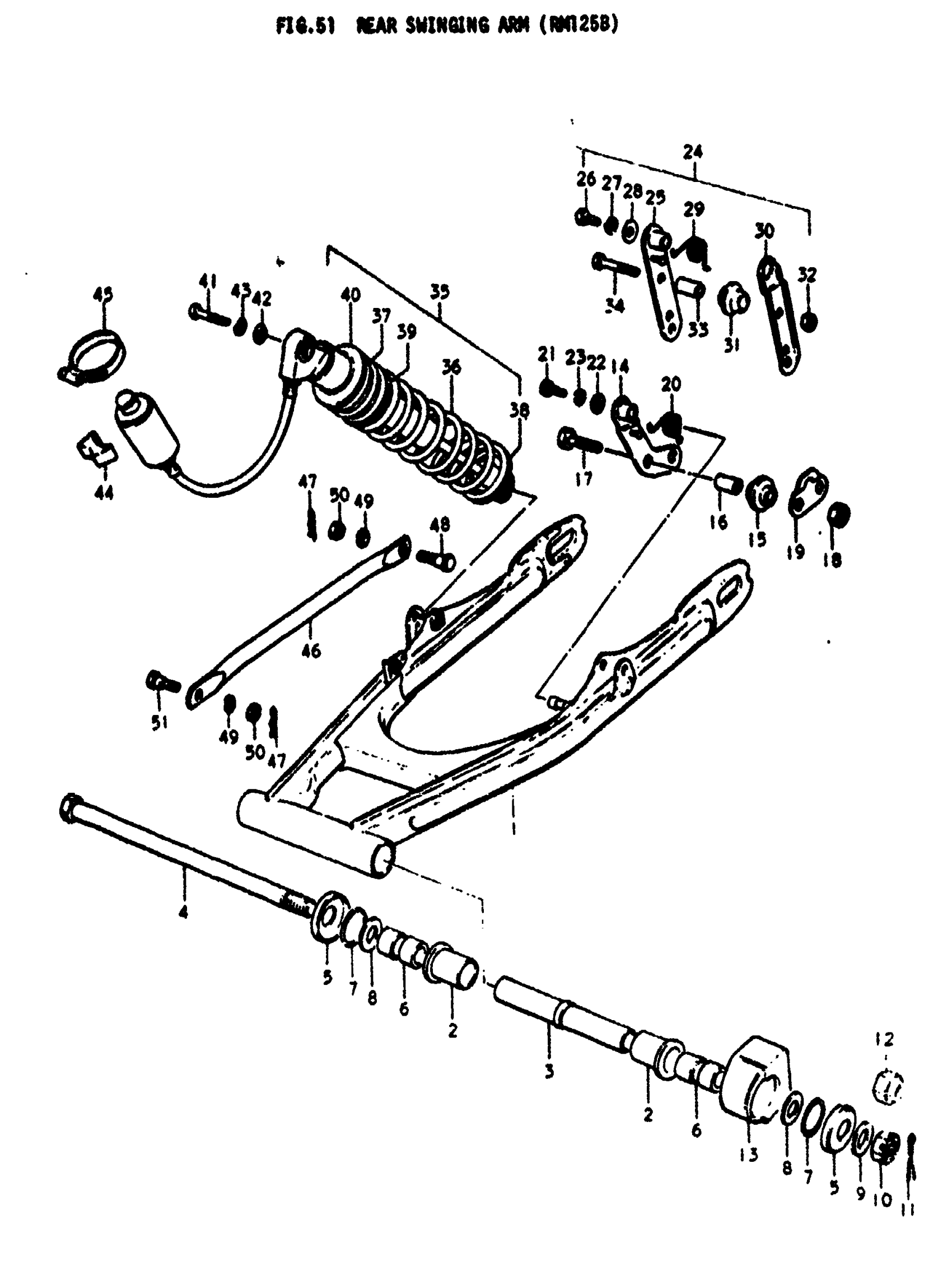

Suzuki RM125 (1978) REAR SWINGING ARM (RM125B) Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 3

61100-41860-019

Unavailable

2

BUSHING

09307-18002

$9.22

3

SPACER, CENTER

61280-28000

Unavailable

4

SHAFT, PIVOT | TO 61211-41301 USED WITH 08319-21128 This part replaces 61211-41300.

61211-41301

Unavailable

4

SHAFT, PIVOT

61211-41301

Unavailable

5

COVER

61262-09200

$3.38

6

SPACER

61251-28000

$12.24

7

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

8

THRUST WASHER | 12.5x24x2.3

09160-12005

$2.21

9

WASHER This part replaces 08322-11128.

08322-01127

$1.86

10

NUT This part replaces 08314-41128.

08314-4012A

$2.53

11

PIN This part replaces 04111-30208.

04111-3020A

$1.63

12

NUT This part replaces 08319-21128.

08319-2112A

$3.38

13

BUFFER, CHAIN DEFENSE | TO 61273-41301 This part replaces 61273-41300.

61273-41301

Unavailable

14

CHAIN TENSIONER | TO 61350-41300 USED WITH 61352-41300 This part replaces 61350-41401.

61350-41301

Unavailable

15

ROLLER This part replaces 61345-41100.

61345-41101

$5.49

16

SPACER | 6.5x10.5x22.5

09180-06067

$2.36

17

BOLT This part replaces 01112-06358.

64455-07L00

$1.61

18

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

19

PLATE, CHAIN TENSIONER

61352-41401

Unavailable

20

SPRING | TO 09448-25003 This part replaces 09448-25002.

09448-25003

Unavailable

21

BOLT This part replaces 01112-06128.

01500-06127

$1.97

22

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.77

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

24

NO DESCRIPTION AVAILABLE | Includes Item(s) 25 - 34 This part replaces 61300-41810.

61300-41811

Unavailable

25

CHAIN TENSIONER This part replaces 61350-41300.

61350-41301

Unavailable

26

BOLT This part replaces 01107-06128.

01500-06127

$1.97

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

28

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.77

29

SPRING

09448-25003

Unavailable

30

TENSIONER OUT P This part replaces 61352-41300.

61352-41301

Unavailable

31

ROLLER This part replaces 61345-41100.

61345-41101

$5.49

32

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

33

SPACER | 6.5x10.5x22.5

09180-06067

$2.36

34

BOLT This part replaces 01107-06358.

64455-07L00

$1.61

35

NO DESCRIPTION AVAILABLE | Includes Item(s) 36 - 40 This part replaces 62100-41311.

62100-41312

Unavailable

36

SPRING, NO.1

62211-41311

Unavailable

37

SPRING, NO.2

62212-41311

Unavailable

38

GUIDE, SPRING

62225-40600

Unavailable

39

GUIDE, SPRING CENTER

62221-41650

Unavailable

40

SEAT, SPRING

62191-41650

Unavailable

41

BOLT 10X 40 | 10x40.5 This part replaces 09100-10096.

09100-10184

$2.90

42

WASHER This part replaces 08322-11108.

08322-01107

$1.88

43

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

44

CUSHION

62331-41630

Unavailable

45

CLAMP

62332-41631

Unavailable

46

TORQUE LINK REA This part replaces 64311-28000.

64311-28000-019

$21.23

47

CLIP This part replaces 09385-10001.

09385-10005

$1.50

48

BOLT

09111-08013

$2.80

49

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

50

NUT

09140-08008

$1.45

51

BOLT

09111-08015

$2.90
