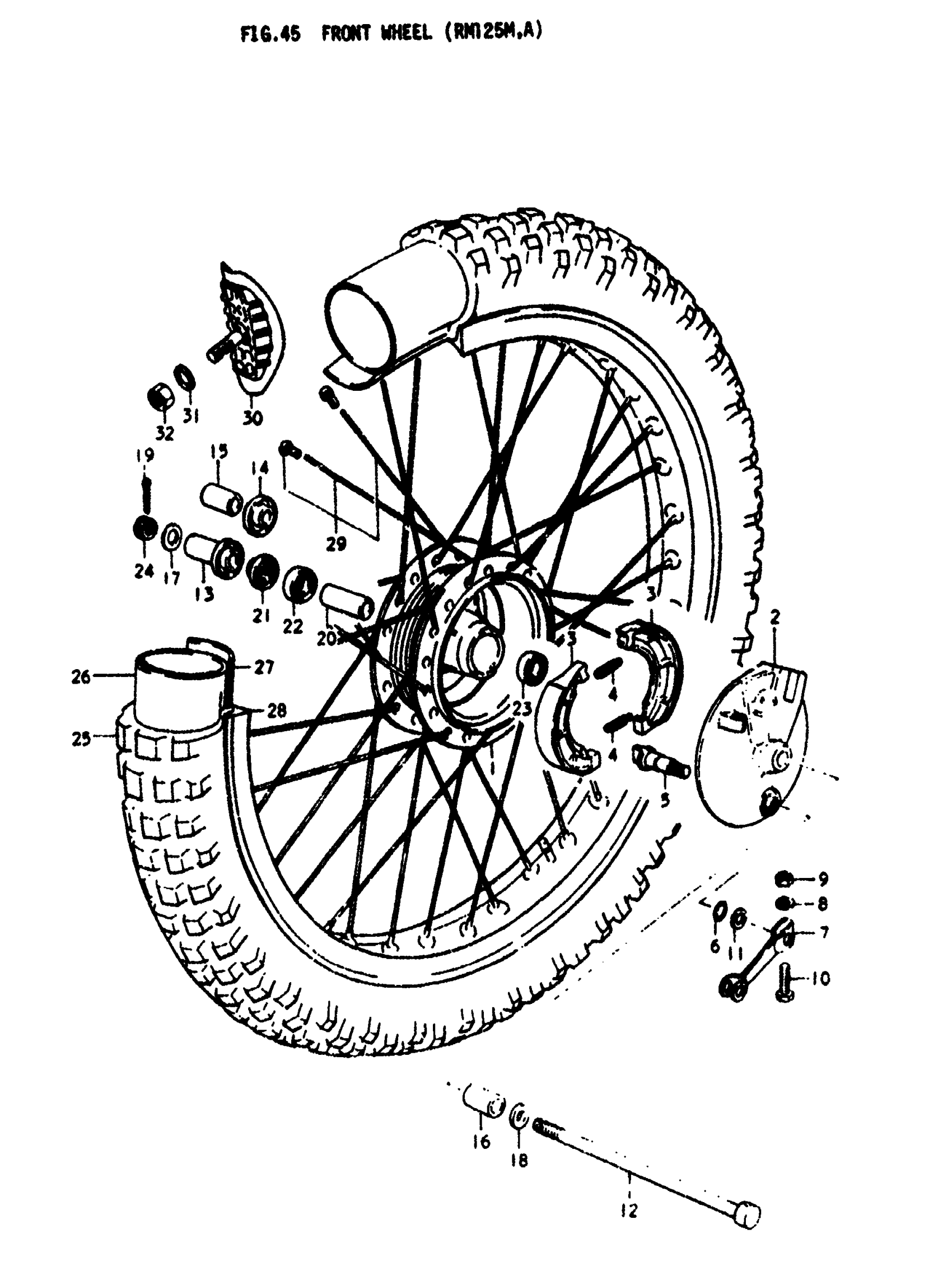

Suzuki RM125 (1978) FRONT WHEEL (RM125M Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | M,A This part replaces 54110-16501.

54110-16502

Unavailable

2

PANEL, FRONT NUT | M,A

54210-32101

Unavailable

3

SHOE SET, BRAKE | M,A This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING | M,A This part replaces 09443-07001.

09443-07025

$1.68

5

CAM, BRAKE | M,A

54441-01002

$21.23

6

DUST SEAL | M,A

09280-12001

$3.25

7

LEVER, BRAKE CAM | M,A

54451-16500

Unavailable

8

WASHER | M,A This part replaces 08322-21068.

08322-01067

$1.86

9

.NUT | M,A This part replaces 08311-11068.

08310-00067

$1.83

10

BOLT, ADJUSTER | M,A; 6x31 This part replaces 09100-06050.

09100-06150

$2.00

11

WASHER | M,A; 12.5x20x1

09160-12011

$1.48

12

AXLE, FRONT | M,A This part replaces 54711-16502.

54711-16504

Unavailable

13

SPACER | MM

54740-16502

Unavailable

14

SPACER | AA

54740-41300

Unavailable

15

SPACER | A; 12x20x35.5A; 12x20x35.5

09180-12072

Unavailable

16

SPACER | M; 12x20x34.5M; 12x20x34.5

09180-12063

$7.95

17

WASHER | M,A This part replaces 08322-21128.

08322-01127

$1.86

18

SPACER | M,A; 12.2x22x5

09180-12058

Unavailable

19

PIN | M,A This part replaces 04111-30308.

04111-3030A

$1.37

20

SPACER | M,A

54730-07000

Unavailable

21

SEAL,OIL(17X38X | M,A This part replaces 09284-18001.

09284-18006

$5.55

22

BEARING, RH | M,A

08113-63010

$21.27

23

B1 12X37X12 BEA | M,A This part replaces 08143-63010.

08143-6301B

$17.58

24

NUT | M,A This part replaces 08314-31128.

08314-3112A

$2.42

25

TIRE, FRONT (3.00-21) | M; 3.00-21 This part replaces 55100-16511.

55100-14230

Unavailable

25

TIRE, FRONT | A; 3.00-21

55100-41310

Unavailable

26

TIRE, FRONT | M,A; 3.00-21 This part replaces 55200-16510.

55200-16511

$34.58

27

PROTECTOR, INNER TUBE | M,A; 25x21 This part replaces 55261-16510.

55261-14540

$3.61

28

RIM, WHEEL | M,A; 1.60x21

55311-28322

Unavailable

29

NO DESCRIPTION AVAILABLE | M; TO 55300-41810 This part replaces 55301-16823.

55300-41811

Unavailable

29

NO DESCRIPTION AVAILABLE | A This part replaces 55300-41810.

55300-41811

Unavailable

30

STOPPER, BEAD | M,A This part replaces 65270-30001.

65270-43D00

$66.32

31

WASHER | M,A This part replaces 08322-11088.

08322-01087

$1.86

32

NUT | M,A This part replaces 08312-11088.

08310-00087

$1.83
