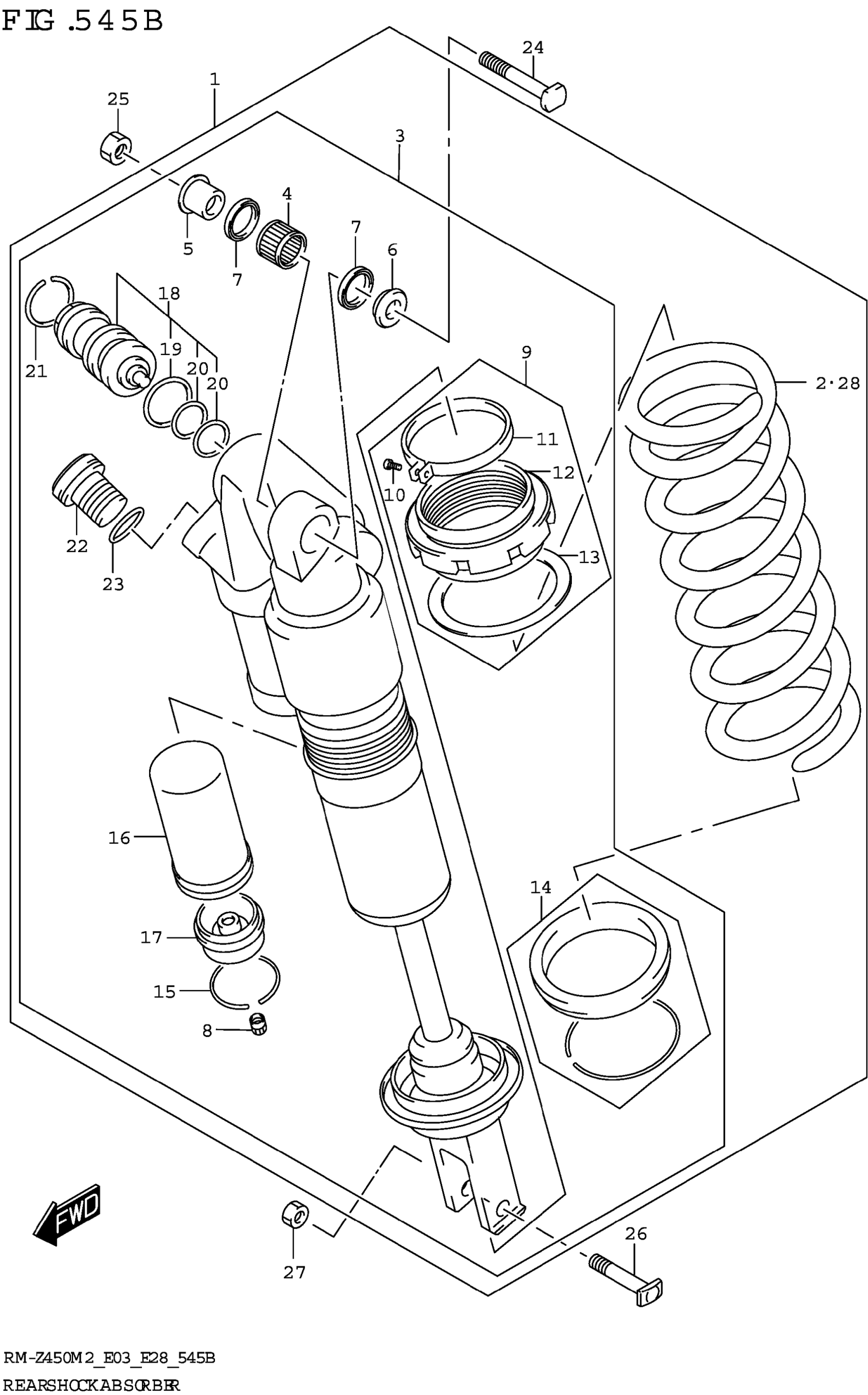

Suzuki RM-Z450M2 (2022) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY,RR SHOCK (BLACK

62100-37K31-019

$1,356.58

2

.SPRING,RR (K=56N/MM,BLACK)

62211-37K20-019

$206.85

3

.SPRING SEAT SET

62220-36F00

$86.03

4

.SPACER,UPPER BRG,R

62684-36F00

$23.07

5

.SPACER,UPPER BRG,L

62685-36F00

$13.36

6

.DAMPER REAR

62210-37K31

$1,479.88

7

.BEARING (16X22X12)

09263-16033

$20.26

8

OIL SEAL (16X22X2.5)

09284-16005

$6.95

9

ADJUSTER SET

62190-37K00

$68.35

10

..BOLT,GUIDE BOOT

51579-29EC0

$2.85

11

..LOCK,SPRING ADJUSTER

62197-37K00

$8.93

12

..ADJUSTER,SPRING

62191-37K00

$43.47

13

.SPRING SEAT

62224-37K00

$17.72

14

..BLADDER

62273-43D10

$29.47

15

..CAP,CHAMBER

62275-37K00

$38.22

16

..RING,STOPPER

62279-27C40

Unavailable

17

..CAP,AIR VALVE

52194-46686

Unavailable

18

..BOLT,PLUG

62130-37K00

$126.97

19

...O-RING

62156-37K00

$5.17

20

...O-RING

51134-28H40

$4.88

21

..RING,STOPPER

62132-37K00

$5.98

22

..CAP

62133-37K00

$36.35

23

..O-RING

62154-37K00

$2.48

24

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

$9.85

25

NUT

09159-10067

$6.11

26

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

27-1

SPRING,RR (K=52N/MM,BLACK)

62211-37K10-019

$206.85

27-2

SPRING,RR (K=54N/MM,BLACK)

62211-37K00-019

$206.85
