2022 Suzuki RM-Z450M2 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2022 Suzuki RM-Z450M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

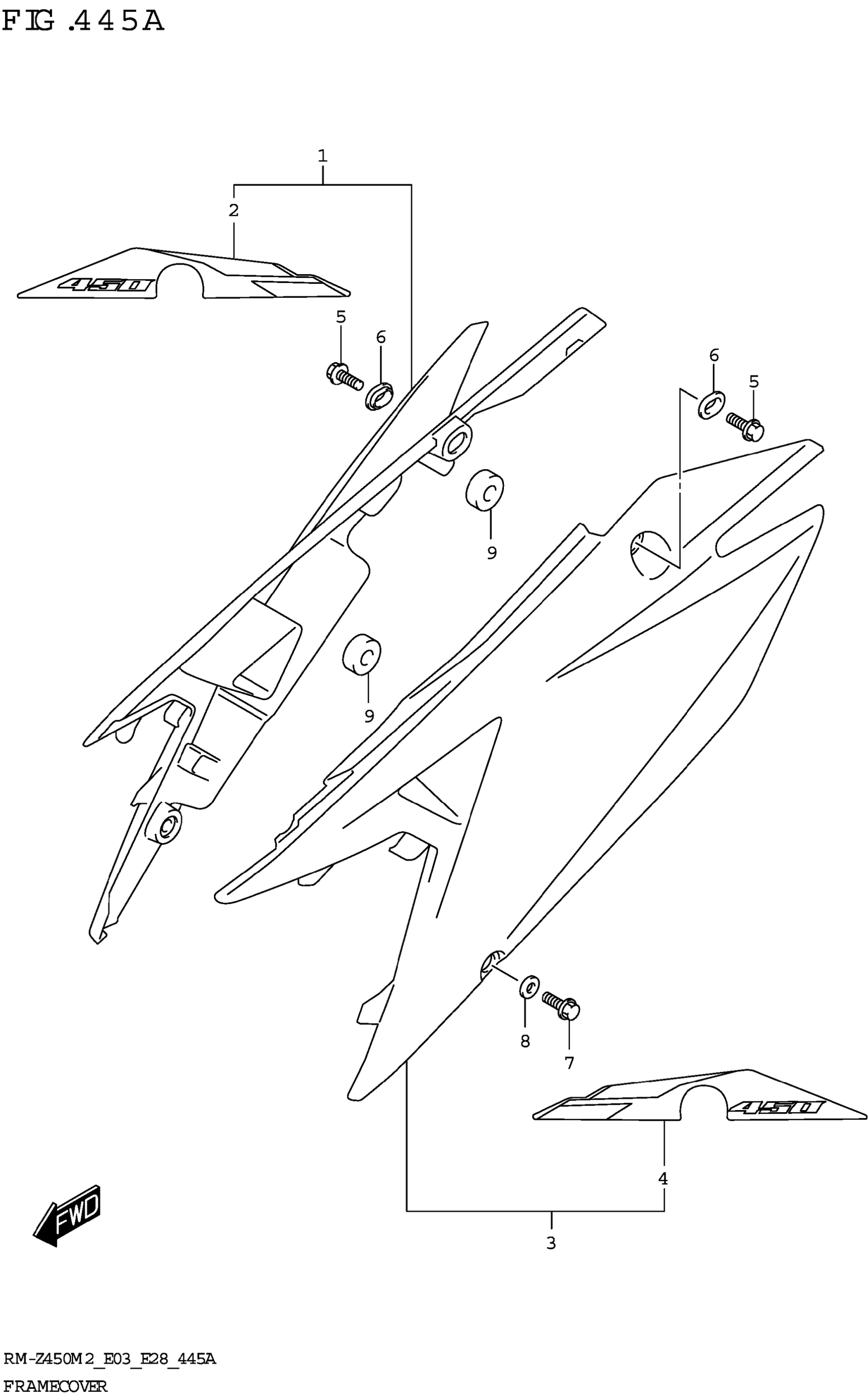

2022 Suzuki RM-Z450M2 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FRAME,R (WHITE)

47110-37K10-30H

1
Out of stock

2

.TAPE,FRAME COVER,R (ORANGE,Y | LLOW,BLACK,WHITE)

68135-37K10-BLE

1
Out of stock

3

COVER,FRAME,L (WHITE)

47210-37K10-30H

1
Out of stock

4

.TAPE,FRAME COVER,L (ORANGE,Y | LLOW,BLACK,WHITE)

68145-37K10-BLE

1
Out of stock

5

BOLT,RADIATOR COVER

47255-37K00

2
Out of stock

6

WASHER,RADIATOR COVER

47192-37K00

2
Out of stock

7

BOLT | FRONT

01547-0616A

2
Out of stock

8

WASHER,FRAME COVER & SEAT | FRONT

47191-28H00

2
Out of stock

9

CUSHION (9X26X14) | RH

47161-08G00

2
Out of stock
