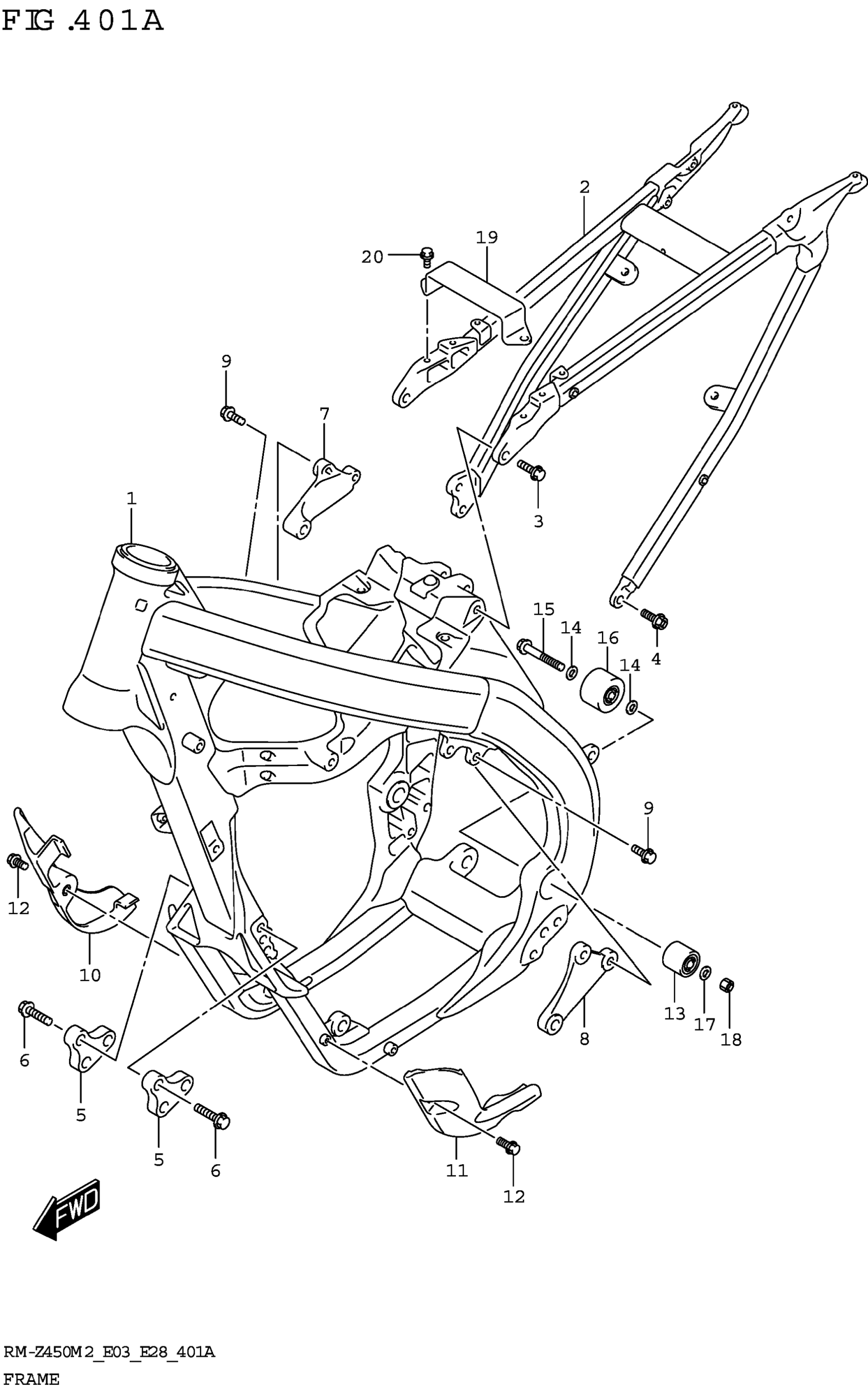

Suzuki RM-Z450M2 (2022) FRAME Diagram

#

Description
Price

1

FRAME This part replaces 41100-37K00.

41100-37K10

$3,436.90

2

RAIL,SEAT

41200-37K00

$874.85

3

BOLT (8X25)

09103-08288

$4.35

4

BOLT (8X20)

09103-08505

$3.90

5

BRACKET,ENG MTG FR

41991-37K00

$60.05

6

BOLT (10X32)

09103-10342

$4.90

7

BRACKET,ENG MTG UPPER,R

41931-37K01

$100.60

8

BRACKET,ENG MTG UPPER,L

41941-37K02

$100.60

9

BOLT (8X20)

09103-08505

$3.90

10

PROTECTOR,FRONT,R

42520-28H11

$22.75

11

PROTECTOR,FRONT,L

42530-28H20

$34.41

12

BOLT (6X25)

09116-06177

$3.05

13

ROLLER,CHAIN

43910-37F00

$77.40

14

SHIM (8X16X1)

09181-08167

$1.98

15

BOLT (8X45)

09103-08207

$2.59

16

ROLLER,CHAIN

43910-37F00

$77.40

17

SHIM (8X12X1)

09181-08111

$1.95

18

NUT

08319-2108A

$2.13

19

BRIDGE,SEAT RAIL UPPER

41542-46K00

$15.87

20

BOLT

01547-0612A

$2.01
