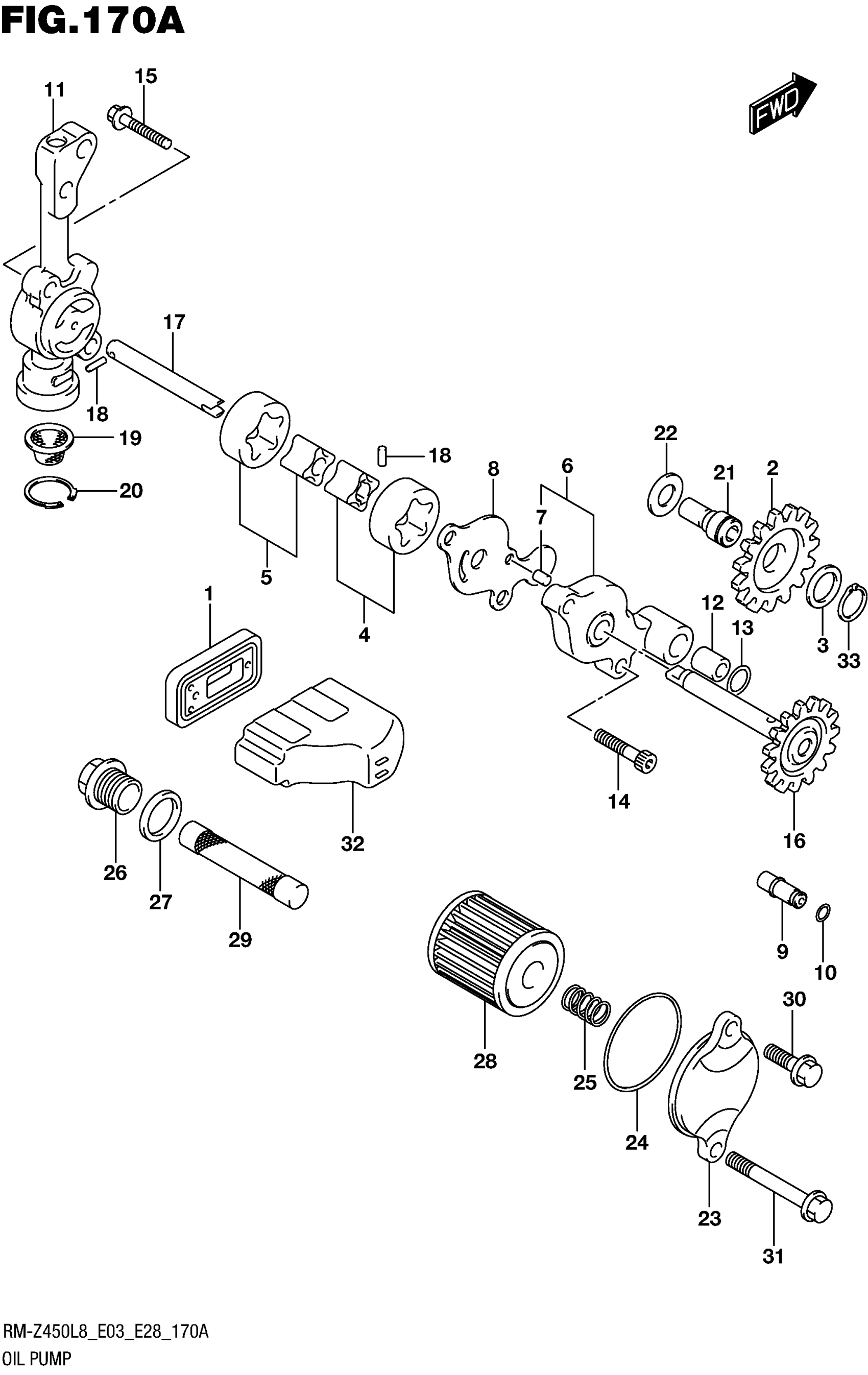

Find the part on the OIL Pump diagram for your 2018 Suzuki RM-Z450L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki RM-Z450L8 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY, OIL REED

13150-28H10

1

$46.95

In stock

2

GEAR,OIL PUMP IDLE (NT:15)

16321-28H00

1
Out of stock

3

SHIM (12X18X0.5)

09181-12130

1
Out of stock

4

ROTOR SET,OIL PUMP NO.1

16410-35G00

1
Out of stock

5

ROTOR SET,OIL PUMP

16410-45G00

1
Out of stock

6

COVER,OIL PUMP NO.1

16430-28H00

1
Out of stock

7

PIN (4X13.8)

04221-04089

1
Out of stock

8

PLATE,OIL PUMP NO.1

16432-35G10

1
Out of stock

9

VALVE ASSY, OIL RELIEF

16440-28H00

1
Out of stock

10

O RING (D:1.2,ID:4.7)

09280-05007

1
Out of stock

11

COVER,OIL PUMP NO.2

16450-28H10

1
Out of stock

12

PIN

04211-09149

1
Out of stock

13

.O RING (D:1.9,ID:8.6)

09280-09005

1
Out of stock

14

BOLT

07130-0520A

2
Out of stock

15

BOLT

01547-0625A

1
Out of stock

16

SHAFT,OIL PUMP DRIVEN GEAR (N

16440-35G10

1
Out of stock

17

SHAFT,OIL PUMP NO.2

16443-28H00

1
Out of stock

18

PIN (2.5X11.8)

09261-02008

2

$1.77

In stock

19

STRAINER,OIL PUMP NO.2

16530-28H00

1
Out of stock

20

CIRCLIP

09381-19003

1
Out of stock

21

SHAFT,OIL PUMP IDLE GEAR

16322-37K00

1
Out of stock

22

WASHER,OIL PUMP IDLE GEAR

16323-37K00

1
Out of stock

23

CAP,ENG OIL FILTER OUTER

16315-35G30

1
Out of stock

24

O-RING (D:2,ID:38.5) This part replaces 09280-39001.

09280-39002

1
Out of stock

25

SPRING

09440-10038

1
Out of stock

26

CAP, ENGINE OIL STRAINER

16316-10H01

1
Out of stock

27

GASKET (16X22X2)

09168-16002

1
Out of stock

28

FILTER, ENGINE OIL

16510-35G00

1
Out of stock

29

STRAINER, ENGINE OIL

16520-10H10

1
Out of stock

30

BOLT

01547-0616A

1
Out of stock

31

BOLT

01547-0640A

1
Out of stock

32

GUIDE,OIL REED VALVE

13158-28H00

1

$19.93

In stock

33

CIRCLIP

08331-3112A

1
Out of stock
