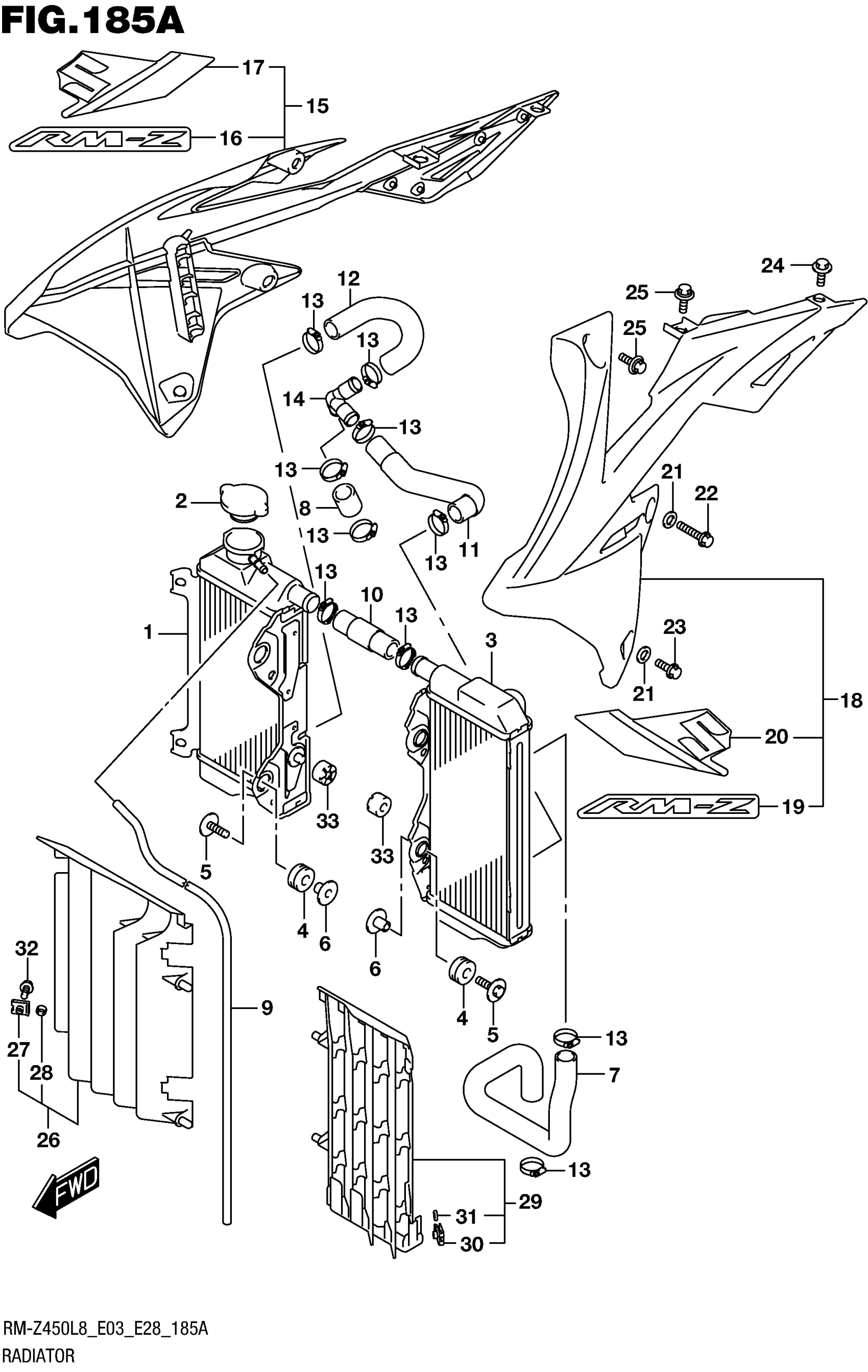

Suzuki RM-Z450L8 (2018) RADIATOR Diagram

#

Description
Price

1

RADIATOR,WATER,R This part replaces 17710-37K00.

17710-37K01

$442.77

2

CAP, RADIATOR

17730-14G00

$39.21

3

RADIATOR,WATER,L This part replaces 17720-37K00.

17720-37K01

$504.17

4

CUSHION, RADIATOR SUPPORT

17787-19A10

$5.62

5

BOLT (6X25)

09116-06186

$2.66

6

SPACER (6.5X10.5X14.1)

09180-06243

$4.92

7

HOSE,RADIATOR INLET This part replaces 17851-37K00.

17851-37K01

$31.73

8

HOSE,RADIATOR OUTLET

17852-37K00

$9.77

9

HOSE (5X8X2000) | L:1000->700 This part replaces 09351-50801-00A.

09351-50803-00B

$8.21

10

HOSE, RADIATOR JOINT UPPER

17853-37K00

$16.87

11

HOSE,RADIATOR JOINT LOWER NO.

17854-37K00

$34.88

11

HOSE,RADIATOR JOINT LOWER NO.

17854-37K00

$34.88

12

HOSE,RADIATOR JOINT LOWER NO.

17855-37K00

$20.10

12

HOSE,RADIATOR JOINT LOWER NO.

17855-37K00

$20.10

13

CLAMP

09402-28513

$6.31

14

JOINT,RDTR OUTLET HOSE

17857-37K00

$74.23

15

COVER ASSY, RADIATOR RH

47207-37K00-GY8

Unavailable

15

(YELLOW/BLACK)

47207-37K00-GY8

Unavailable

16

.EMBLEM, "RM-Z"

68666-37K00-BLC

$11.04

17

.TAPE, RADIATOR COVER RH

68115-37K00-BLB

$25.38

18

COVER ASSY, RADIATOR LH

47208-37K00-GY8

Unavailable

18

(YELLOW/BLACK)

47208-37K00-GY8

Unavailable

19

.EMBLEM, "RM-Z"

68666-37K00-BLC

$11.04

20

.TAPE, RADIATOR COVER LH

68125-37K00-BLB

Unavailable

21

WASHER, RADIATOR COVER

47192-37K00

$6.85

22

BOLT, RADIATOR COVER

47256-37K00

$2.63

23

BOLT, RADIATOR COVER LOWER

47255-37K00

$1.62

24

BOLT, RADIATOR COVER REAR

09111-06251

$2.62

25

BOLT (6X12)

09116-06221

$2.59

26

LOUVER,RADIATOR,R

17801-37K00

$39.72

27

.NUT

09148-06017

$2.93

28

.SPACER (6.2X10X2.2)

09180-06129

$1.47

29

LOUVER,RADIATOR,L

17802-37K00

$44.50

30

.NUT

09148-06017

$2.93

31

.SPACER (6.2X10X2.2)

09180-06129

$1.47

32

BOLT

01547-0610A

$1.47

33

CUSHION, RDTR

17787-37K00
