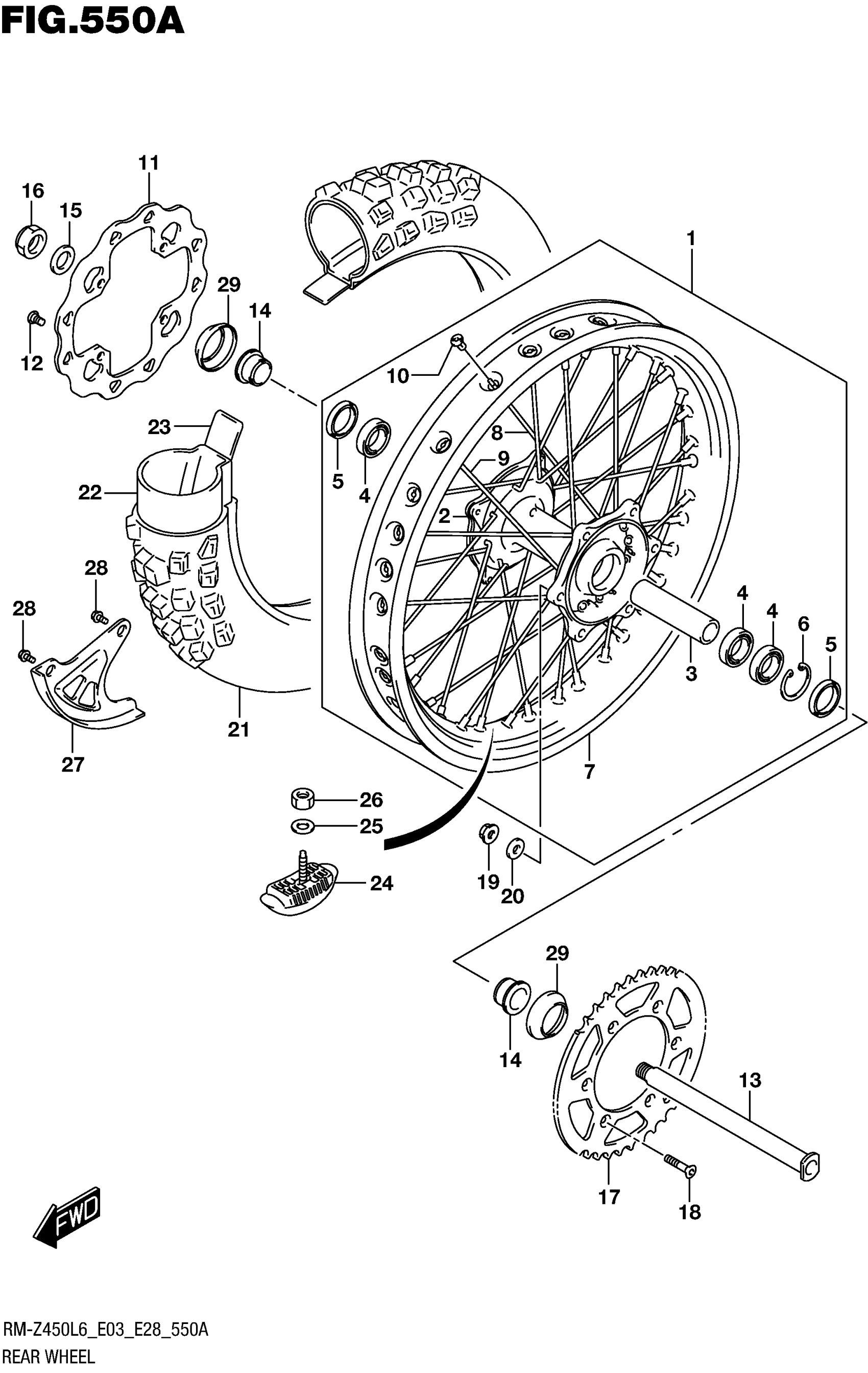

Find the part on the Rear Wheel diagram for your 2016 Suzuki RM-Z450L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki RM-Z450L6 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL ASSY,REAR This part replaces 64100-28H00.

64100-28H01

1
Out of stock

2

.HUB,REAR This part replaces 64111-35G20.

64111-35G30

1
Out of stock

3

.SPACER,RR HUB BEARING

64731-35G01

1
Out of stock

4

.BEARING (25X42X9) This part replaces 09262-25139.

09262-25192

3
Out of stock

5

.SEAL,OIL (32X43X7) This part replaces 09283-32045.

09283-32049

2
Out of stock

6

.CIRCLIP

08331-41429

1
Out of stock

7

.RIM, REAR WHEEL (19X2.15)

65311-35G00

1
Out of stock

8

.SPOKE,RR WHEEL INNER

65321-35G10

18
Out of stock

9

.SPOKE,RR WHEEL OUTER

65322-35G10

18
Out of stock

10

.NIPPLE,RR WHEEL

65325-35G10

36
Out of stock

11

DISC,RR BRAKE

69211-28H10

1
Out of stock

12

SCREW (8X15)

09139-08022

4
Out of stock

13

AXLE,RR

64711-35G10

1
Out of stock

14

SPACER

64751-28H10

2
Out of stock

15

WASHER (22X35X2)

09160-22081

1
Out of stock

16

NUT, REAR AXLE

64721-28H00

1
Out of stock

17-1

SPROCKET,RR (NT:50) | NT:50

64511-36E00

1
Out of stock

17-2

SPROCKET,RR (NT:48) | OPT

64511-37E00

1
Out of stock

17-2

SPROCKET,RR (NT:48) | NT:48

64511-37E00

1
Out of stock

17-3

SPROCKET, REAR (NT:51) | OPT

64511-40261

1
Out of stock

17-3

SPROCKET,RR (NT:51) | NT:51

64511-40261

1
Out of stock

17-4

SPROCKET,RR (NT:49) | OPT

64511-28E00

1
Out of stock

17-4

SPROCKET,RR (NT:49) | NT:49

64511-28E00

1
Out of stock

18

BOLT (8X28)

09120-08017

6
Out of stock

19

NUT

09159-08133

6
Out of stock

20

WASHER (8.5X16X1.2)

09160-08082

6
Out of stock

21

TIRE, REAR (110/90-19 62M) | BRIDGESTONE

65110-28H00

1
Out of stock

22

TUBE ASSY,WHEEL INNER

65200-35G01

1
Out of stock

23

PROTECTOR,WHL INR TUBE

65261-35G01

1
Out of stock

24

STOPPER, BEAD (2.15)

65270-28E00

1
Out of stock

25

WASHER

08322-0108A

1
Out of stock

26

NUT

08310-0008A

1
Out of stock

27

COVER, REAR DISC

69231-37F20

1
Out of stock

28

BOLT (6X12)

09116-06197

2
Out of stock

29

COVER,RR AXLE SPACER

64752-28H00

2
Out of stock
