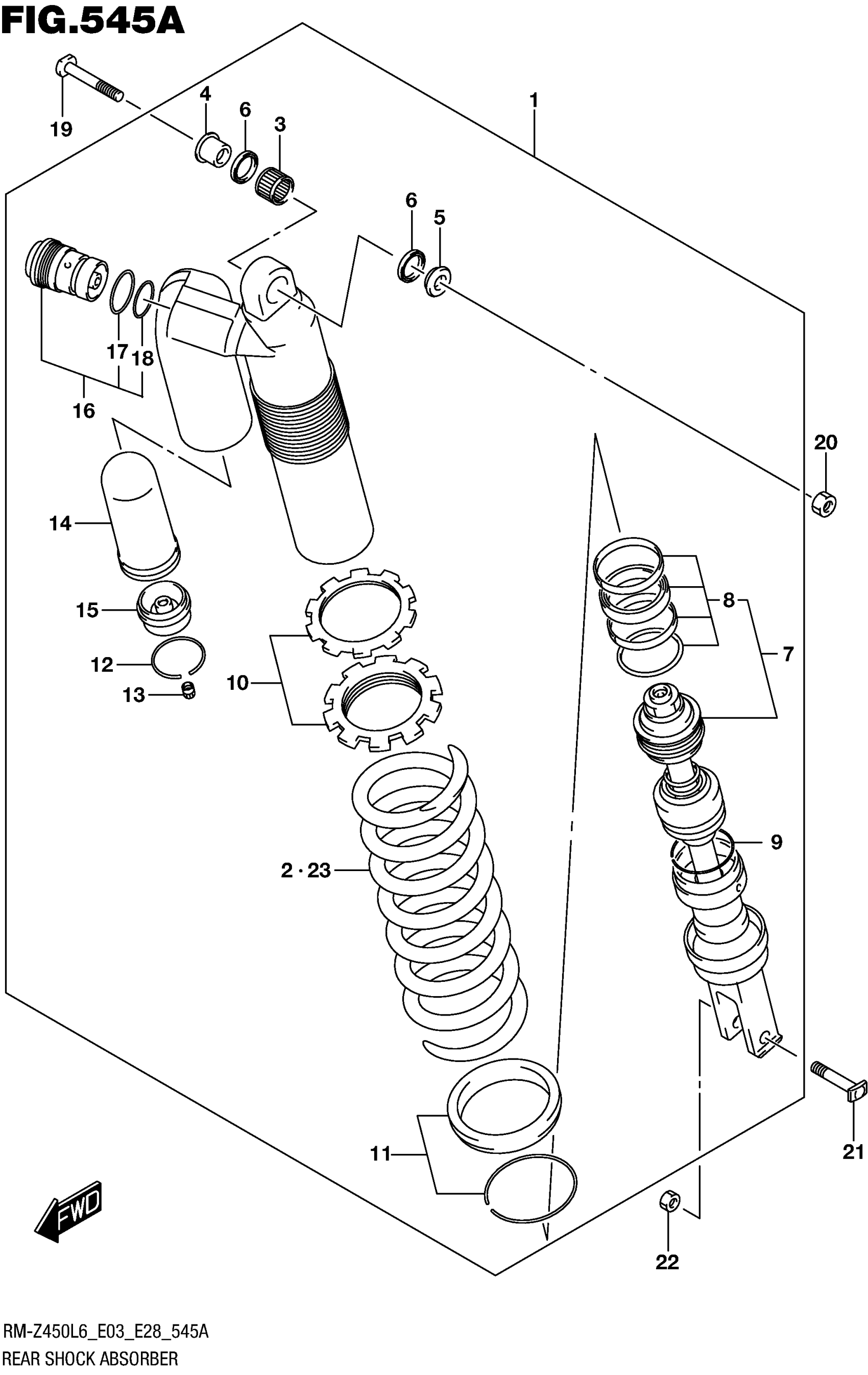

Suzuki RM-Z450L6 (2016) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, RR SHOCK (RED)

62100-28HD0-YKS

$1,706.83

2

.SPRING

62211-28H90

Unavailable

3

.BEARING (16X22X12)

09263-16033

$18.83

4

.SPACER,UPPER BRG,R

62684-36F00

$26.03

5

.SPACER,UPPER BRG,L

62685-36F00

$17.25

6

OIL SEAL (16X22X2.5)

09284-16005

$6.45

7

.ROD, PISTON

62120-28HC0

$869.38

8

..O RING SET

62150-28H60

$131.75

9

.RING, STOPPER

62279-36E80

$5.00

10

.ADJUSTER SET

62190-28H90

Unavailable

11

.SPRING SEAT SET

62220-36F00

$97.10

12

.RING, STOPPER

62278-36E00

$9.70

13

..CAP,AIR VALVE

52194-46686

Unavailable

14

.BLADDER

62273-36E00

$75.30

15

.CAP, CHAMBER

62275-28H30

Unavailable

16

BOLT, PLUG This part replaces 62130-28HC0.

62130-28H60

$191.28

17

..O RING

62131-28E00

$5.63

18

..O RING

51174-36EB0

$6.02

19

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

$11.12

20

NUT

09159-10067

$7.80

21

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$8.45

22

NUT

09159-10067

$7.80

23-1

SPRING (SOFT) | OPT

62211-49H60

Unavailable

23-2

SPRING (HARD) | OPT

62211-35G40

Unavailable
