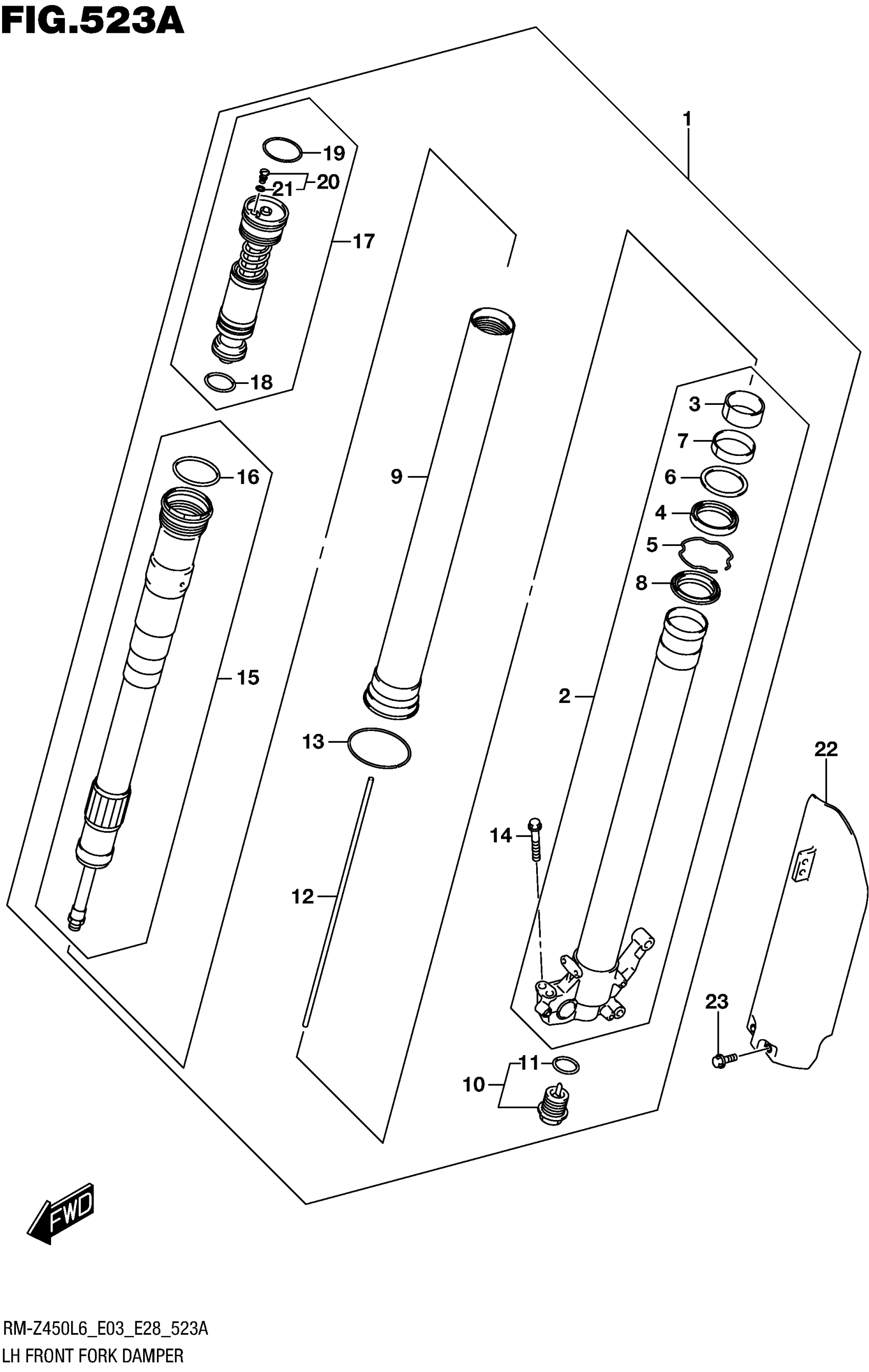

Suzuki RM-Z450L6 (2016) LH FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK LH

51104-28H40

$2,858.97

2

.TUBE, INNER LH

51120-28H40

$667.45

3

..BUSH,SLIDE

51127-28H40

$32.15

4

..SEAL,OIL

51153-36E00

$40.83

5

..RING,STOPPER

51156-36E00

$9.53

6

..SPACER,SEAL

51158-36E00

$10.58

7

..BUSH,GUIDE

51167-28H40

$31.45

8

..SEAL, DUST

51173-28H40

$42.02

9

.TUBE, OUTER

51140-28H40

$656.27

10

.BOLT, CENTER

51170-28H40

$125.60

11

..O-RING

51122-28H40

$4.40

12

.ROD, PUSH

51191-28H30

$16.58

13

.RING,STOPPER

51211-28H40

$15.90

14

BOLT

51328-37F80

$6.94

15

.DAMPER

51190-28H40

Unavailable

16

..O-RING

51118-28H30

$5.48

17

.BOLT, FORK

51350-28H40

Unavailable

18

..O-RING

51175-28H40

$5.65

19

..O-RING

51187-47H00

$6.82

20

..BOLT,PLUG

51357-36F20

$15.77

21

...O-RING

51358-28E30

$4.83

22

PROTECTOR,FRONT FORK,L

51510-28H70

$116.52

23

BOLT (6X10)

09111-06098

$3.30
