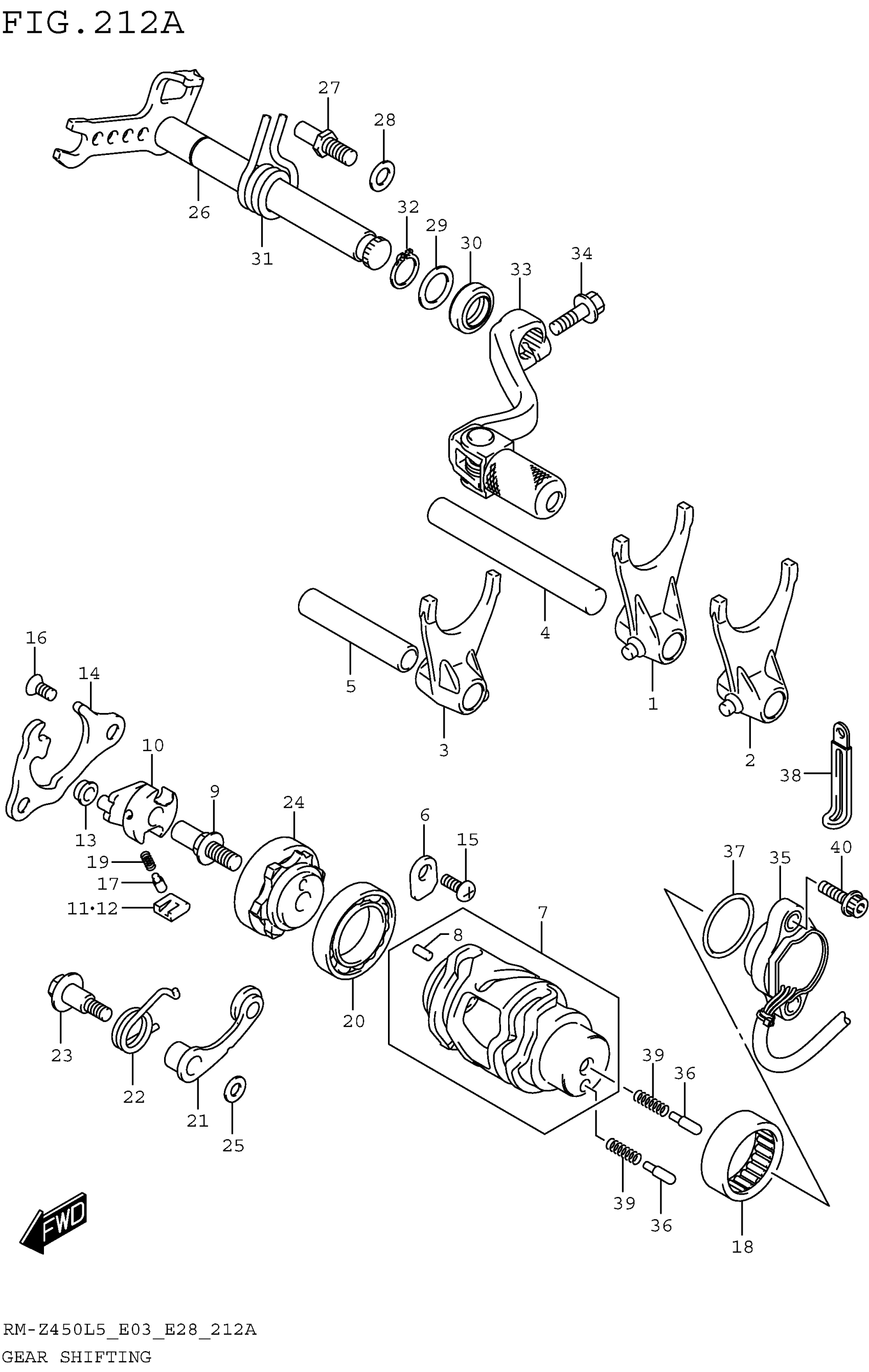

Suzuki RM-Z450L5 (2015) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-28H00

$97.63

2

FORK,GEAR SHIFT NO.2

25221-28H00

$100.95

3

FORK,GEAR SHIFT NO.3

25231-28H00

$99.52

4

SHAFT, GEAR SHIFT FORK NO.1

25411-37F20

$25.08

5

SHAFT, GEAR SHIFT FORK NO.2

25421-27C01

$20.82

6

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.80

7

CAM,GEAR SHIFT This part replaces 25310-28H20.

25310-28H21

$157.02

8

PIN (4X13.8)

04221-04089

$1.10

9

PIN, SHIFT CAM DRIVEN GEAR

25313-37F00

$16.67

10

SHIFTER, GEAR SHIFT CAM

25322-28H00

$73.01

11

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

12

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

13

ROLLER,GEAR SHIFT CAM SHIFTER

25325-28H00

$14.00

14

LIFTER,GEAR SHIFT PAWL

25331-28H00

$26.50

15

SCREW (6X12)

09125-06122

$2.54

16

SCREW (6X12)

09126-06011

$2.01

17

PIN

09209-05023

$2.73

18

BEARING (25X32X12)

09263-25018

$19.30

19

SPRING

09440-04003

$1.48

20

BEARING

08140-68050

$65.57

21

STOPPER, GEAR SHIFT CAM

25350-28H00

$24.18

22

SPRING,GEAR SHIFT CAM STOPPER

25355-28H20

$6.22

23

BOLT,SHIFT CAM STOPPER

25357-28H00

$8.87

24

PLATE,GEAR SHIFT CAM STOPPER This part replaces 25381-49H00.

25381-49H10

$51.35

25

WASHER

08211-06121

$1.56

26

SHAFT,GEAR SHIFT

25510-28H10

$98.68

27

STOPPER, GEAR SHIFT ARM

25671-10H00

$6.75

28

SHIM (8.8X14X1)

09181-08139

$1.92

29

SHIM (14X20X1)

09181-14139

$2.66

30

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

31

SPRING

09444-20011

$7.75

32

CIRCLIP

08331-3114A

$1.89

33

LEVER ASSY,GEAR SHIFT

25600-28H01

$105.02

34

BOLT

01547-0620A

$2.01

35

BASE ASSY,GEAR SHIFT TERM

37730-49H00

$140.85

36

PIN (5X15.5)

09209-05011

$2.02

37

O RING (D:2.4,ID:26.2)

09280-26005

$2.31

38

CLAMP (L:45)

09404-06429

$1.82

39

SPRING

09440-04010

$1.52

40

BOLT

07120-0516A

$1.72
