2014 Suzuki RM-Z450L4 Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 2014 Suzuki RM-Z450L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

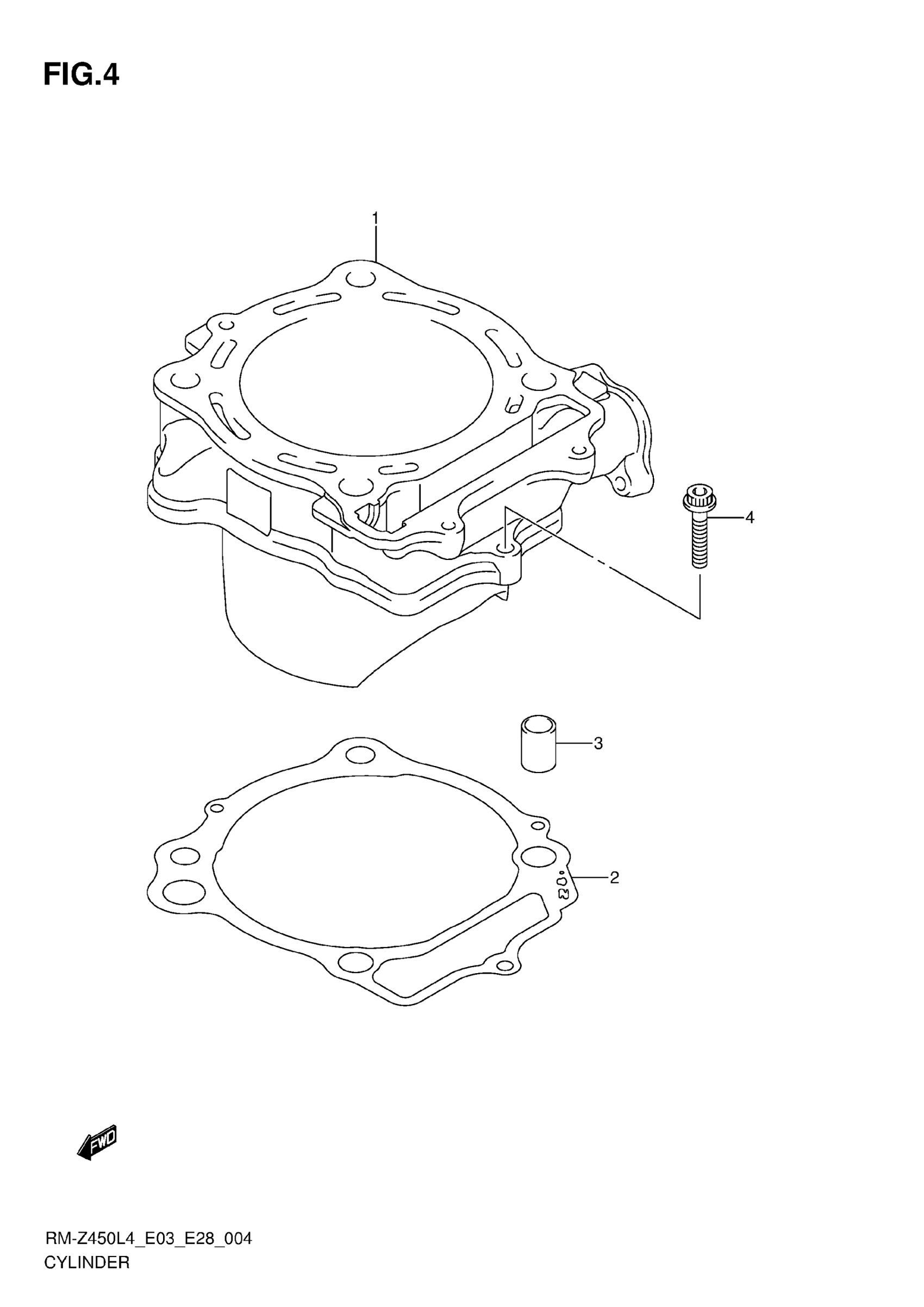

2014 Suzuki RM-Z450L4 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER This part replaces 11211-28H10-0F0.

11211-28H11-0F0

1
Out of stock

2

.GASKET,CYLINDER

11241-28H10

1
Out of stock

3

PIN

04211-13189

2
Out of stock

4

BOLT

07120-0630A

1
Out of stock
← Crankshaft Cylinder Head →
