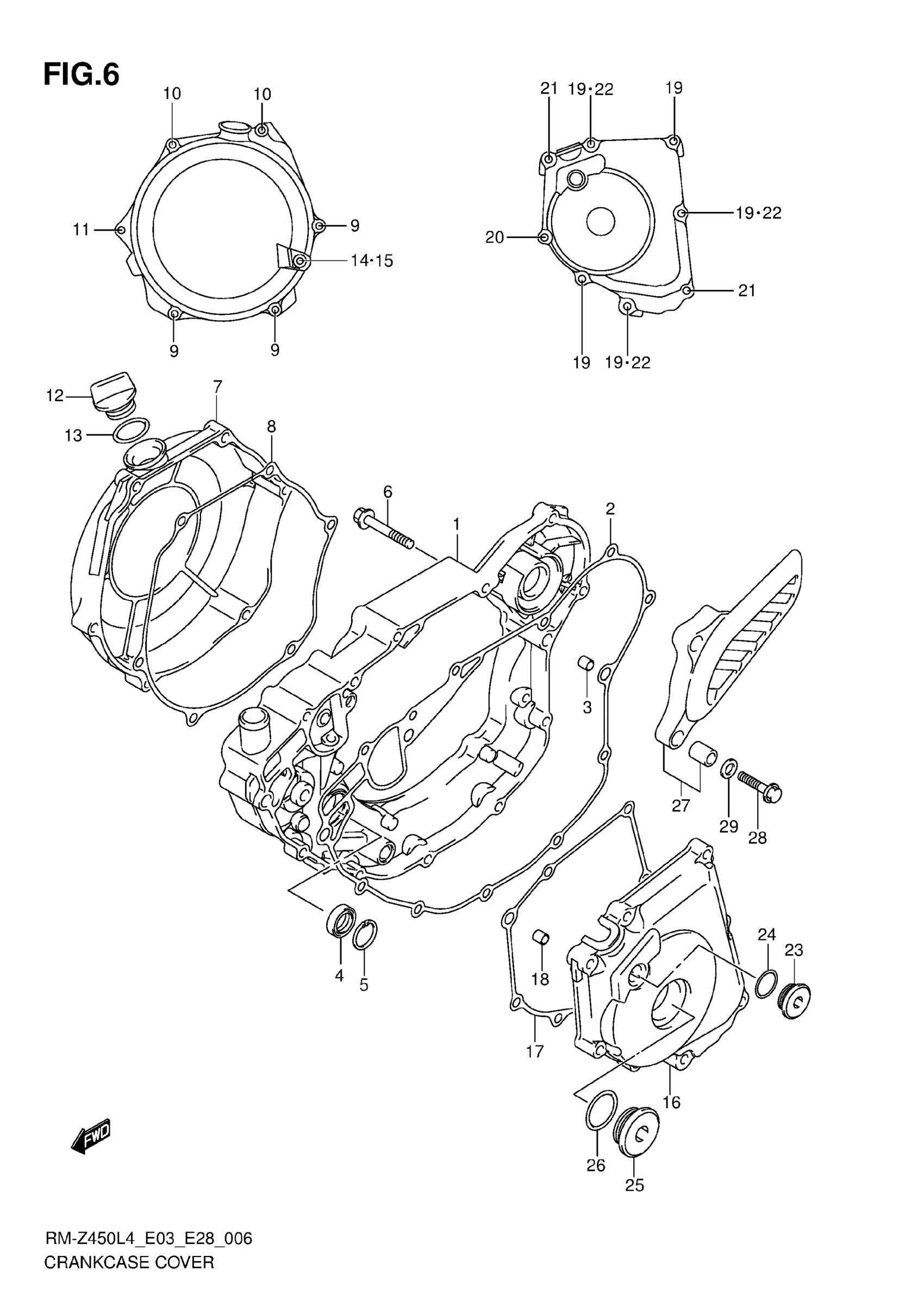

Suzuki RM-Z450L4 (2014) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-28H10

$275.40

2

.GASKET,CLUTCH COVER

11482-28H00

$22.99

3

PIN

04211-09149

$1.70

4

SEAL,OIL (12X22X6)

09282-12012

$19.53

5

CIRCLIP

08331-41249

$2.31

6

BOLT

01547-0625A

$2.09

7

COVER,CLUTCH OUTER

11371-02J00

$254.50

8

.GASKET,CLUTCH COVER OUTER

11484-28H00

$15.18

9

BOLT

01547-0625A

$2.09

10

BOLT

01547-0665A

$2.42

11

BOLT

01547-0670A

$2.80

12

PLUG

09259-20008-XC0

$6.97

13

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

14

SCREW (6X10)

09139-06055

$1.47

15

GASKET (6.2X11X1.2)

09168-06004

$1.46

16

COVER,MAGNETO

11351-28H02

$339.90

17

.GASKET,MAGNETO COVER

11483-28H00

$12.35

18

PIN

04211-09149

$1.70

19

BOLT

01547-0625A

$2.09

20

BOLT

01547-0630A

$2.38

21

BOLT

01547-0635A

$2.38

22

GASKET (5.8X13X1.2)

09168-06023

$2.09

23

PLUG (12X9)

09248-12007

$5.49

24

O RING (D:1.9,ID:9.8)

09280-10016

$3.13

25

PLUG (26X9)

09259-26011

$10.26

26

O RING (D:3.1,ID:22.7)

09280-22008

$2.10

27

COVER, ENGINE SPROCKET

11360-35G00

$31.68

28

BOLT (6X30)

09103-06297

$3.58

29

WASHER

08322-0106B

$2.31
