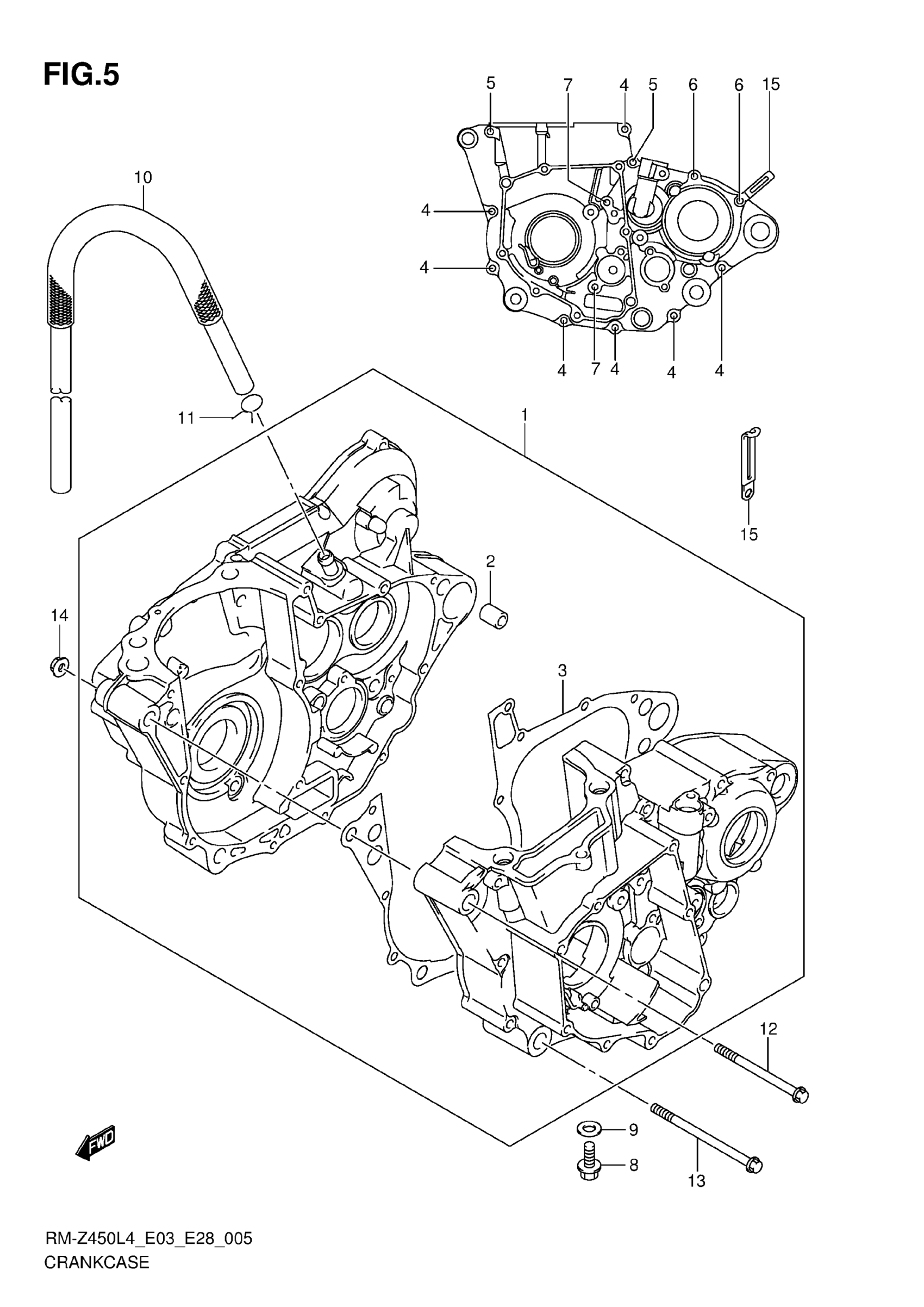

Suzuki RM-Z450L4 (2014) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11301-28870.

11301-28871

$1,065.23

2

PIN (10.4X13X18)

09206-13020

$2.44

3

.GASKET,CRANKCASE

11481-28H00

$20.66

4

BOLT

01547-0655A

$2.53

5

BOLT

01547-0665A

$2.42

6

BOLT

01547-0675A

$3.67

7

BOLT

01547-0680A

$3.58

8

BOLT (8X20) | OIL DRAIN

09103-08393

$2.57

9

GASKET (8.2X14X1)

09168-08016

$1.70

10

HOSE,BREATHER This part replaces 11332-49H10.

11332-49H11

$25.25

11

CLIP

09401-13301

$2.95

12

BOLT (10X135)

09103-10403

$17.21

13

BOLT (10X125)

09103-10446

$12.23

14

NUT

09159-10122

$8.53

15

CLAMP (L:45)

09404-06429

$1.88
