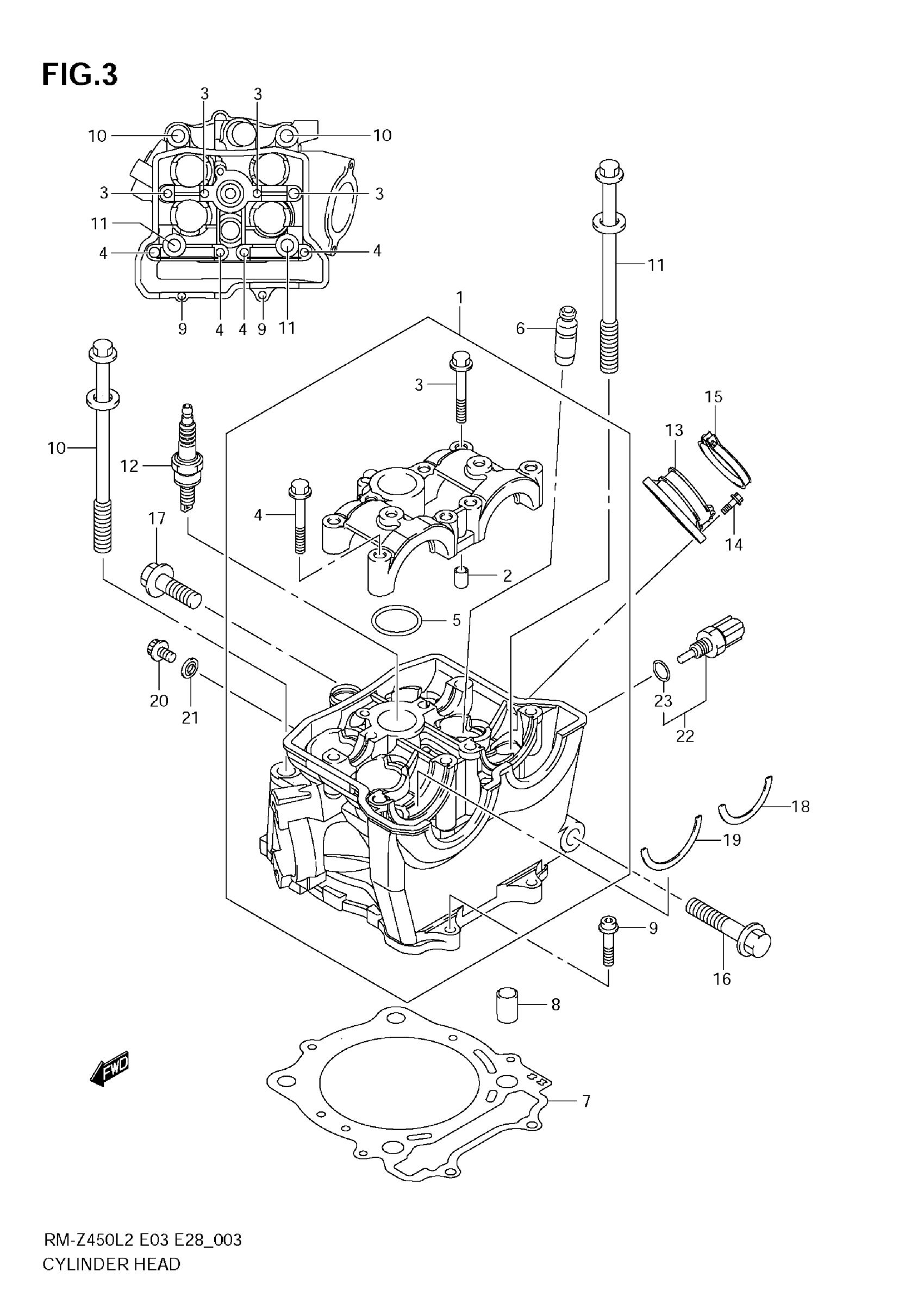

Suzuki RM-Z450L2 (2012) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER This part replaces 11100-28H10.

11100-28H12

$843.62

2

PIN

09206-08001

$1.77

3

BOLT (6X40)

09103-06266

$2.13

4

BOLTG (6X45)

09103-06293

$2.55

5

O RING (D:2.4,ID:25.7)

09280-26007

$5.97

6

GUIDE,VALVE (OS:0.3) | OPT

11115-45G70

$30.37

7

.GASKET,CYLINDER HEAD

11141-28H00

$30.20

8

PIN

04211-13189

$2.19

9

BOLT

07120-0625A

$2.50

10

BOLT,CYLINDER HEAD (L:140)

11117-28H00

$15.11

11

BOLT,CYLINDER HEAD (L:120)

11161-45G00

$8.52

12

PLUG,SPARK (DIMR8C10) This part replaces 09482-00600.

09482-00660

$29.36

13

PIPE ASSY,INTAK This part replaces 13101-28H00.

13101-28H01

$91.67

14

BOLT

01547-06207

$2.01

15

CLAMP, INTAKE PIPE This part replaces 13170-35G00.

13170-35G01

$17.63

16

BOLT (10X43) | LH

09103-10116

$7.68

17

BOLT (10X30) | RH

09103-10359

$4.70

18

C RING, INTAKE

12749-35G01

$3.26

19

C RING, EXHAUST

12749-10H00

$3.92

20

.BOLT

07120-0610A

$2.58

21

GASKET (5.8X13X1.2)

09168-06023

$2.01

22

SENSOR, WATER TEMP

13650-14G00

$48.98

23

.O RING

13655-14G00

$10.48
