2012 Suzuki RM-Z450L2 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2012 Suzuki RM-Z450L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

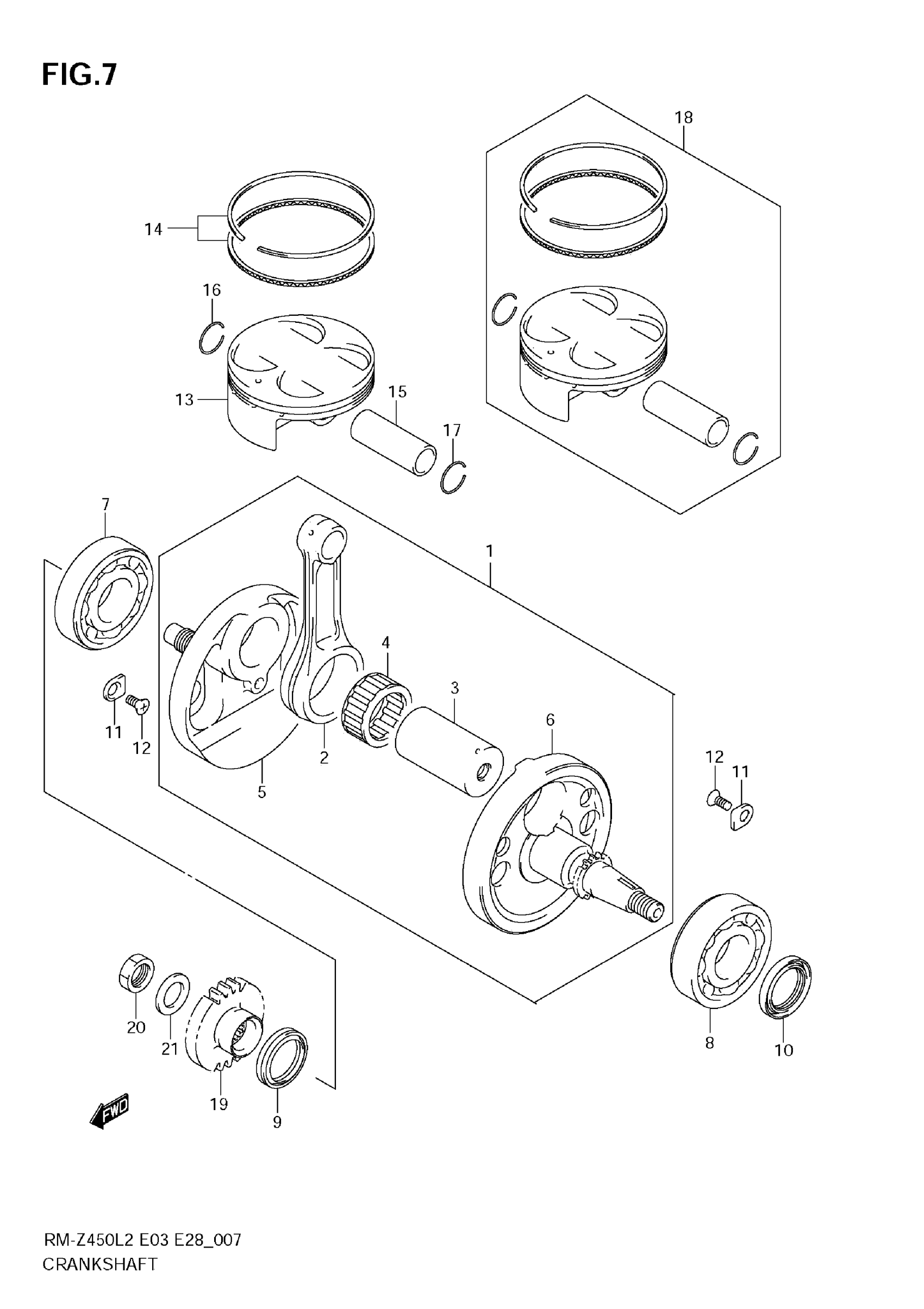

2012 Suzuki RM-Z450L2 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-28H12

1
Out of stock

2

ROD, CONNECTING

12160-28H00-0B0

1
Out of stock

3

PIN

12210-35G03

1
Out of stock

4

BEARING (34X42X20)

09263-34014-0B0

1
Out of stock

5

CRANKSHAFT, RH

12220-28H10

1
Out of stock

6

CRANKSHAFT, LH

12261-28H10

1
Out of stock

7

BEARING (30X72X19) | RH

09262-30115

1
Out of stock

8

BEARING (32X75X20) | LH

09262-32017

1
Out of stock

9

SEAL,OIL (30X40X7) | RH This part replaces 09283-30061.

09283-30076

1
Out of stock

10

SEAL,OIL | LH This part replaces 09283-32037.

09283-32044

1
Out of stock

11

RETAINER

24741-20A00

4
Out of stock

12

SCREW (6X12)

09126-06011

4
Out of stock

13

PISTON

12111-28H10-0F0

1
Out of stock

14

RING SET,PISTON

12140-28820

1
Out of stock

15

PIN, PISTON

12151-35G01

1
Out of stock

16

RING,SNAP

09381-19001

1
Out of stock

17

CIRCLIP

09381-19005

1
Out of stock

18

PISTON KIT | OPT

12110-28830

1
Out of stock

19

GEAR,PRIMARY DRIVE (NT:24)

21111-28H00

1
Out of stock

20

NUT

09140-16036

1
Out of stock

21

WASHER

09164-16002

1
Out of stock
