2012 Suzuki RM-Z450L2 Crankcase Cover Diagram

← All diagrams

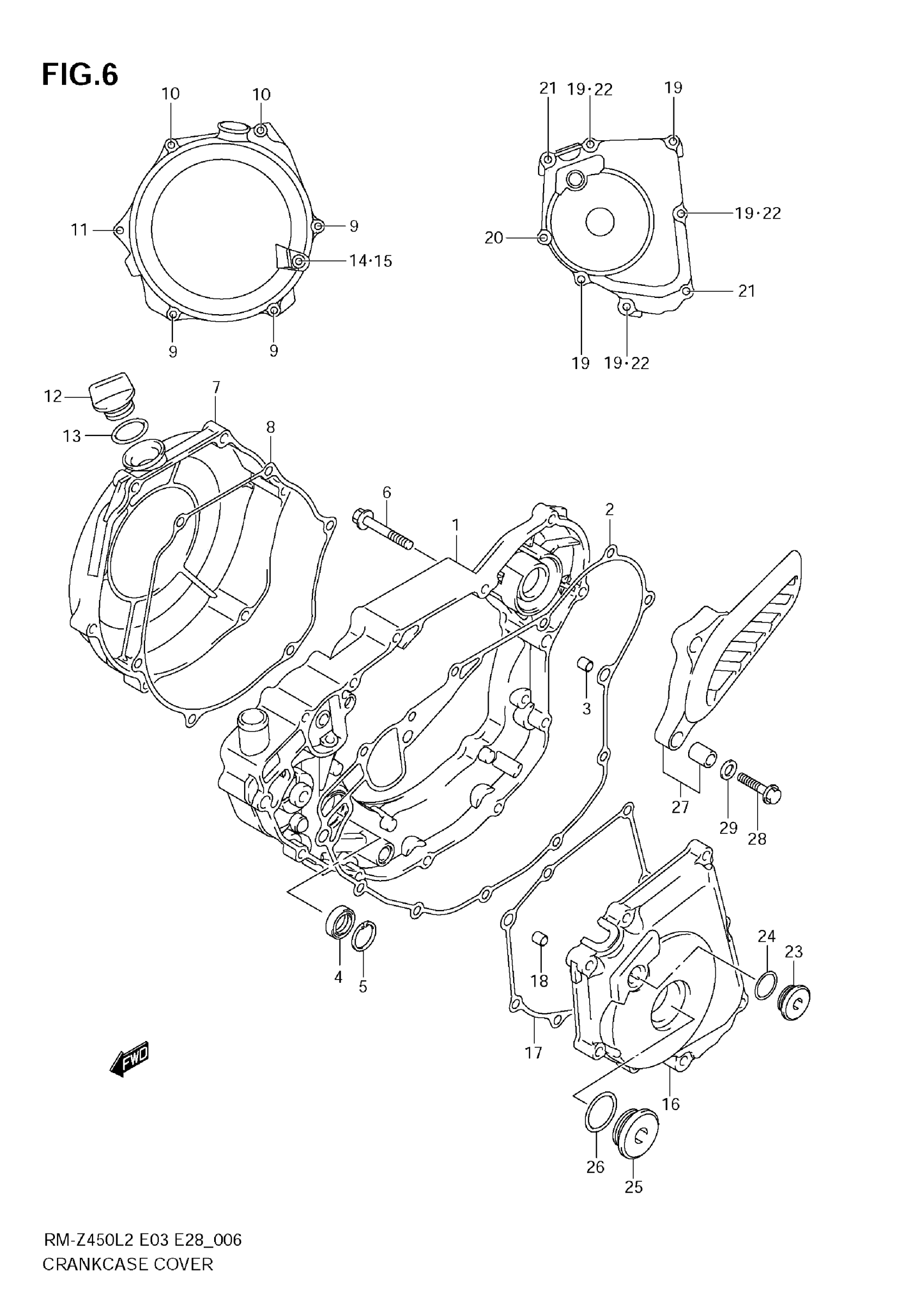

Find the part on the Crankcase Cover diagram for your 2012 Suzuki RM-Z450L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki RM-Z450L2 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH This part replaces 11340-28H00.

11340-28H10

1
Out of stock

2

.GASKET,CLUTCH COVER

11482-28H00

1
Out of stock

3

PIN

04211-09149

2
Out of stock

4

SEAL,OIL (12X22X6)

09282-12012

1
Out of stock

5

CIRCLIP This part replaces 08331-4124A.

08331-41249

1
Out of stock

6

BOLT

01547-0625A

7
Out of stock

7

COVER,CLUTCH OUTER

11371-02J00

1
Out of stock

8

.GASKET,CLUTCH COVER OUTER

11484-28H00

1
Out of stock

9

BOLT

01547-0625A

3
Out of stock

10

BOLT

01547-0665A

2
Out of stock

11

BOLT

01547-0670A

1
Out of stock

12

PLUG, OIL FILLER

09259-20008-XC0

1
Out of stock

13

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

14

BOLT (6X10)

09139-06055

1
Out of stock

15

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

16

COVER,MAGNETO

11351-28H02

1
Out of stock

17

.GASKET,MAGNETO COVER

11483-28H00

1
Out of stock

18

PIN

04211-09149

2
Out of stock

19

BOLT

01547-0625A

5
Out of stock

20

BOLT

01547-0630A

1
Out of stock

21

BOLT

01547-0635A

2
Out of stock

22

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock

23

PLUG

09248-12007

1
Out of stock

24

O RING (D:1.9,ID:9.8)

09280-10016

1
Out of stock

25

PLUG

09259-26011

1
Out of stock

26

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

27

COVER, ENGINE SPROCKET

11360-35G00

1
Out of stock

28

BOLT (6X30)

09103-06297

2
Out of stock

29

WASHER

08322-0106B

2
Out of stock
