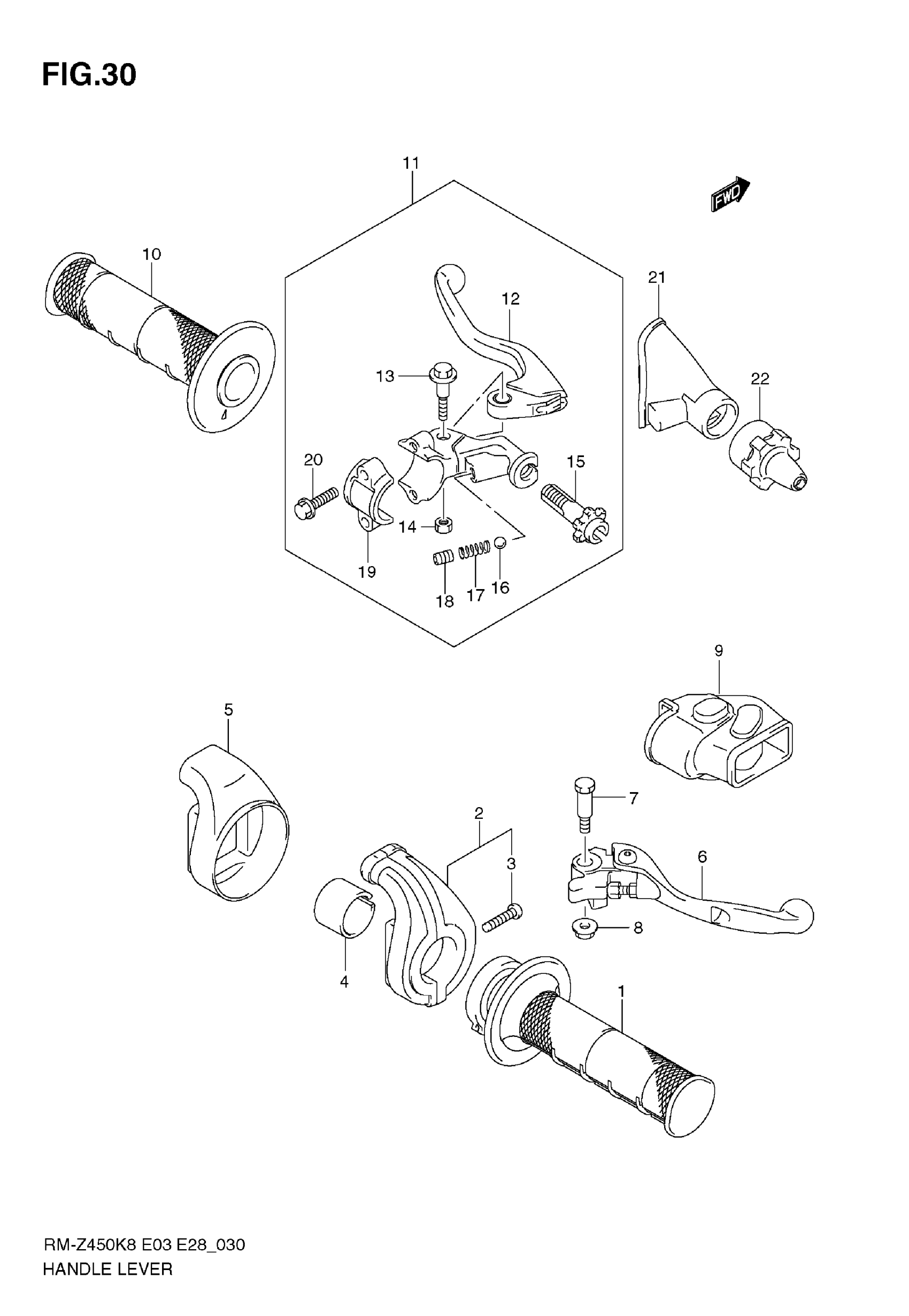

Suzuki RM-Z450 (2009) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-28H00

$85.15

2

CASE ASSY,THROTTLE | Includes Item(s) 3 This part replaces 57100-10H00.

57100-10H01

$124.42

3

SCREW

57141-35G00

$8.73

4

COLLAR, CASE

57151-35G00

$10.07

5

COVER, THROTTLE CASE

57129-35G00

$16.72

6

LEVER, BRAKE

57310-37F00

$32.49

7

BOLT, BRAKE LEVER

57431-14500

$5.75

8

NUT

08316-1006B

$2.50

9

COVER, BRAKE LEVER

57343-35G00

$21.48

10

GRIP,L

57211-28H00

$23.02

11

LEVER ASSY, CLUTCH | Includes Item(s) 12 - 20

57500-28H00

$181.72

12

LEVER, CLUTCH

57621-35G10

$19.83

13

BOLT, PIVOT

57431-35G00

$38.98

14

NUT

08310-00057

$1.83

15

ADJUSTER, CABLE

57441-37F00

$153.90

16

BALL

06111-06003

$1.24

17

SPRING

09440-04003

$1.48

18

SCREW

09134-06009

$2.58

19

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$28.93

20

.BOLT, BRACKET

57513-29F10

$7.03

21

COVER,CLUTCH LEVER This part replaces 57341-28H00.

57341-28H01

$12.08

22

COVER,CLUTCH ADJUSTER This part replaces 57342-37F00.

57342-37F01

$8.63
